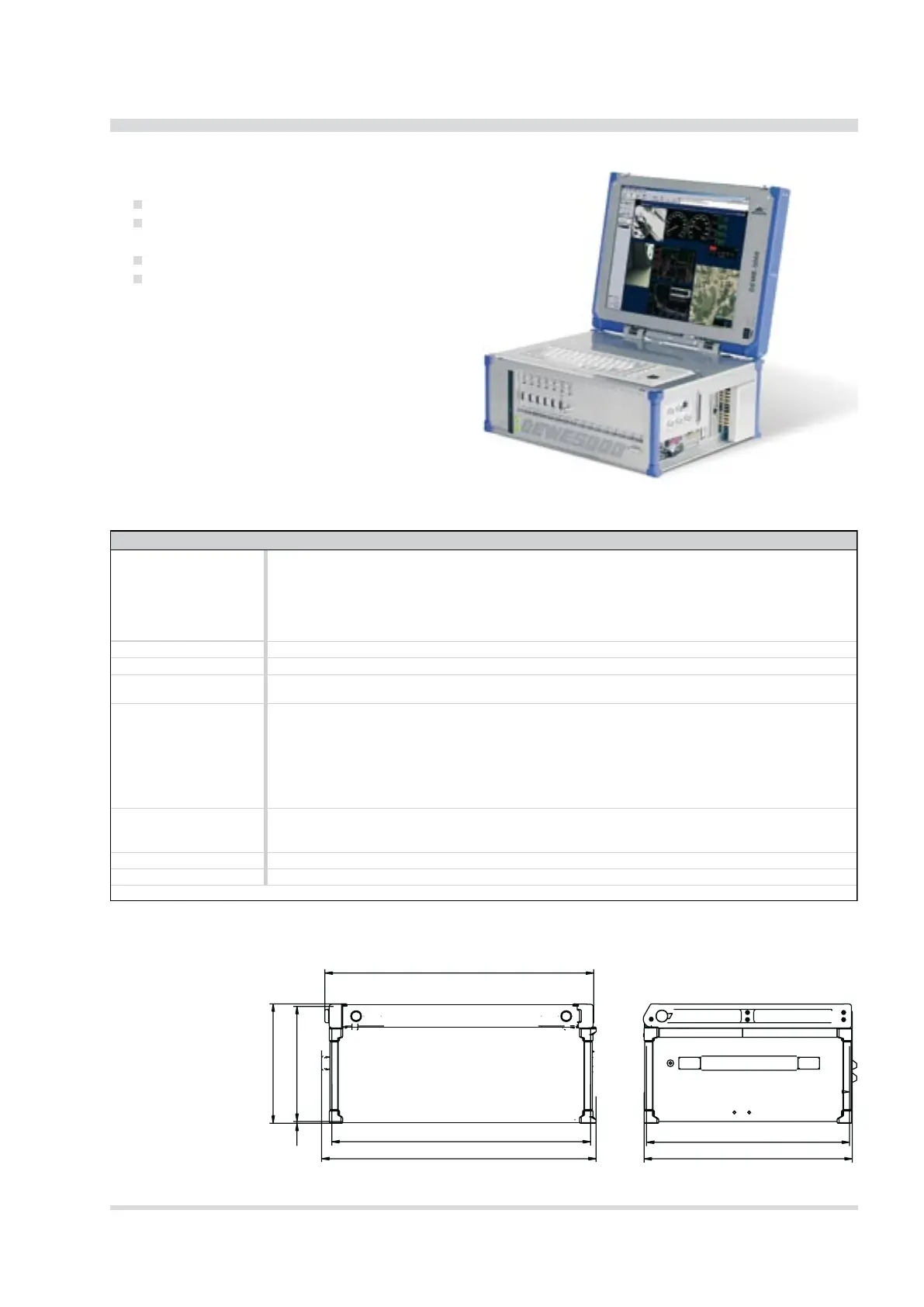

Dewetron DEWE-5000 - Main System; System Specifications

17
463
200
351
1933
436
453
342
DE-M040302E • DEWE-5000 • Technical Reference Manual • Printing version 2.2.3 • January 19, 2012
Main System
System specications
DEWE-5000 PC instrument series
Portable data acquisition system
Up to 256 channels with external
expansion racks or PAD modules
A/D converter specs see appendix A
16 internal slots for DEWE-DAQ/PAD modules
Main System
Dimensions*
* Dimensions in mm
(1 inch = 25.4 mm)
DEWE-5000
Power supply:
option 5000-PS-BAT:
 400 W AC ATX power supply MPM-842P
 400 W AC ATX power supply BEA-640
 300 W DC ATX power supply DX-300HEW
 300 W DC ATX power supply APT-DY300H
 320 W DC ATX power supply XP-04 with DC-123
for details see next pages
Operating temperature: -5 °C to 50 °C (standard)
Storage temperature: -20 °C to +70 °C
Humidity (operating): 10 % to 80 %, non condensing
5 % to 95 %, rel. humidity
Vibration*: MIL-STD 810F 514.5 procedure I
operating test procedure
frequency range: 5 to 200 to 5 Hz; 5 x 12 min each direction
displacement amplitude ±3.5 mm (5 to 8.45 Hz)
acceleration amplitude 1 g (8.45 to 92 Hz)
displacement amplitude 92 to 113 Hz: ±0.029 mm
acceleration amplitude 1.5 g (113 to 200 Hz)
Shock*: MIL-STD 810F 516.5 procedure I
non operating test procedure
½ sinus 11 ms 10 g, 3 shocks positive, 3 shocks negative
Dimensions (W x D x H): approx. 453 x 200 x 351 mm (17.8 x 7.9 x 13.8 in.)
Weight:
typ. 17 kg (37.4 lbs), depending on con guration
*) tested with SSD disc
