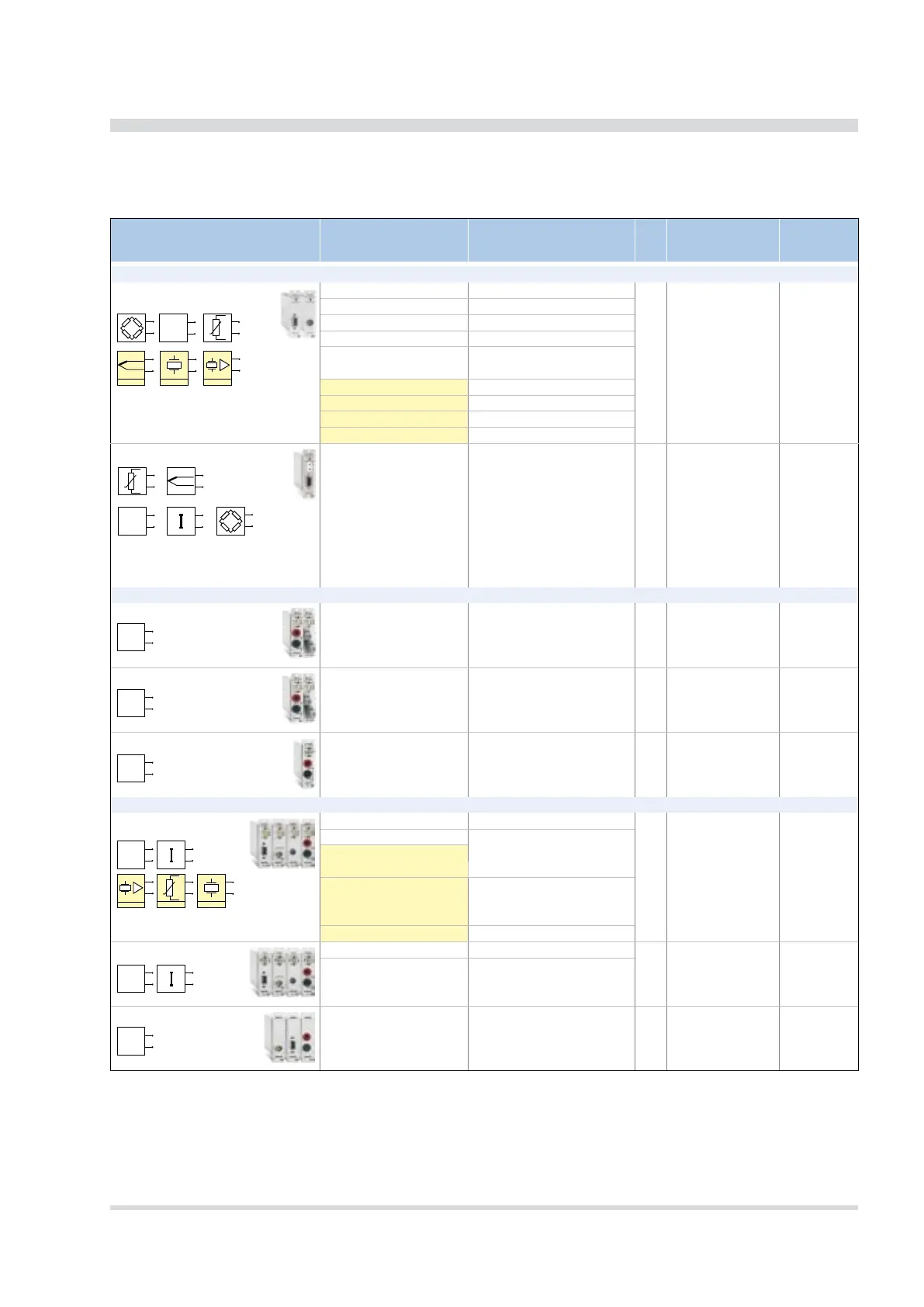

Module Input type Ranges TEDS
Bandwidth (BW),
Filters (LP = lowpass,
HP = highpass)
Isolation (ISO),
Overvoltage
protection (OP)
Universal measurement
DAQP-STG Strain gauge, bridge sensors ±0.1 to ±1000 mV/V (@ 5 VDC
exc
)
BW: 300 kHz ISO: 350 V
DC
Piezoresistive bridge ±0.5 to 10000 mV/mA (@ 1 mA
exc
) LP: 10 Hz to 300 kHz OP: ±50 V
DC
Voltage ±500 µV to ±10 V
Resistance 25 mΩ to 100 kΩ
Pt100, Pt200, Pt500, Pt1000, -200° C to 850° C
Pt2000
IEPE
®
via MSI-BR-ACC ±2.5 to ±10000 mV
Thermocouple via MSI-BR-TH-x full range of TC type
Charge via MSI-BR-CH-50 up to 50000 pC
Voltage via MSI-BR-V-200 up to ±200 V
DAQP-MULTI Thermoresistors
Pt100, Pt200, Pt500, Pt1000 and
Pt2000, free programmable range
BW: 3 kHz
LP: 3, 10, 30, 100, 300,
1000 Hz
ISO: 1 kV
RMS
Thermocouple
Type K, J, T, R, S, N, E, B, L, C, U
free programmable range
Resistance 1 Ohm to 1 MOhm
Piezoresistive bridge
Voltage
Current (with external shunt)
13 ranges (±0.5 to 5000 mV/mA)
10 ranges from ±5 mV to ±5 V
depending on external shunt
High voltage measurement
DAQP-HV High voltage ±20 to ±1400 V - BW: 300 kHz ISO: 1.8 kV
RMS
LP: 10 Hz to 300 kHz
DAQP-HV-S3 High voltage ±20 to ±1400 V - BW: 700 kHz ISO: 1.8 kV
RMS
LP: 10 Hz to 700 kHz
DAQP-DMM High voltage ±10 to ±1000 V - BW: 20/30 kHz ISO: 1.5 kV
RMS
LP: 10 Hz to 30 kHz
Voltage & current measurement
DAQP-LV Voltage
±10 mV to ±50 V
BW: 300 kHz
ISO: up to
1 kV
RMS
OP: 350 V
DC
Current with external shunt 20 mA / 5 A LP: 10 Hz to 300 kHz
IEPE
®
via MSI-V-ACC ±10 mV to 10 V
Pt100, Pt200, Pt500, Pt1000, -200° C to 1000° C and
Pt2000 and resistance via 0 to 6.5 kOhm
MSI-V-RTD
Charge via MSI-V-CH-50 up to 50000 pC
DAQP-V Voltage 10 mV to 50 V - BW: 50 kHz
ISO: up to 1
kV
RMS
Current with external shunt 20 mA / 5 A LP: 10 Hz to 50 kHz
OP: ±500 V
DC
DAQN-AIN Voltage ±10 V (1:1 input) - - OP: < ±500 V
(jumper
selectable)
