OUT

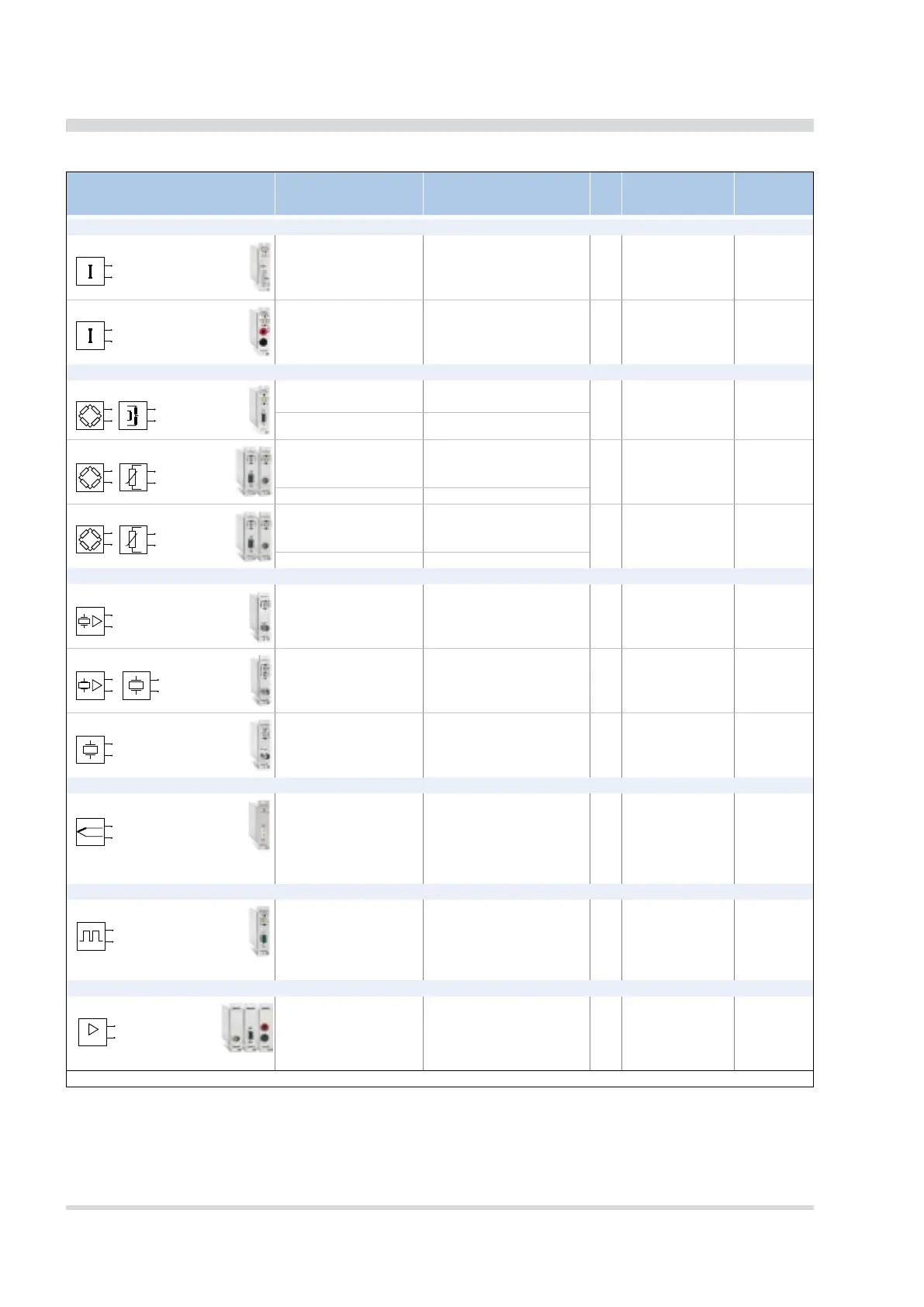

Module Input type Ranges TEDS
Bandwidth (BW),
Filters (LP = lowpass,
HP = highpass)
Isolation (ISO),
Overvoltage
protection (OP)
Current measurement
DAQP-LA-SC Current 0.1 A to 30 A peak - BW: 300 kHz ISO: 1.4 kV
RMS
Note: 5 A
RMS
continuous max. 5 A
RMS
contin. current LP: 10 Hz to 300 kHz
DAQP-LA-B Current 2 mA to 600 mA - BW: 300 kHz ISO: 1.4 kV
RMS
Note: typ. 20 mA application LP: 10 Hz to 300 kHz
Bridge / strain gauge and carrier frequency ampli er
DAQP-CFB AC bridge, strain gauge Bridge: 0.1 to 1000 mV/V - BW: DC to 2.3 kHz OP: ±10 V
DC
Note: 5 kHz sine wave excitation
LP: 10 Hz to 1 kHz
Inductive sensors, LVDT Inductive: 5 to 1000 mV/V
DAQP-BRIDGE-A Strain gauge, bridge sensors ±1 to ±50 mV/V (@ 5 VDC) - BW: 20 kHz ISO: 350 V
DC
LP: 10 Hz to 20 kHz OP: ±10 V
DC
Potentiometric sensors 200 Ω to 10 kΩ
DAQP-B RIDGE-B Strain gauge, bridge sensors ±0.1 to ±100 mV/V (@ 5 VDC)
1)
BW: 200 kHz OP: ±10 V
DC
LP: 10 Hz to 200 kHz
Potentiometric sensors 200 Ω to 10 kΩ
Charge / IEPE
®
measurement
DAQP-ACC-A IEPE
®
sensors ±50 mV to ±5 V - BW: 0.5 Hz to 300 kHz -
LP: 1 to 300 kHz
HP: 0.5 Hz and 5 Hz
DAQP-CHARGE-A Charge sensors Charge: 5 to 50000 pC - BW: 0.1 Hz to 50 kHz -
IEPE
®
sensors IEPE
®
: ±5 mV to 5 V LP: 100 Hz to 50 kHz
Note: selectable integration and
double integration
HP: 0.1 Hz to 10 Hz
DAQP-CHARGE-B Charge sensors ±100 to ±1 000 000 pC - BW: DC to 100 kHz ISO: 350 V
DC
LP: 10 Hz to 100 kHz
Note: selectable time constant
HP: DC, 0.001 Hz to
0.5 Hz
for static sensors
Temperature measurement
DAQP-THERM Thermocouple
Type K, J, T, R, S, N, E, B, L, C and
U selectable
-
BW: 3 kHz
LP: 3, 10, 30, 100, 300,
1000 Hz
ISO: 1 kV
RMS
Note: internal CJC and
linearisation
free programmable range
Frequency measurement
DAQP-FREQ-A Frequency 100 Hz to 200 kHz - BW: according to range ISO: 350 V
DC
Output response:
1.5 ms
30 ms
500 ms
Voltage output module
DAQN-V-OUT Voltage output 1:1 output module with isolation - BW: 400 Hz ISO: 240 V
DC
Input voltage: ±10 V
Output voltage: ±10 V
1)
TEDS support for DAQP-BRIDGE-B revision 2 only
