8514-296-001 REV A page 52
4.9 Control Menu:
The Control menu allows for the user to observe important technical information for the
control. No changes can be made at this menu. See below for detailed information on
each sub menu.
1. “Serial Number”: This is the control serial number.
2. “MAC Address”: The MAC Address is a unique identifier designated to the control
by the manufacturer. It allows the control to be recognized by network routers.
3. “IP Address”: The IP Address is the identifier given to the control by a network
system.
4. “M Firmware”: The M Firmware is the Main Firmware currently loaded onto the
control.
5. “S Firmware”: The S Firmware is the Secondary Firmware currently loaded onto
the control.
6. “C Firmware”: The C Firmware is the Communications Firmware currently loaded
onto the control.

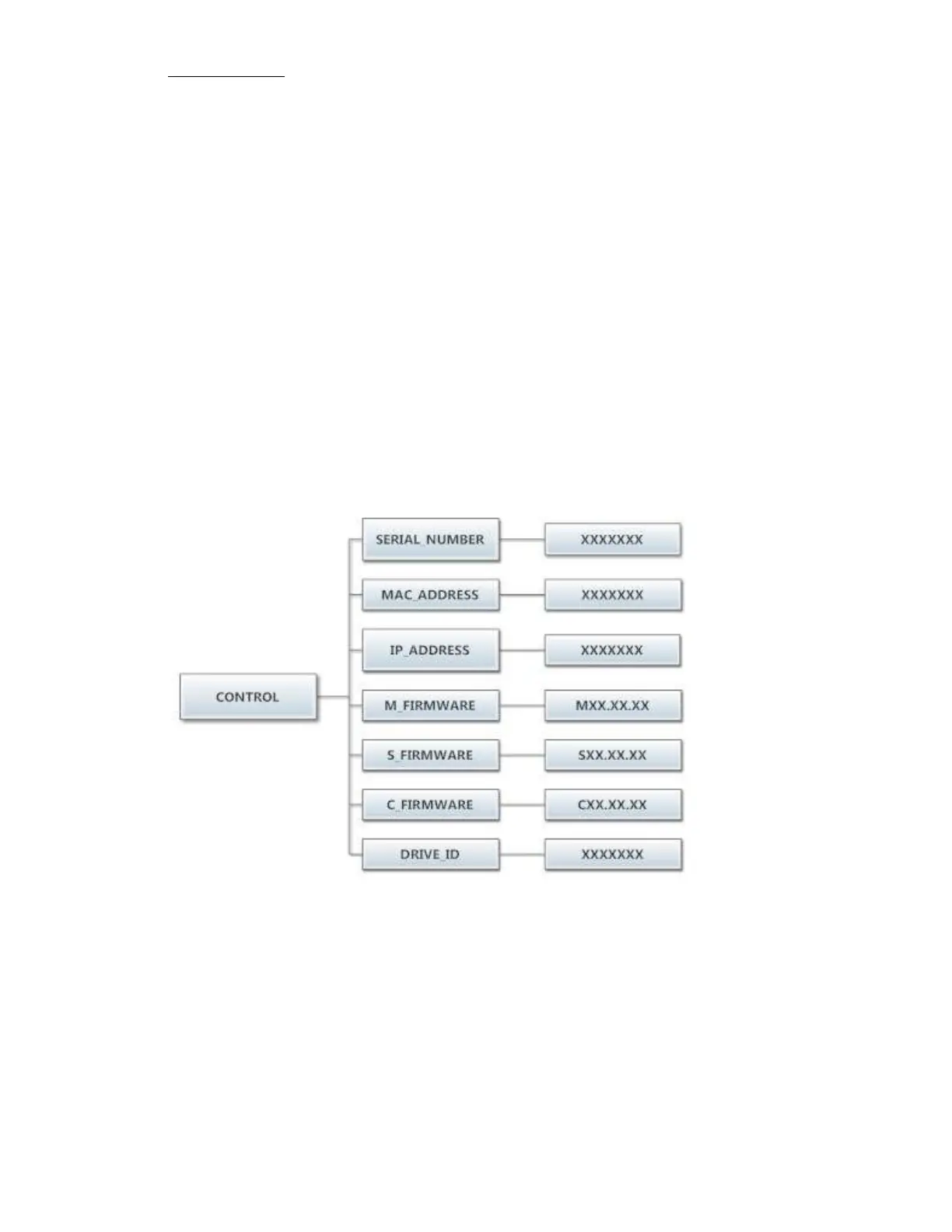

The figure below shows the sub menu options for Control:
