Dexter Laundry A Series Operator's Manual

8514-296-001 REV A page 54

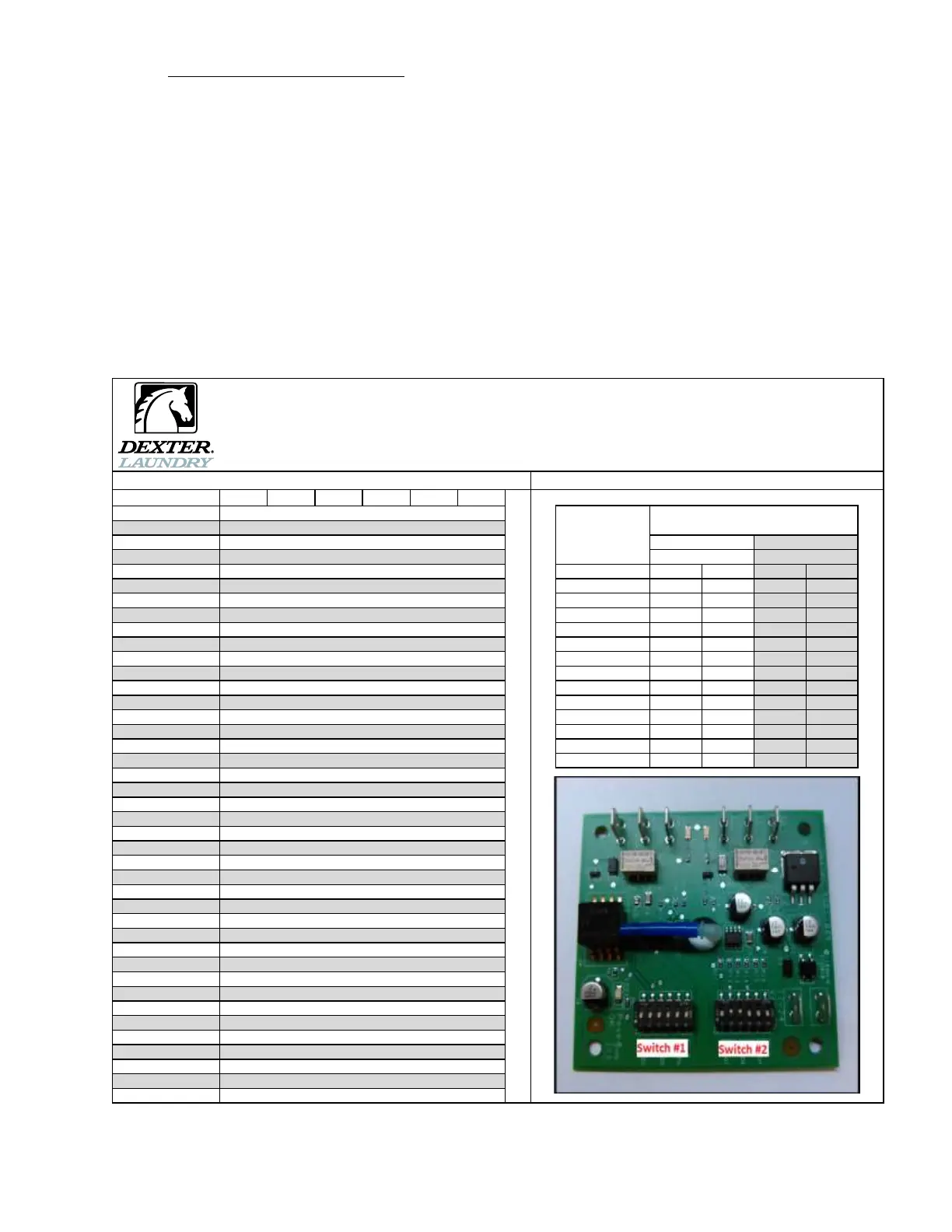

4.13 WATER LEVEL ADJUSTMENT
The water level of all baths can be adjusted by changing the switch
settings on the electronic pressure sensor. Vended washers are shipped
with the pressure sensor harness connected to Switch #1 and factory set
for an energy-efficient water level. Switch #2 is factory set for the classic
water level. To use Switch #2, move the org/yel wire from the terminal
marked 21 to the terminal marked 31 and move the red wire from the
terminal marked 22 to the terminal marked 32.
Water level adjustments can also be made in 1/4” (6 mm) increments by
adjusting the switch positions for the desired level. It is not recommended
for the water level to be set above the factory Switch #2 settings. Refer
to the following chart for the switch settings and the factory default
settings:
Pos 1 Pos 2 Pos 3 Pos 4 Pos 5 Pos 6
5.00 (127) off off off off off off
5.25 (133) on off off off off off
5.50 (140) off on off off off off
5.75 (146) on on off off off off
6.00 (152) off off on off off off T-300
5.25
(133)
7.00
(178)
6.25 (159) on off on off off off T-350
5.25
(133)
6.25
(159)
6.50 (165) off on on off off off T-350 SWD
5.25
(133)
6.25
(159)
6.75 (171) on on on off off off T-400
7.00
(178)
9.00
(229)
7.00 (178) off off off on off off T-450
6.00
(152)
6.25
(159)
7.25 (184) on off off on off off T-450 SWD
5.00
(127)
7.00
(178)
7.50 (191) off on off on off off T-600
7.25
(184)
9.25
(235)
7.75 (197) on on off on off off T-650
6.50
(165)
8.25
(210)
8.00 (203) off off on on off off T-750
6.00
(152)
7.50
(191)
8.25 (210) on off on on off off T-750 SWD
9.25
(235)
11.75
(298)
8.50 (216) off on on on off off T-900
6.00
(152)
7.50
(191)
8.75 (222) on on on on off off T-950
6.00
(152)
7.50
(191)
9.00 (229) off off off off on off T-1200
6.00
(152)
7.50
(191)
9.25 (235) on off off off on off T-1450
6.75
(171)
7.00
(178)
9.50 (241) off on off off on off
9.75 (248) on on off off on off
10.00 (254) off off on off on off
10.25 (260) on off on off on off
10.50 (267) off on on off on off
10.75 (273) on on on off on off
11.00 (279) off off off on on off
11.25 (286) on off off on on off
11.50 (292) off on off on on off
11.75 (298) on on off on on off
12.00 (305) off off on on on off
12.25 (311) on off on on on off
12.50 (318) off on on on on off
12.75 (324) on on on on on off
13.00 (330) off off off off off on
13.25 (337) on off off off off on
13.50 (343) off on off off off on
13.75 (349) on on off off off on
14.00 (356) off off on off off on
14.25 (362) on off on off off on
14.50 (368) off on on off off on
14.75 (375) on on on off off on
15.00 (381) off off off on off on
Model
Water Level Chart
Factory Settings:
Switch Positions:
Vended
Switch #1 Effiecient
Inches (mm)
Switch #2 Classic
Inches (mm)
Depth inches (mm):
