8514-219-001 REV E PAGE 12
NOTE: The A-weighted emission sound pressure level does not exceed 70dB(A). The operator
does not need hearing protection.
NOTE: The dryer does not emit hazardous radiation.
WARNING: To avoid potential risks of spontaneous combustion of a load, remove the
load quickly after the completion of the cycle or in case of failure of power supply.
DANGER: Do not dry loads which may create an explosive atmosphere in the dryer.
DRYER SHUTDOWN
To render the dryer inoperative, disconnect electrical supply to the dryer.
DIAMETER TO INCREASE AS SHOWN
WALL
INSTALL NO
SCREEN OR
COVER
EXHAUST AIR
(SEE INSTRUCTIONS)
DRYER DUCTS
MUST ENTER AT
A 45° ANGLE
INCHES
(MM)
INSPECTION
COVER

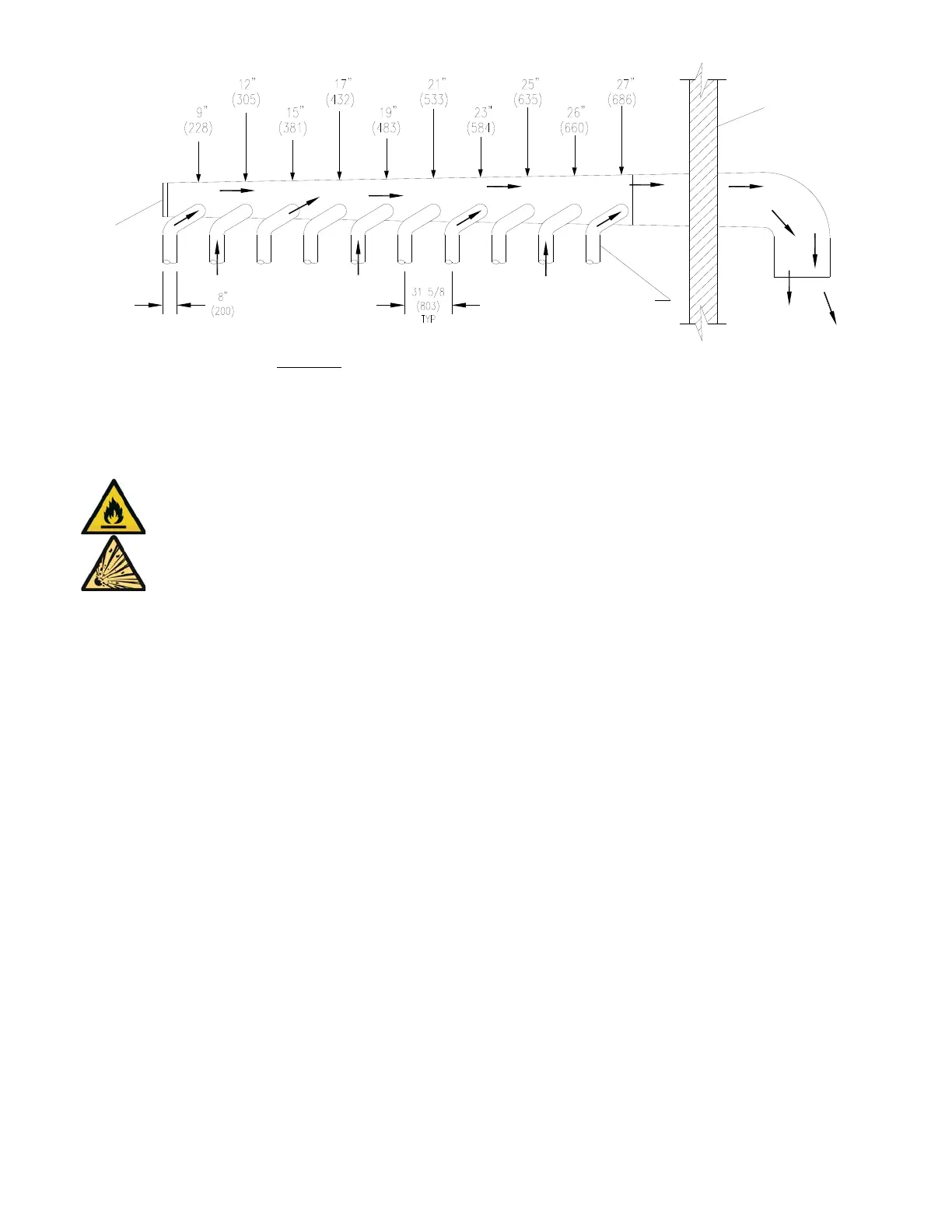

FIGURE 3- Dryer Exhausting Using A Main Discharge Duct.
