8514-234-001 REV N page 28

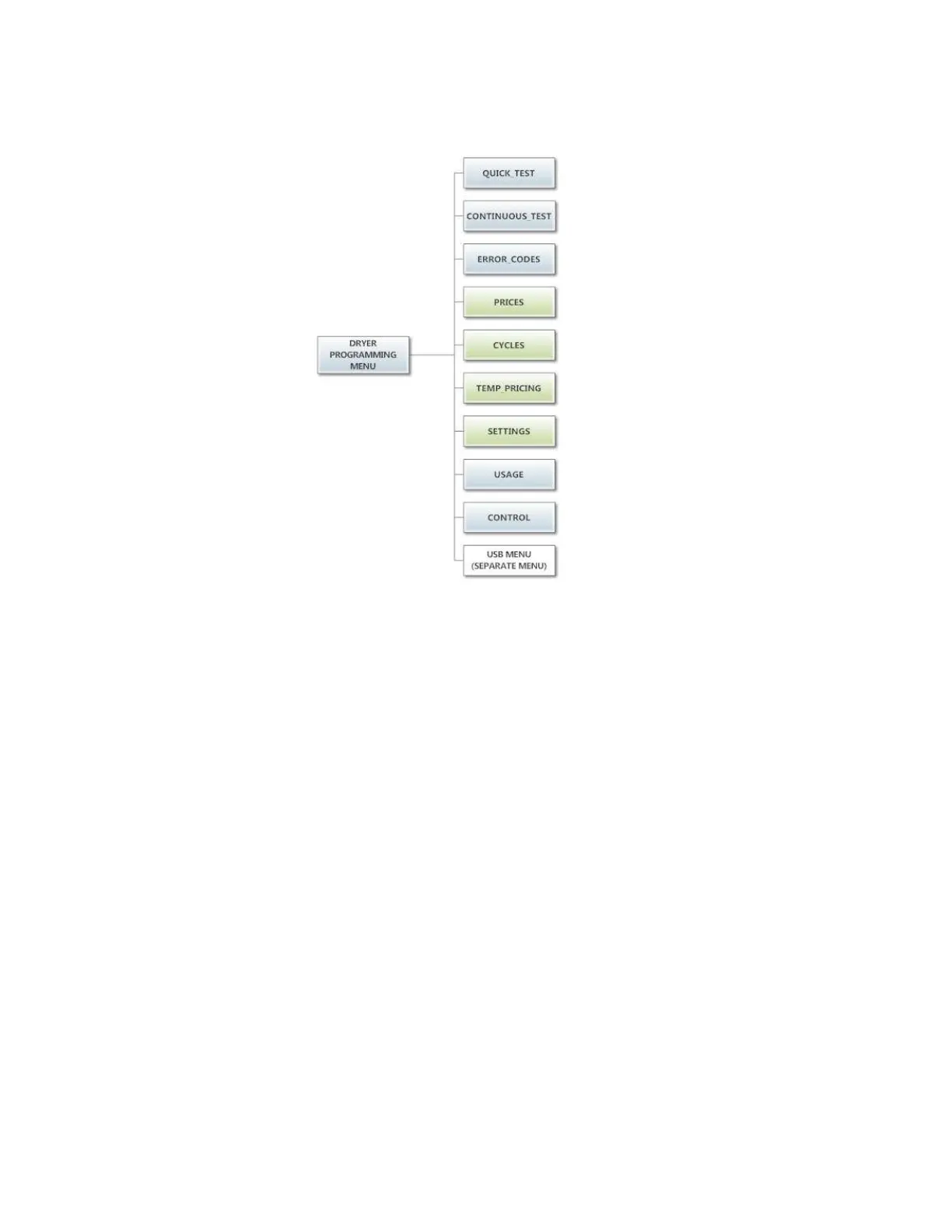

The figure below shows the top level menu. Choosing an option from the top level menu will then display the
next level of options (the sub menu).
Quick Test Option:
When the Quick Test Option is chosen, the dryer will begin a shortened dry cycle without the displayed vend
price being met. The purpose of this shortened cycle is to test all major components for proper operation.
Error Codes should all function normally during this test. The display will show customer prompts in a similar way
to a normal dry cycle.
Continuous Test Option:
Similar to the Quick Test, when the Continuous Test Option is chosen, the dryer will begin a dry cycle without the
displayed vend price being met. However, in this case, it will be a continuously-running cycle. It will not time out
after any designated amount of time.
CAUTION: This option is meant for factory use only. Do not operate the dryer with this cycle active without
factory authorization.
Error Code Historical Log:
The last fifteen occurring error codes will be stored in the control with a time and date stamp. The purpose of this
option is only to observe the history of these code occurrences (no changes can be made).
The time is based off the Real Time Clock, but potentially shifted by the user’s manual programming changes
(Shift Hours option) and/or network time override. As additional error codes occur, the oldest of the fifteen
logged codes is cleared from memory.
