Dexter Laundry C-Series Operator's Manual

8514-234-001 REV N page 38
T-120 REVERSING OPTIONS

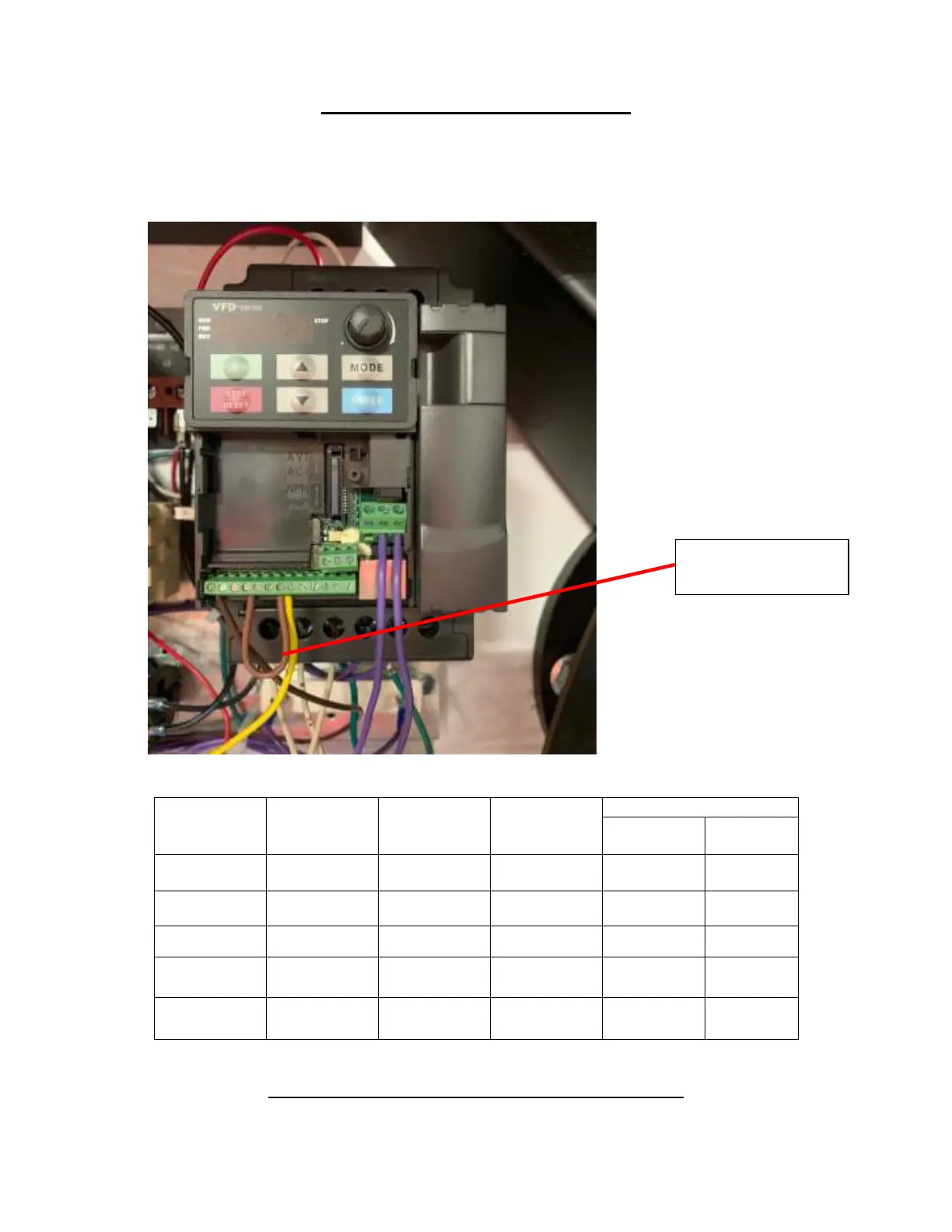

The T-120 dryer can be set to reverse at different intervals dependent on owner’s preference. The style
of operation is determined by the location of the BROWN jumper wire located in the rear control box,
on the frequency drive. (see image for jumper location)
STYLE
Dryer
Operation
FWD
(sec)
REV
(sec)
Jumper Locations
Pos (1) Pos (2)
1 NON-REV. YES NO DCM MCM
2 REV. 30 30 DCM MI2
3 REV. 60 60 DCM MI4
4 REV. 90 90 DCM MI5
5 REV. 120 120 DCM MI6
SERVICING AND TROUBLESHOOTING
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and
dangerous operation. Verify proper operation after servicing.
BROWN JUMPER
WIRE
