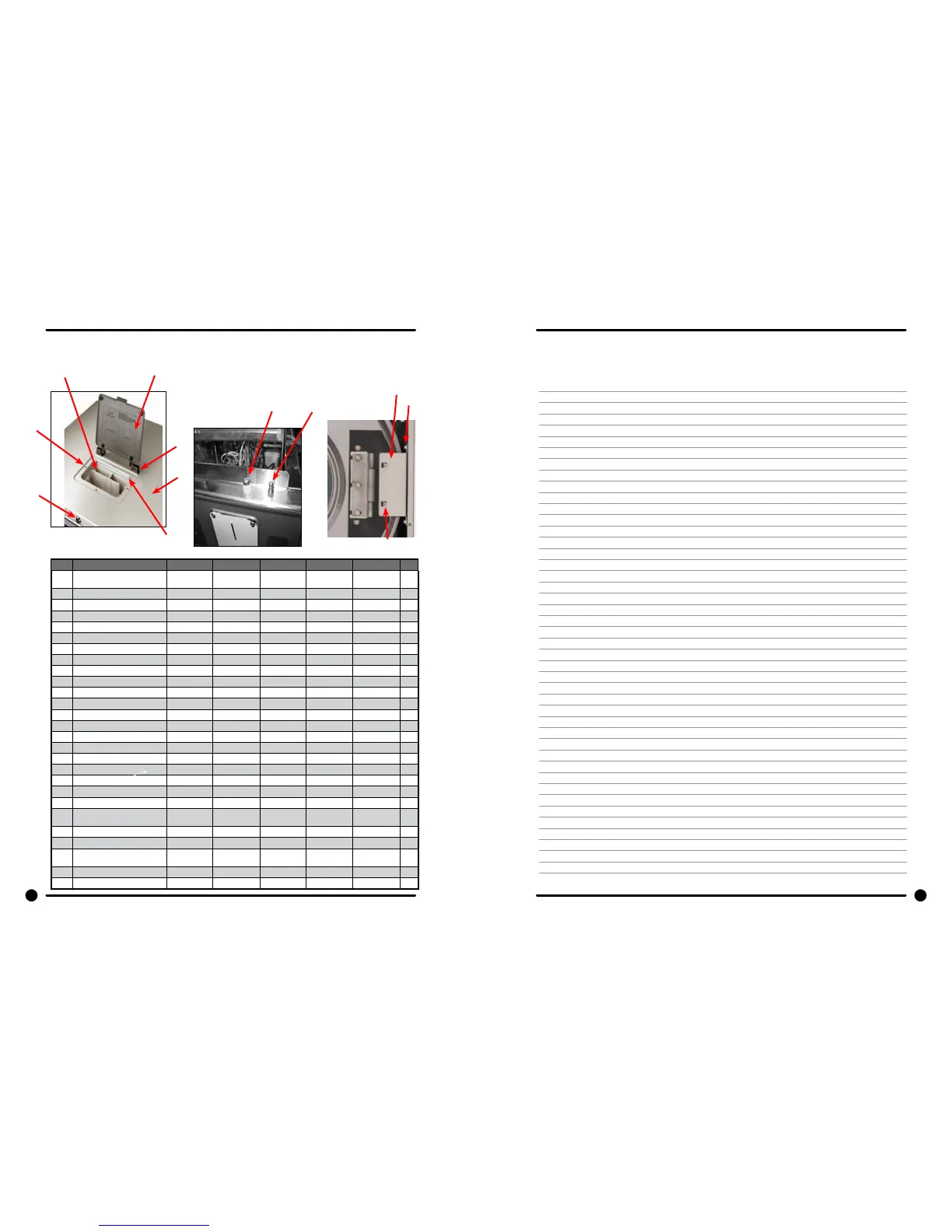

Cabinet and Front Panel Group Part # by Model Continued

Key Description T300 T350 T400 T450 T600 QTY

22 Panel Top, Assembly (includes

catch)

9989-498-001 9989-498-002 9989-498-003 9989-498-004 9989-498-005 1

* Catch, Top Panel 9086-017-001 9086-017-001 9086-017-001 9086-017-001 9086-017-001 2

* Rivit-Catch, Top Panel 8638-190-009 8638-190-009 8638-190-009 8638-190-009 8638-190-009 4

23 Lock, Top (w/Key) 8650-012-003 8650-012-003 8650-012-003 8650-012-003 8650-012-003 1

* Key, Top- # 6324 6292-006-007 6292-006-007 6292-006-007 6292-006-007 6292-006-007 1

* C a m, L o ck-To p 9095-049-001 9095-049-001 9095-049-001 9095-049-001 9095-049-001 1

* Nut, 9/32 - 28 Hex 8640-426-001 8640-426-001 8640-426-001 8640-426-001 8640-426-001 1

* Washer Flat 5/16 8641-581-0 0 8 8641-581-0 0 8 86 41-581-008 86 41-581-008 86 41-581- 008 1

24 Screw, Locator 9545-008-023 9545-008-023 9545-008-023 9545-008-023 9545-008-023 2

25 Plastic Sleeve, Locator 9355-001-001 9355-001-001 9355-001-001 9355-001-001 9355-001-001 2

26 Locator Post 9467-024-001 9467-024-001 9467-024-001 9467-024-001 9467-024-001 2

* Nut, Locator Post 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-411-003 2

27 Door, Dispenser 9108-095-005 9108-095-005 9108-095-005 9108-095-005 9108-095-005 1

28 Post, Door Mounting 9467-025-001 9467-025-001 9467-025-001 9467-025-001 9467-025-001 2

* Pin, Plain-SS 9 451-191-001 9451-191-001 9451-191-001 9451-191-001 9451-191-001 2

* Screw, Disp.Post Mtg 9545-045-002 9545-045-002 9545-045-002 9545-045-002 9545-045-002 4

29 Dispenser, Soap 9122-005-004 9122-005-004 9122-005-004 9122-005-004 9122-005-004 1

30 Gasket, Dispenser 9206-416-001 9206-416-001 9206-416-001 9206-416-001 9206-416-001 1

* Nut,Spring-SS 8640-399-007 8640-399-007 8640-399-007 8640-399-007 8640-399-007 4

31 Screw, Disp. Mtg 9545-008-012 9545-008-012 9545-008-012 9545-008-012 9545-008-012 4

* Flow Restrictor 9475-002-002 9475-002-002 9475-002-002 9475-002-002 9475-002-002 2

* Plastic Plug 1 1/2”-(inside

cylinder)

9456-041-007 9456-041-007 9456-041-007 9456-041-007 9456-041-007 1

* Hose-Dispenser outlet 9242-450-002 9242-450-002 9242-450-002 9242-450-002 9242-450-002 1

* Clamp-Hose, #32 8 65 4 -117-0 08 2

32 Bracket, Side Panel under front

panel

9029-263-001 9029-263-001 9029-263-001 9 029 -263-001 9029-263-001 1

33 Nut, Hex (to tub front) 8640-413-002 8640-413-002 8640-413-002 8640-413-002 8640-413-002 2

34 Screw, #10B x 1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 2

108 109

Part # 8533-080-001 12/15 Part # 8533-080-001 12/15

108 109

Notes

24, 25
