Dexter Laundry WCAD Series Parts & Service Manual

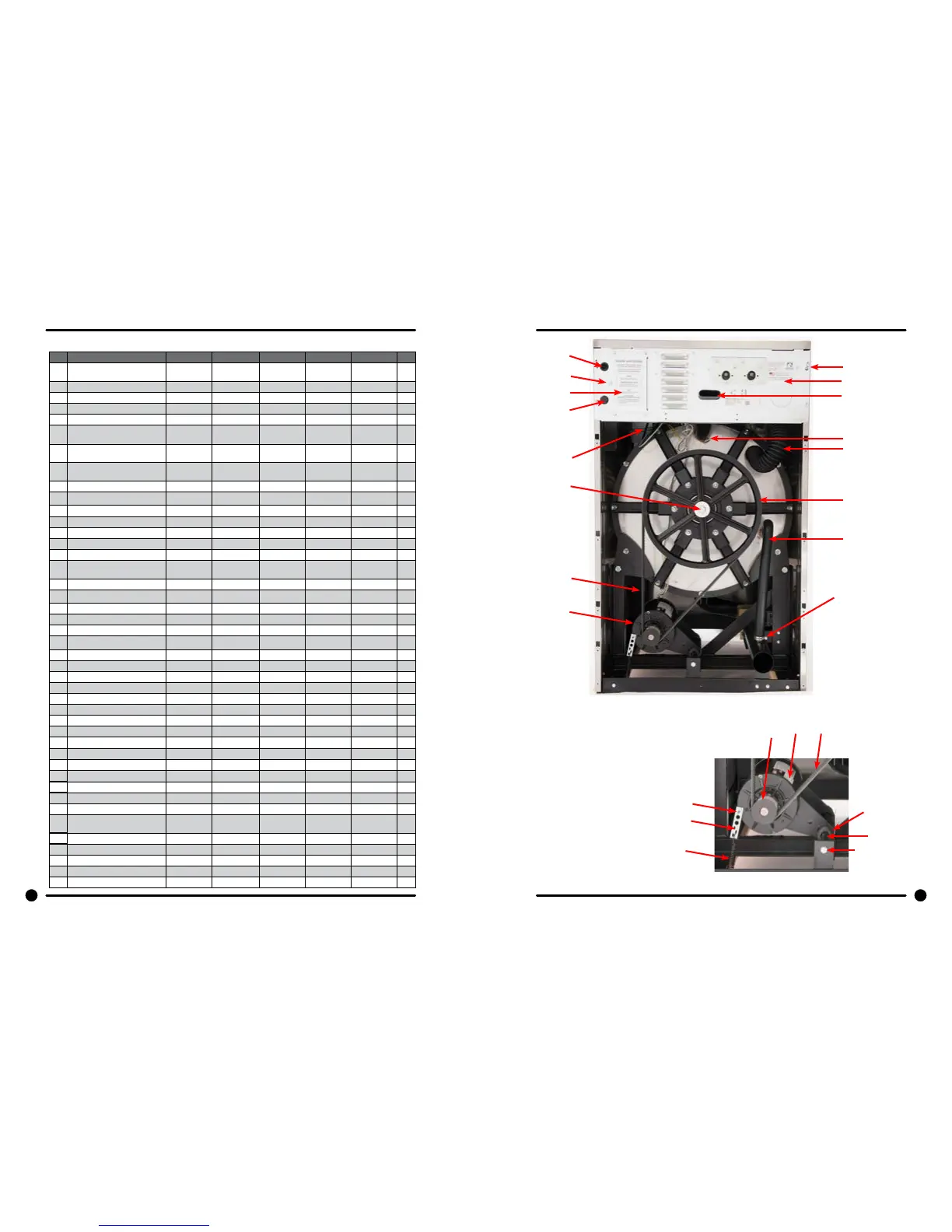

Rear View Access Part # by Model
Key Description T300 T350 T400 T450 T600 QTY
1 Drive Motor, 3 Phase (Inverter
duty)
9732-225-011 9732-227-001 9732-127-012 9732-127-014 9732-127-012 1
2 Pulley, Motor 9 4 53 -169- 012 9453-180-001 9453-170-003 9 4 53-181-0 01 9453-170-003 1
* Set Screw,Sq.Hd(motor pulley) 9545-028-015 9545-028-015 9545-028-015 9545-028-015 9545-028-015 2
3 Rod, Motor Mtg 9497-222-002 9497-222-002 9497-222-002 9497-222-002 9497-222-004 1
4 Screw (end of motor rod) 9545-029-005 9545-029-005 9545-029-005 9545-029-005 9545-029-005 1
* Lockwasher (end of motor rod) 8 6 41-582- 014 86 41-582- 014 8641-582-014 8641-5 82-014 8641-582-014 1
5 Motor Bushing (Rubber) after Se-
rial # 530726
9053-082-001 9053-082-001 9053-082-001 9053-082-001 9053-082-001 2
6 Clamp-Worm, 316SS, 1.5" (for
Rubber bushing) Start #530726
8654-117-019 8654-117- 019 865 4 -117-019 8654 -117-019 8 65 4-117- 019 2
7 Strap Bracket, Motor Tension 9029-206-001 9029-206-001 9029-206-001 9029-206-002 9029-206-001 1
8 Nut, Strap to Motor 10/32 UNF 8640-413-002 8640-413-002 8640-413-002 8640-413-002 8640-413-002 1
* Washer #10 8641-581-006 86 41-581-006 8641-581- 0 0 6 8641-581-0 0 6 86 41-581-006 1
9 Spring, Belt Tension 9534-319-002 9534-319-002 9534-319-002 9534-319-002 9534-319-002 1
10 Pulley, Driven 9908-041-002 9453-168-005 9453-168-004 9453-16 8 -00 6 9 453 -168 - 003 1
* Tolerance Ring driven pulley 9487-23 4-002 94 87-234-001 9487-234-001 9487-234-003 9487-234-003 1
11 Screw 1/2-13x1 1/4” 9545-017-009 9545-017-009 9545-017-009 1
11 Screw 5/8-11x1/1/2” Driven
pulley
9545-060-001 9545-060-001 1
12 Lockwasher 1/2” 86 41-582-016 8641-582-016 8641-582-016 1
12 Lockwasher 5/8” 8641-5 82-018 86 41-582- 018 1
13 Washer, Flat 1/2” 8 6 41-581-026 8 6 41-581-026 8641-581-026 1
13 Washer, Flat 5/8x2 1/4” 8641-5 81-032 8641-581- 032 1
14 Drive Belt 9040-076-004 9040-079-004 9040-079-005 1
14 Drive Belt 9040-076-005 9040-076-005 2
15 Channel, Rear 9947-025-001 9947-025-001 9947-026-001 9947-026-001 9947-026-001 1
16 Screw Mtg rear channel 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
* Nut, Spring Rear Channel MTG 8640-399-008 8640-399-008 8640-399-008 8640-399-008 8640-399-008 4
17 Cover, Power Terminal Block 9074-267-001 9074 -267-001 9074-267-001 9074 -267- 001 9074-267-001 1
18 Screw, 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 1
19 Hose, Overow Vent Top 9242-463-001 9242-463-002 9242-463-002 9242-463-003 9242-463-003 1
20 Clamp, Hose Vent 865 4 -117-0 0 8 865 4 -117-0 0 8 8654-117- 008 8654-117- 008 8 6 5 4 -117- 0 08 2
21 Hose, Overow to drain 9242-449-002 9242-449-002 9242-449-002 9242-449-002 9242- 449-002 1
22 Clamp, Hose overow to drain 8654 -117-018 8654 -117-018 8 65 4-117- 018 8 6 5 4-117- 018 8654 -117-018 2
23 Hose, Pressure Switch 9242-175-000 9242-175-000 9242-175- 007 9242-175- 0 07 9242-175- 0 01 1
* Clamp, Pressure Switch Hose 8654-117- 015 8 65 4-117- 015 8654 -117-015 8654 -117-015 8 6 5 4-117- 015 1
* Vaccuum Breaker Mtg Bracket 9029-266-001 9029-266-001 9029-078-001 9029-077-001 9029-077-001 1
* Vaccum Breaker ALL 9610-001-001 9610-001-001 9610-001-001 9610-001-001 9610-001-001 1
* Clamp, Hose to Vacuum Breaker 8 65 4 -117- 014 8654 -117-0 0 8 8654-117- 008 8654-117- 014 865 4-117- 014 1
24 Hose, Vacuum Breaker to tub 9242-458-001 9242-458-001 9242-458-002 9242-458-002 9242-458-002 1
25 Plastic Plug 7/8” Electrical Con-
nection
9456-041-006 9456-041-006 9456-041-006 9456-041-006 9456-041-006 2
26 Bushing, 7/8 9053-067-002 9053-067-002 9053-067-002 9053-067-002 9053-067-002 1
* Panel Assy., Back 9454-632-001 9989-632-001 9989-562-001 9989-562-001 9989-562-001 1
* Screw Panel Mtg.#10Bx1/2” 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 10
* Nut, Spring 8640-399-004 8640-399-004 8640-399-004 8640-399-004 8640-399-004 6
* Screw, To Base-1/4x3/4 9545-008-026 9545-008-026 9545-008-026 9545-030-002 9545-030-002 3
110 111
Part # 8533-080-001 12/15 Part # 8533-080-001 12/15
110 111
1
2
5, 6
4
3
11, 12, 13
7
21
22
26
25
24
23
9
10
20
19
18
17
16
15
14
8
1
14
