Dexter Laundry WCAD Series Parts & Service Manual

Key Description T300 T350 T400 T450 T600 QTY
1 Channel Assembly, Rear 9947-025-001 9947-025-001 9947-026-001 9947-026-001 9947-026-001 1
2 Screw, #10B x 1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
* Nut, Spring 8640-399-008 8640-399-008 8640-399-008 8640-399-008 8640-399-008 4
3 Mounting Plate Water Valves 9452-813-001 9452-813-001 9452-813-001 9452-813-001 9452-813-001 1
4 Nut-Elastic stop, #10-32 8640-413-004 8640-413-004 8640-413-004 8640-413-004 8640-413-004 2
5 Valve, Water Inlet (dual outlet)
(see Water Inlet Valve Breakdown
for individual parts)
9379-183-010 9379-183-010 9379-183-010 9379-183-010 9379-183-010 2
6 Screw, Valve Mtg 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
7 Wire-Assy, Jumper, Yellow 8220-123-001 8220-123-001 8220-123-001 8220-123-001 8220-123-001 1
8 Shield over Water Valves Plastic 9550-194-001 9550-194-001 9550-194-001 9550-194-001 9550-194-001 1
9 Push Clip 9083-121-0 01 9083-121-0 01 9 083-121- 001 9 0 83-121- 001 9 083-121- 001 2
10 Vacuum Breaker 9610-001-001 9610-001-001 9610-001-001 9610-001-001 9610-001-001 1
* Bracket, Vacuum Breaker 9029-266-001 9029-266-001 9029-078-001 9029-077-001 9029-077-001 1
11 Screw, #10B x 1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
* Clamp, Hose to Vacume Braker 8654 -117-014 8654 -117-014 8 65 4-117- 014 865 4 -117-014 8654 -117-014 1
* Hose, Vacuum Breaker to Tub 9242-458-001 9242-458-001 9242- 458-002 9242-458-002 9242-458-002 1
* Clamp, Tub End 8654 -117-0 0 9 8654 -117-0 0 9 8654-117- 009 8654-117- 009 8654 -117-00 9 1
12 Hose, Valve to Vac. Braker 9242-453-020 9242-453-020 9242-453-020 9242-453-020 9242-453-020 4
* Hose, Cold, Vac. Brkr. dispenser 9242-453-013 9242-453-007 9242-453-016 9242-453-016 9242-453-009 1
* Hose, Hot, Vac. Brkr. dispenser 9242-453-007 9242-453-020 9242-453-017 9242-453-017 9242-453-008 1
13 Clamp, Hose-Worm 8654-117- 015 865 4-117- 015 8654 -117-015 8654 -117-015 8654-117- 015 12
14 Hose, overow Suds 9242-463-003 9242-463-003 9242-463-003 9242-463-003 9242-463-003 4
* Clamp, Hose-Spring (overow to
tub back)
8654-117-018 8654-117- 018 865 4 -117-018 8654 -117-018 8654-117-018 2
15 Plate Assembly, Drive Mounting 9982-382-001 9982-382-001 9982-382-001 9982-382-001 9982-383-001 1
16 Nut-#10-32UNF, 2B 8640-413-002 8640-413-002 8640-413-002 8640-413-002 8640-413-002 4
17 VFD Delta “E” drive 120 volt 9375-031-004 1
17 VFD Delta “E drive 208-240 volt 9375-032-006 9375-032-004 9375-030-004 9375-030-002 9375-030-006 1
* Key Pad-Display Delta “E” Drive 9150-044-001 9150-044-001 9150-044-001 9150-044-001 9150-044-001 1
18 Cable-Data, Communication 9806-015-001 9806-015-001 9806-015-001 9806-015-003 9806-015-003 1
19 Bushing, 7/8 9053-067-002 9053-067-002 9053-067-002 9053-067-002 9053-067-002 1
* Cord assembly (-10 model only) 9802-037-009 N/A N/A N/A N/A 1
20 Clip Strain Relif 8618-037-001 8618-037-001 N/A N/A N/A 1
21 P l u g, 7/8 9545-041-006 9545-041-006 9545-041-006 9545-041-006 9545-041-006 1
22 Bracket, Terminal-Mounting 9029-265-001 9029-265-001 9029-265-001 9029-265-001 9029-265-001 1
23 Screw, #10B x 1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
24 Label-Warning 8502-639-001 8502-639-001 8502-639-001 8502-639-001 8502-639-001 1
25 Strip-Terminal Marker 9558-025-001 9558-025-001 9558-025-001 9558-025-001 9558-025-001 1
26 Terminal Block 9897-033-002 9897-033-002 9897-033-002 9897-033-002 9897-033-002 1
27 Screw-Phillips, 6ABx3/4 9545-031-010 9545-031-010 9545-031-010 9545-031-010 9545-031-010 2
28 Harness-Power, Terminal Block 9627-747-003 9627-747- 003 9627-747-003 9627-747-003 9627-747-003 1
29 Bushing, 1” 9053-067-004 9053-067-004 9053-067-004 9053-067-004 9053-067-004 1
30 Terminal Lug, Solderless 8652-134- 001 8652-134- 001 8652-13 4-0 01 8652-13 4-0 01 8 6 52-134- 0 01 1
31 Lock-Wash e r, 1 /2 8 6 41-582- 0 06 86 41-582- 0 0 6 8 6 41-582- 0 06 86 41-582- 0 0 6 8 6 41-582- 0 06 1
31 Screw, #10-32 TTX 1/2 GRN 9545-008-027 9545-008-027 9545-008-027 9545-008-027 9545-008-027 1
32 Bushing, 3/4 9053-067-001 9053-067-001 9053-067-001 9053-067-001 9053-067-001 1
33 Braking resistors (200 ohm) (-10) 9483-004-002 1
33 Braking resistors (200 ohm) 9483-004-002 9483-004-002 9483-004-002 9483-004-002 9483-004-002 2
34 Screw-#10 Bx1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4

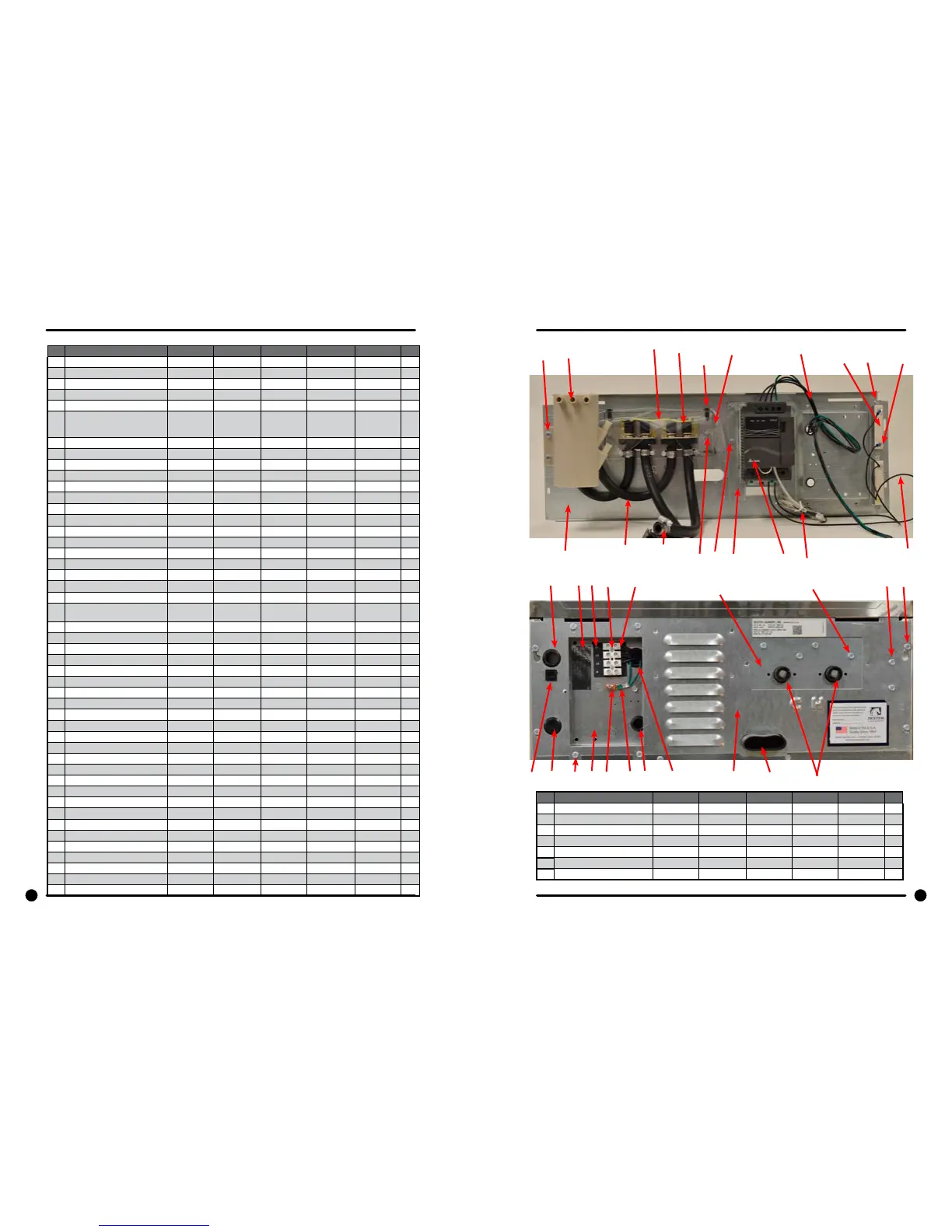

Water Inlet & Rear Channel
Key Description T300 T350 T4 0 0 T450 T600 QTY
* Wire Assy -Violet, (24” T300-10) 8220-118-001 N/A N/A N/A N/A 2
35 Wire Assy, Jumper 8220-117-002 8220-117-002 8220-117-002 8220-117-002 8220-117-002 2
36 Screw, #6-32x5/16 9545-044-006 9545-044-006 9545-044-006 9545-044-006 9545-044-006 4
37 Nut, #6-32 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-411-003 4
* Cover Controls 9074-267-001 9074-267-001 9074-267-001 9074-267-001 9074-267-001 1
* Screw-#10Bx1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 1
* Label-Warning, Notice 8 5 02-761-001 8502-761- 0 01 8502-761- 001 8502-761-0 01 85 02-761- 001 1
126 127
Part # 8533-080-001 12/15 Part # 8533-080-001 12/15
1
9
2
6
5
4
3
10
20
19
18
17
16
15
14
13
8
12
11
7
1
36,37
21
5
22
11
30
29
28
27
26
2524
23 31
32
35
34
33
