Key Description T300 T350 T40 0 T450 T600 QTY
1 Circuit Breaker 5198-211-002 5198-211-002 5198-211-002 5198-211-002 5198-211-002 1
2 Transformer
200/250V-24V
8711-004-003 8711-004-003 8711-004-003 8711-004-003 8711-004-003 1
* Hose Inlit 9990-027-014 9990-027-014 9990-027-014 9990-027-014 9990-027-014 2
* Harness, Power Ter-
minal Block
9627-747-006 9627-747-006 9627-747-006 9627-747-006 9627-747-006 1
* Harness Main, V1.5 9627-914-001 9627-914 - 0 01 9627-914 -001 9627-914-001 9627-914- 0 01 1
* Harness, Coin Ac-
cecptorless
9627-895-001 9627-895-001 9627-895-001 9627-895-001 9627-895-001 1
* Wiring Label , Sche-
matic & Diagram
9506-524-001 9506-526-001 9506-528-001 9506-530-001 9506-532-001 1
* Owners Booklet 8514-223 - 0 02 8514-224-002 8514-225- 002 8514-226-002 8514-227- 002 1
1
2
Key Description T300 T350 T4 0 0 T450 T600 QTY
* Valve, Water Inlet (includes 1
thru 6)
9379-183-011 9379-183-011 9379-183-011 9379-183-011 9379-183-011 2
1 Screen, Inlet end of valve 9555-056-001 9555-056-001 9555-056-001 9555-056-001 9555-056-001 2
2 Coil Assy., 24V Invensys 9089-017-004 9089-017-004 9089-017-004 9089-017-004 9089-017-004 2
3 Diaphragm Invensys (Viton) 9118-049-002 9118-049-002 9118-049-002 9118-049-002 9118-049-002 2
3 Diaphragm Invensys (EPDM) 9118-049-001 9118-049-001 9118-049-001 9118-049-001 9118-049-001 2
4 Guide, Solenoid Invensys 9211-021-0 02 9211-021-0 02 9211- 021-002 9211- 021-002 9211-021-002 2
5 Armature Invensys 9015-008-001 9015-008-001 9015-008-001 9015-008-001 9015-008-001 2
6 Spring, Armature Invensys 9534-298-001 9534-298-001 9534-298-001 9534-298-001 9534-298-001 2
1
2
6
5
4
3

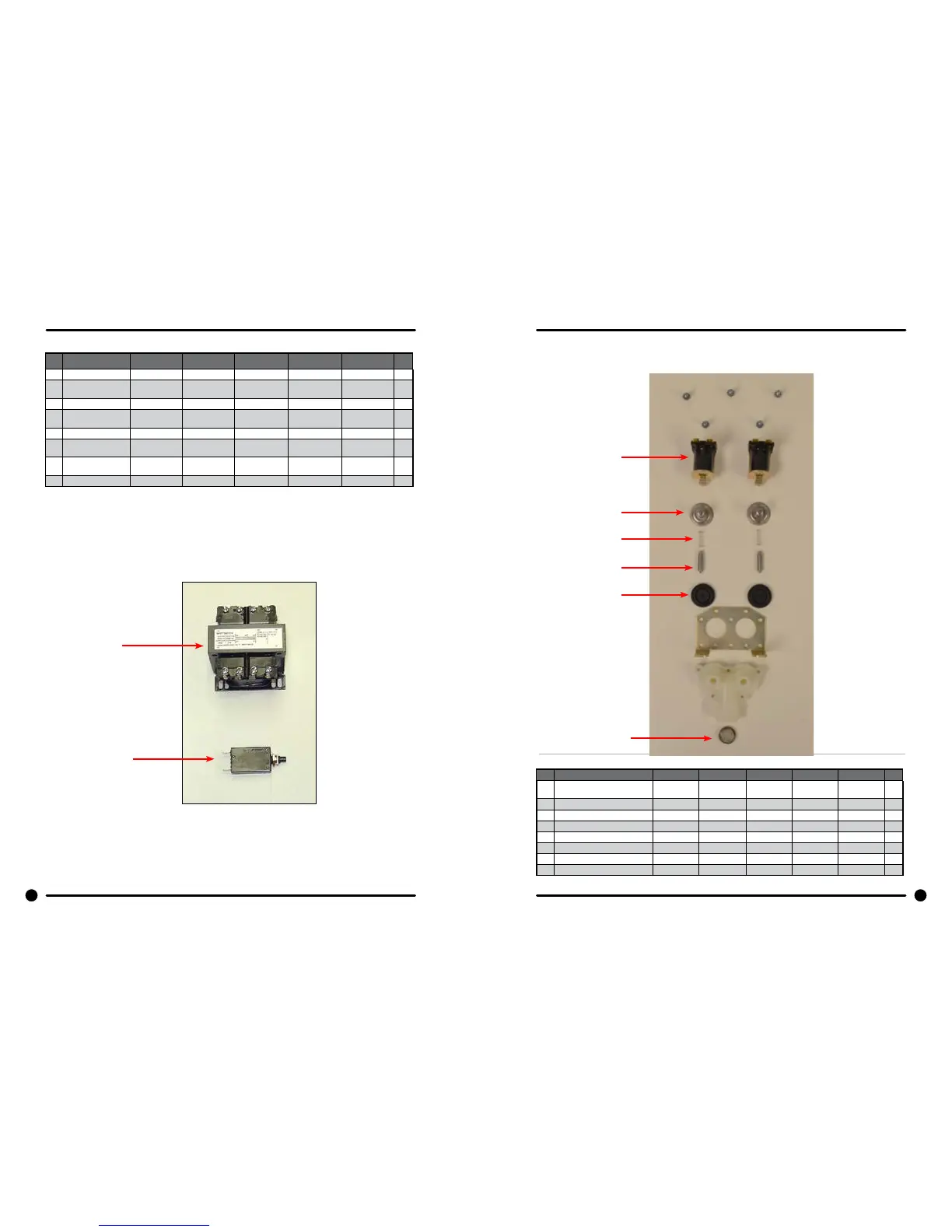

Water Valve Assy # by Model 50Hz.
156 157
Part # 8533-080-001 12/15 Part # 8533-080-001 12/15
