Dexter Laundry WN0900 - Page 75

75
Part # 8533-083-001 1/18

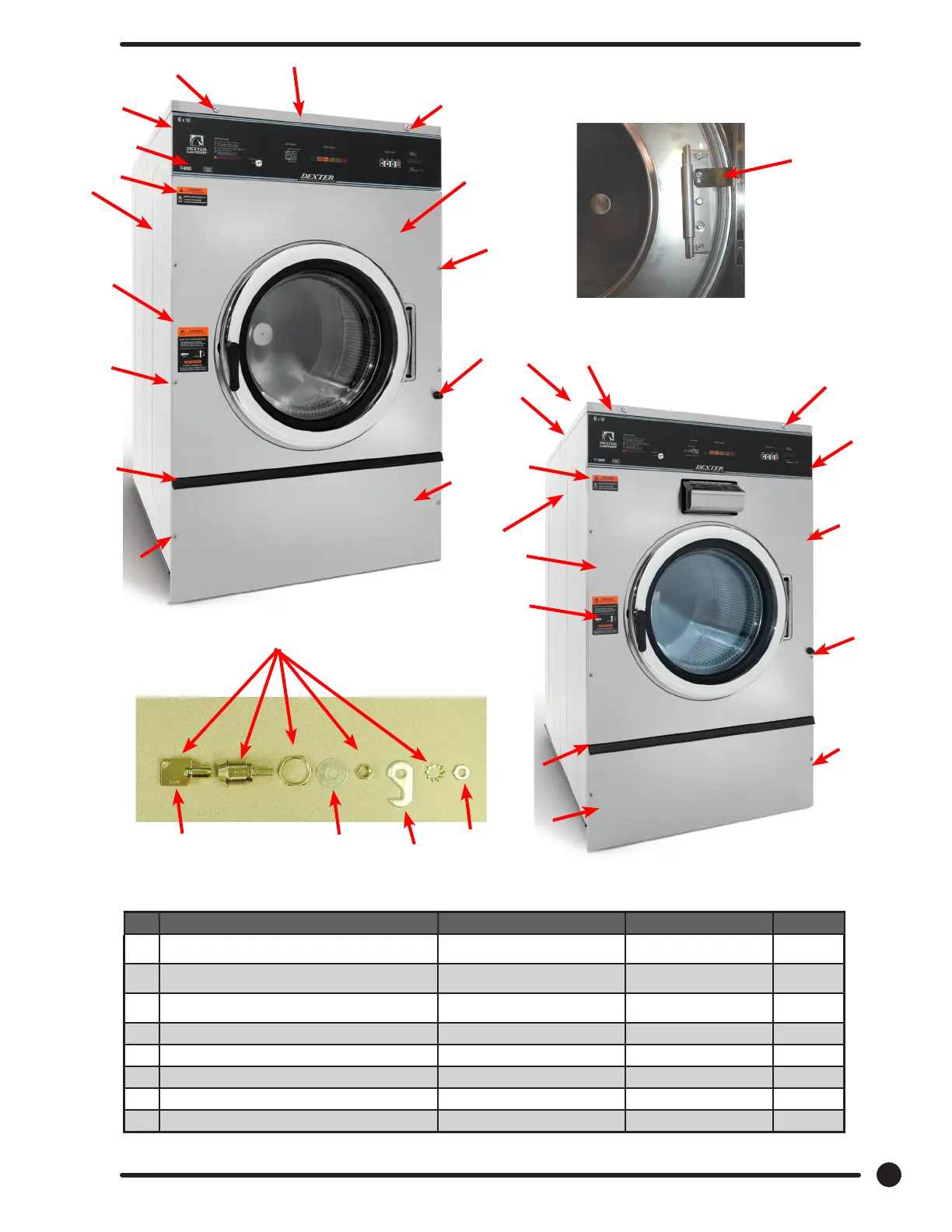

Key Description T900 T1200 QTY
15 Screw Mtg., Flat Head 10Bx1 3/4 9545-008-014 9545-008-014 2
16 Washer, Finish 8641-585-001 8641-585-001 2
* Nut, Spring 8640-399-008 8640-399-008 2
17 Label-Risk of injury (Black) 8507-759 -001 8507-759 -001 1
18 Key, Top- # 6324 6292-006-007 6292-006-007
19 Washer Flat 5/16 8641-581-008 8641-581-008 2
20 Cam, Lock-Top 9095-049-001 9095-049-001 2
21 Nut, 9/32 - 28 Hex 8640-426-001 8640-426-001 2
3
12
14
11A
15,16
13
1
2
4
7
8
18
5,6
9
11B
12
12
12
13
14
4
5,6
15,16
5,6
17
10
1
3
9
19
20
21
12
17
7
