Dexter Laundry WN0900 - Page 79

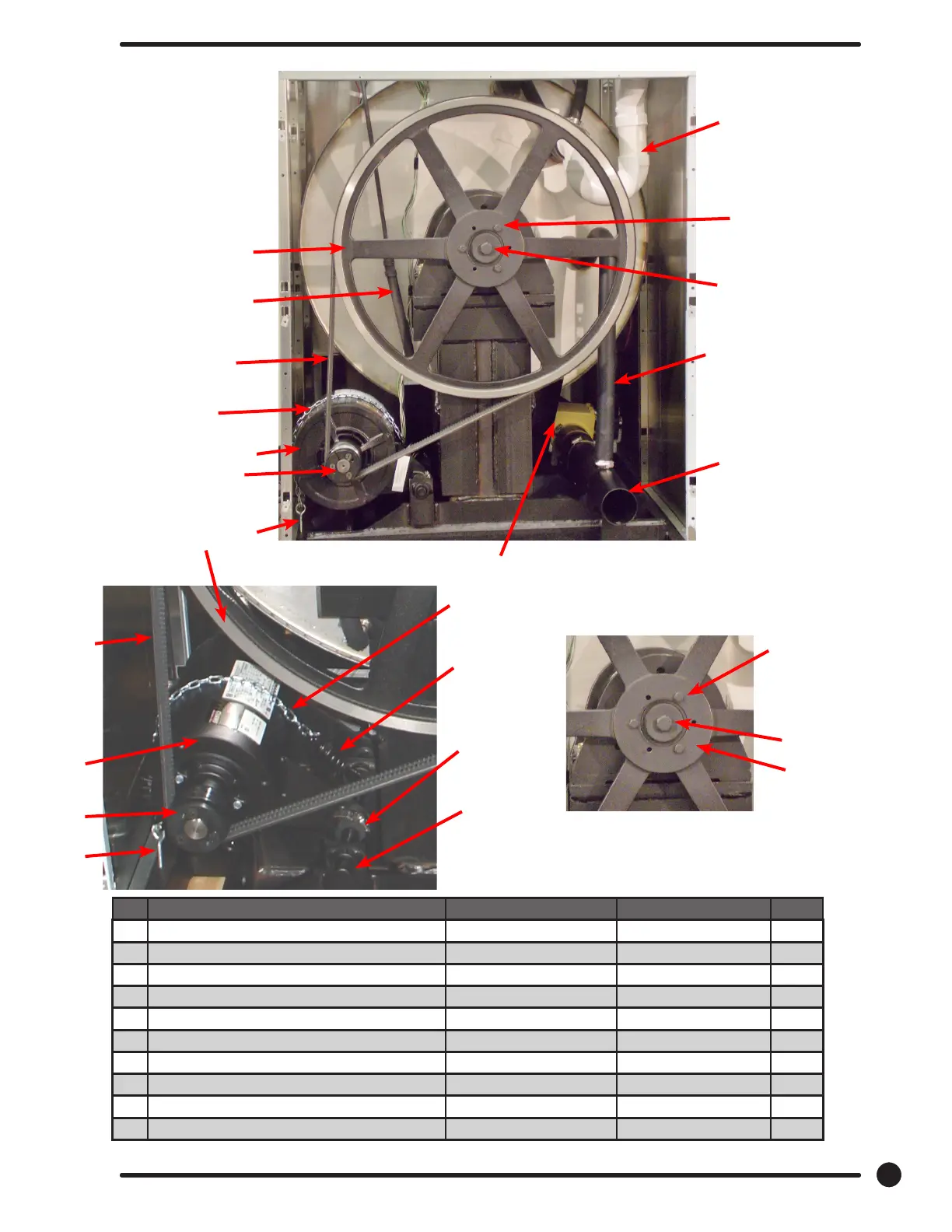

Key Description T900 T1200 QTY
16 Injection- tube assy 9883-012-001 9883-012-001 1
* Hose, Injection Tube to Tub 9242-461-001 9242-461-001 1
* Clamp, Injection Hose 8654-117-014 8654-117-014 2
17 Hose-Overow 9242-449-003 9242-449-003 1
* Clamp Hose Over Flow 8654 -117-008 8654-117-008 2
18 Drain Valve 9379-200-001 9379-200-001 1
* Hose, Drain Valve to Tube 9242-457-001 9242-457-001 1
* Clamp 8654 -117-014 8654-117- 014 2
19 Drain Tube 9915-120-004 9915-126-002 1
20 Hose-Pressure Switch 9242-175- 007 9242-175-0 04 1
