Dexter Laundry WN0900 - Page 85

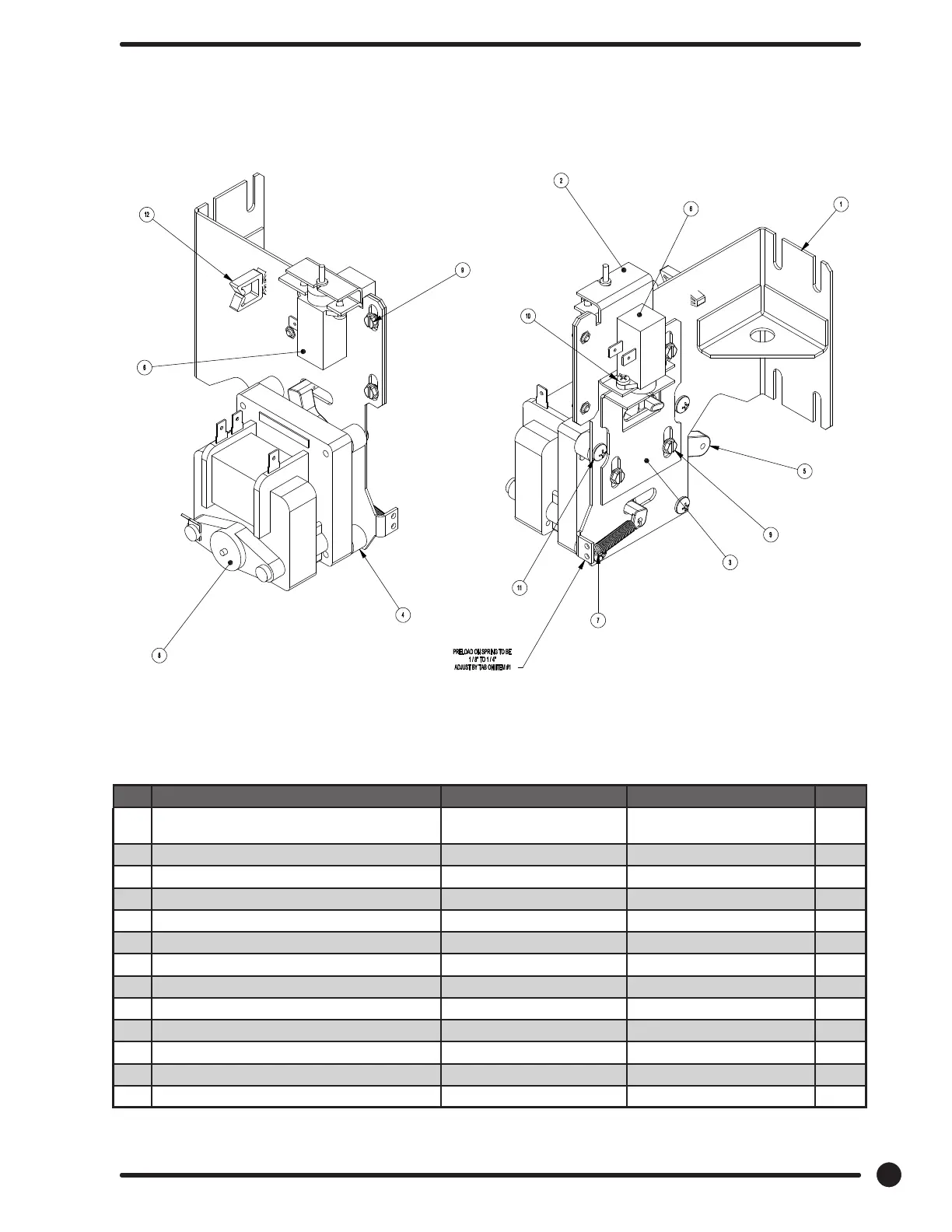

Gear Motor Door Lock Assembly
Key Description T900 T1200 QTY
* Actuator Assembly (Includes 1-10, Rod NOT
included)
9892-014-001 9892-014-001 1
11 Screw Pnhdcr, 10-32 UNFx0 .75 9545-012-027 9545-012-027 4
10 Cross Recessed PAn Hd Tapping screw 9545-031-011 9545-031-011 4
9 Screw -Hxwshrhdslsems, 6-32 x 3/16 9545-044-003 9545-044-003 6
8 Motor & Gear Assembly 120v 9914-137-015 9914-137-015 1
7 Spring - Extension 9534-350-001 9534-350-001 1
6 Thermoactuator - Door Lock Relay 120v 9586-001-001 9586-001-001 2
5 Arm - Door Lock 9001-063-001 9001-063-001 1
4 Spacer, Plastic 9538-157- 021 9538-157-021 4
3 Bracket Slide Lock 9029-204-001 9029-204-001 1
2 Bracket Assy, Slide - Unlock 9985-189-001 9985-189-001 1
1 Bracket Assy, Slide Lock Actuator 9985-190-001 9985-190-001 1
* Rod, Door Lock 9497-225-015 9497-225-015 1



85
Part # 8533-083-001 1/18
