Deye INGE - CT Connection; Earth Connection(Mandatory); WIFI Connection

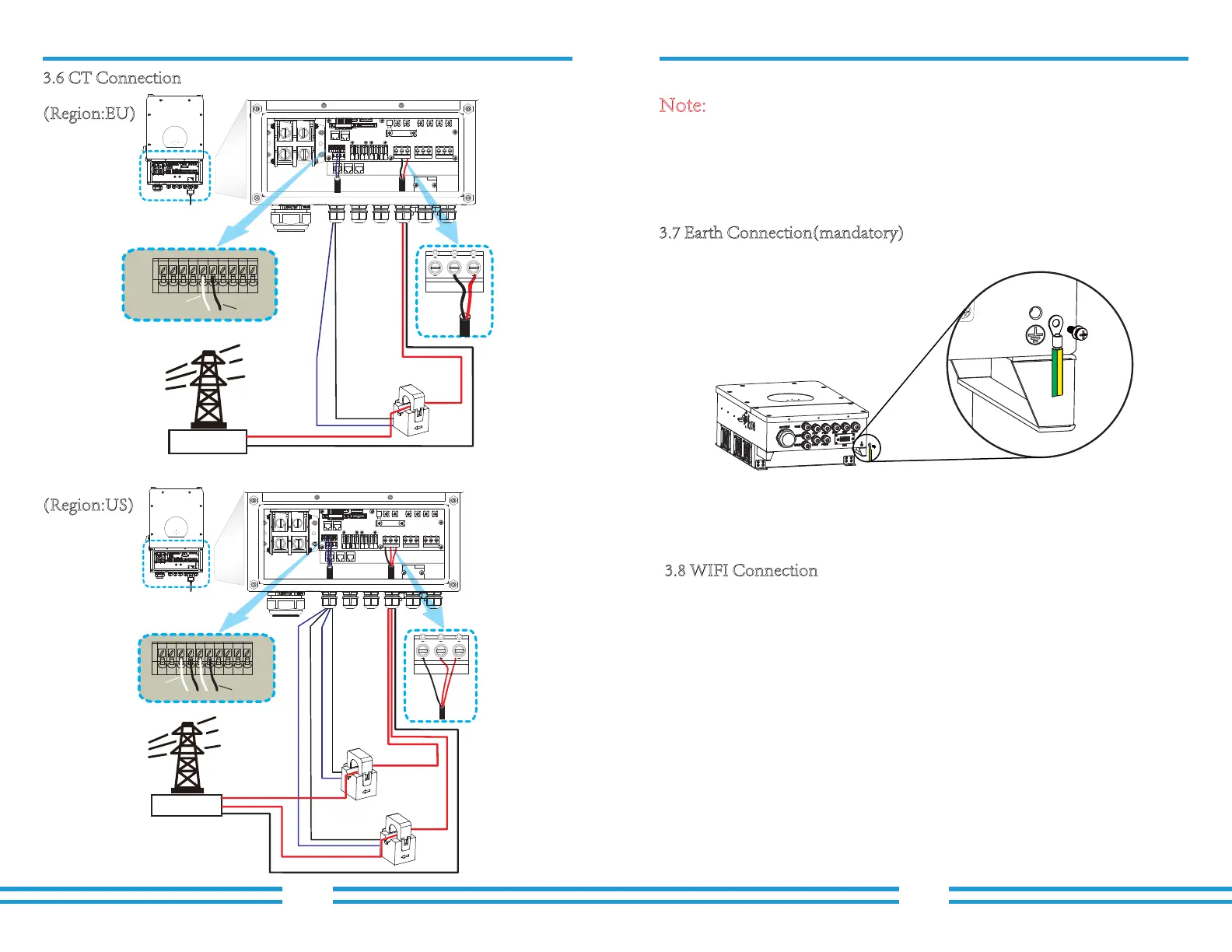

3.6 CT Connection
3.8 WIFI Connection
For the configuration of Wi-Fi Plug,please refer to illustrations of the Wi-Fi Plug.
When the inverter is in the off-grid state, the N line needs to be connected to the earth.
3.7 Earth Connection(mandatory)
Ground cable shall be connected to ground plate on grid side this prevents electric shock.
if the original protective conductor fails.
(Region:EU)
(Region:US)
Inverter
N L
N L N L N L
White wire
56
Black wire
Grid
L
N
CT
5
6
Note:
Grid
Inverter
N L2 L1
N L2 L1
White wire
3456
3
4
5
6
Black wire
L1
L2
N
CT1
CT2
