14
~

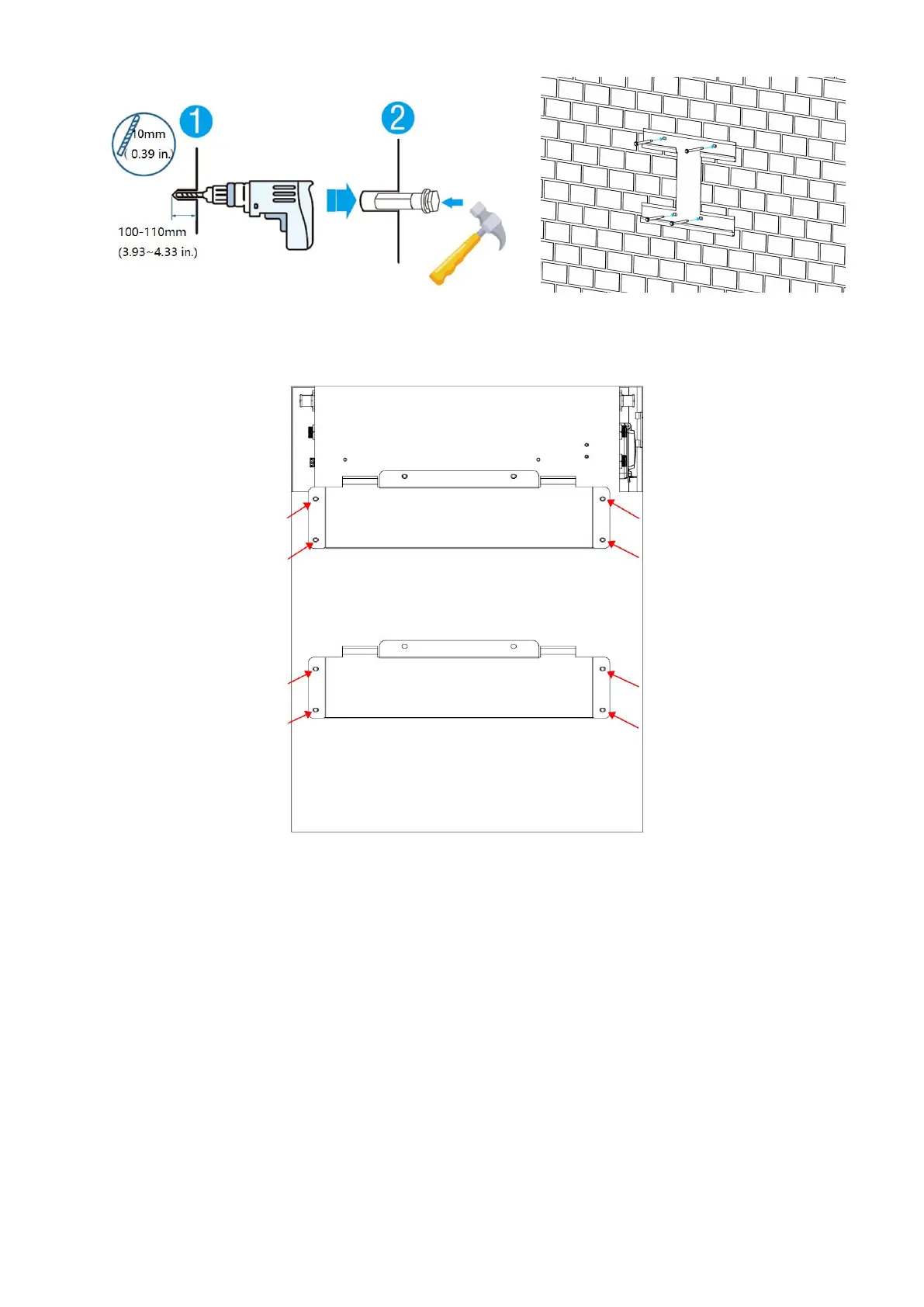

Figure 5-1
d)Use the 8 screws of M6*10 to fix the backplane to the back of the battery as shown in
Figure 5-2.
Figure 5-2
e)Then lifting the RW-F10.2 along the position of the sticker , push it on the wall bracket.
