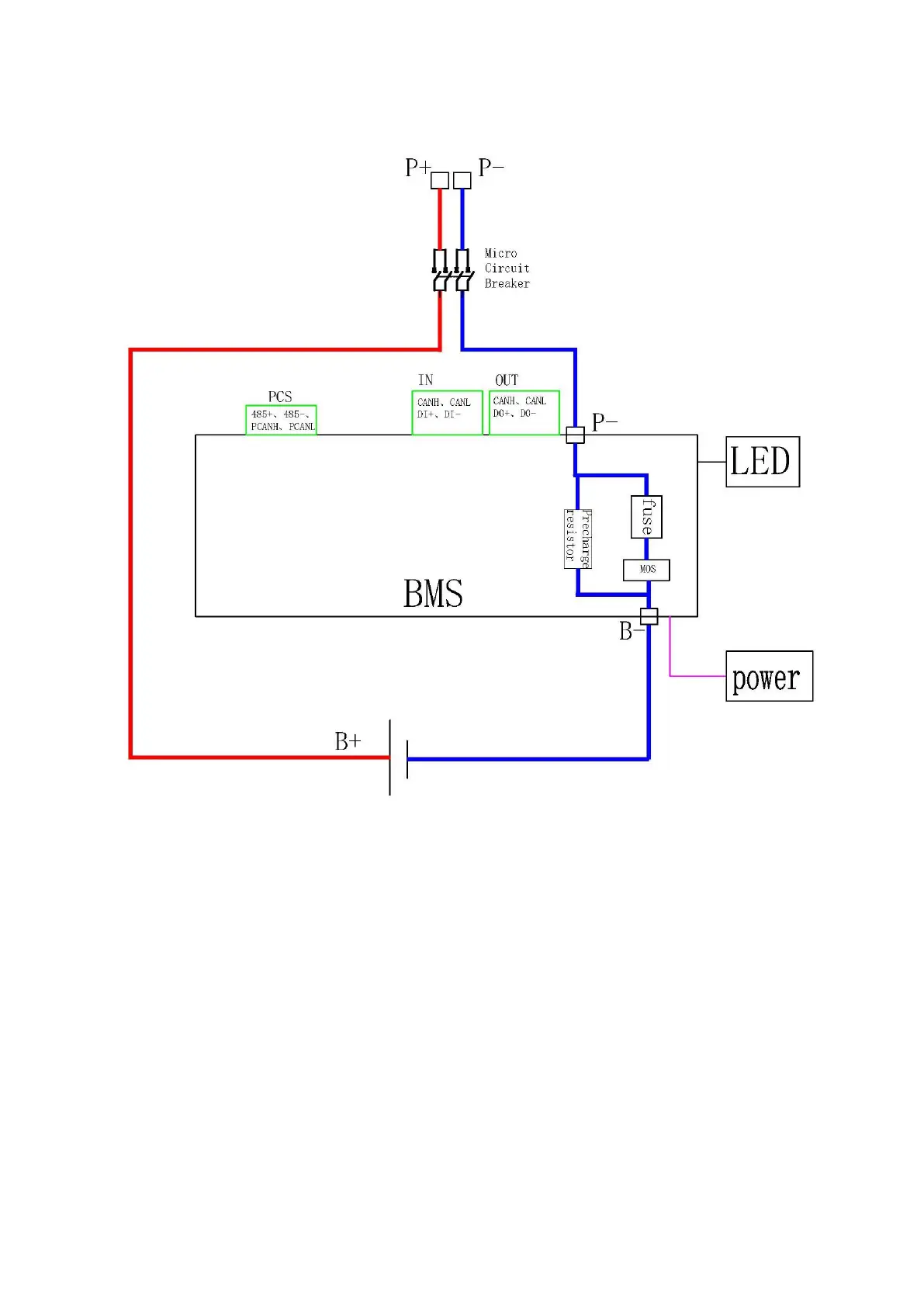

5.5 Electrical schematic diagram

This diagram is for each battery module.

5.6 Battery connected to inverter

For the Australian Market, an overcurrent protection and isolation device that isolates both

positive and negative conductors simultaneously is required between the battery system

and inverter.

Single battery connected to inverter
