5.3 Mounting the Battery
CAUTION
Remember that this battery is heavy! Please be careful when lilting out from the package.
5.3.1 Wall-Mounted method
a)Keep a distance of more than 400mm from the ground. After fixing the wall bracket, put a
sticker on the right side (between 90 and 95mm). And a sticker on the top of it(between 120
and 130mm). Mark the drill hole location at the appropriate location.

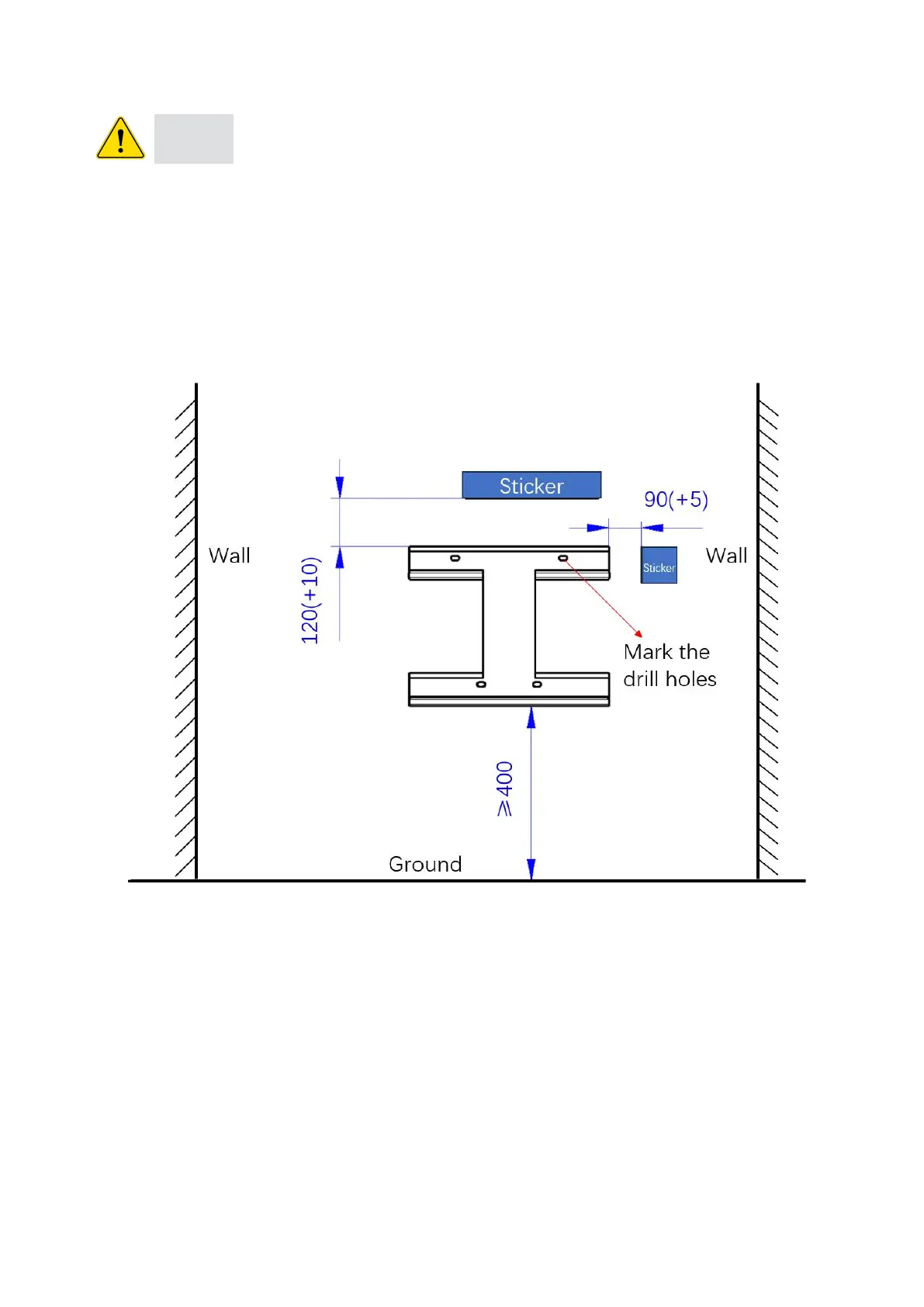

The installation location description should meet the size requirements of the figure below:
b)Choose the recommend drill head (as shown in Figure 5-1) to drill 4 holes on the
wall,100mm-110mm deep.
c) Use a proper hammer to fixing the hanging plate to the wall, fit the expansion
bolt(M6*100) into the holes, as shown in Figure 5-1.
