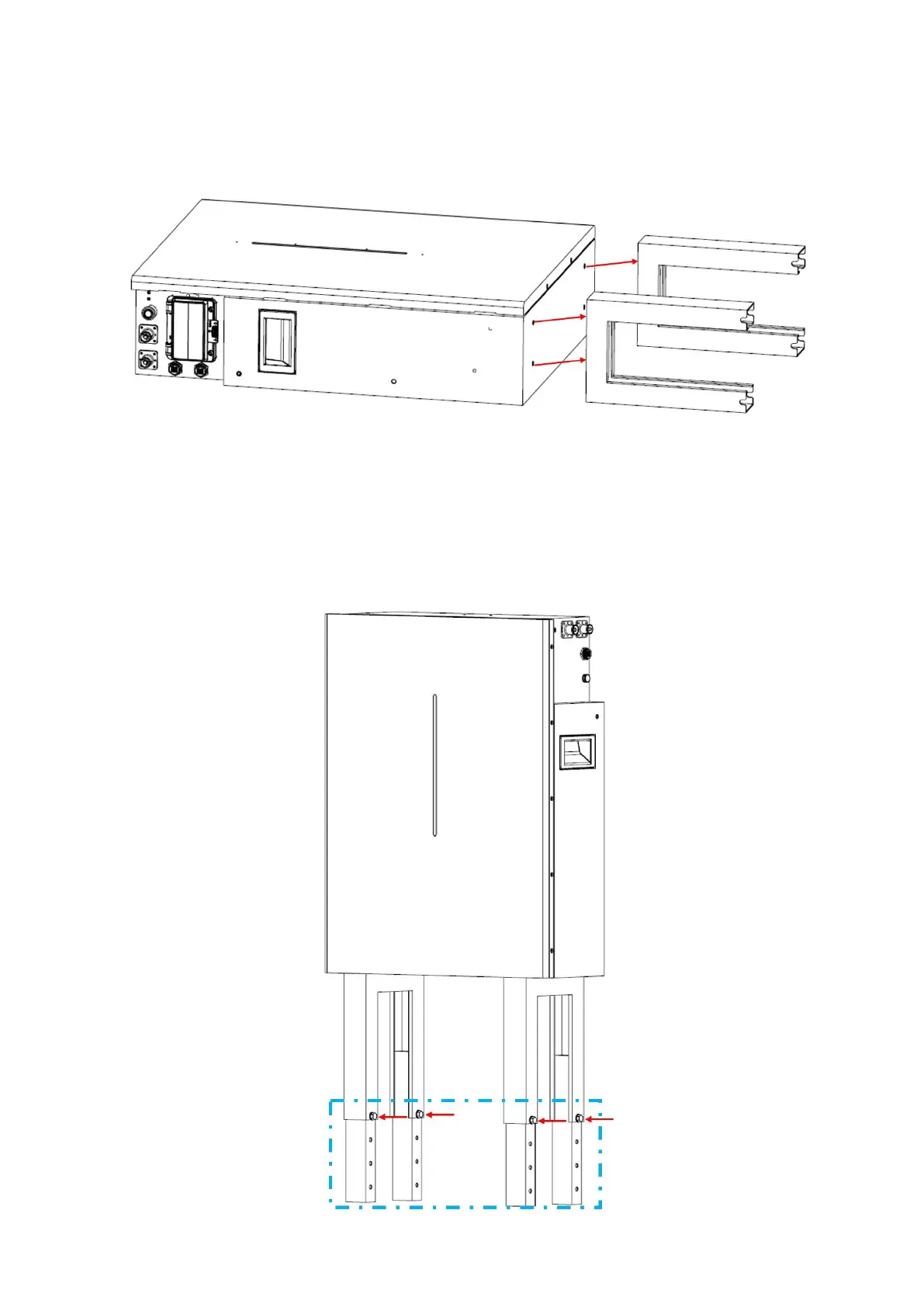

5.3.2 Floor-Mounted method
a）F
ix the support with screws(M10*20).
b）Fix the height of the expansion frame with screws(M8*70).
The distance between the holes of the retractable support is 25mm.
The maximum length of the retractable bracket is 485mm and the minimum length is 335mm.
And make sure the wall fixing plate is attached to the wall to complete the installation.
Retractable legs (dashed frame) are optional and can be added according to demand.
