Hardware Installation
Audio

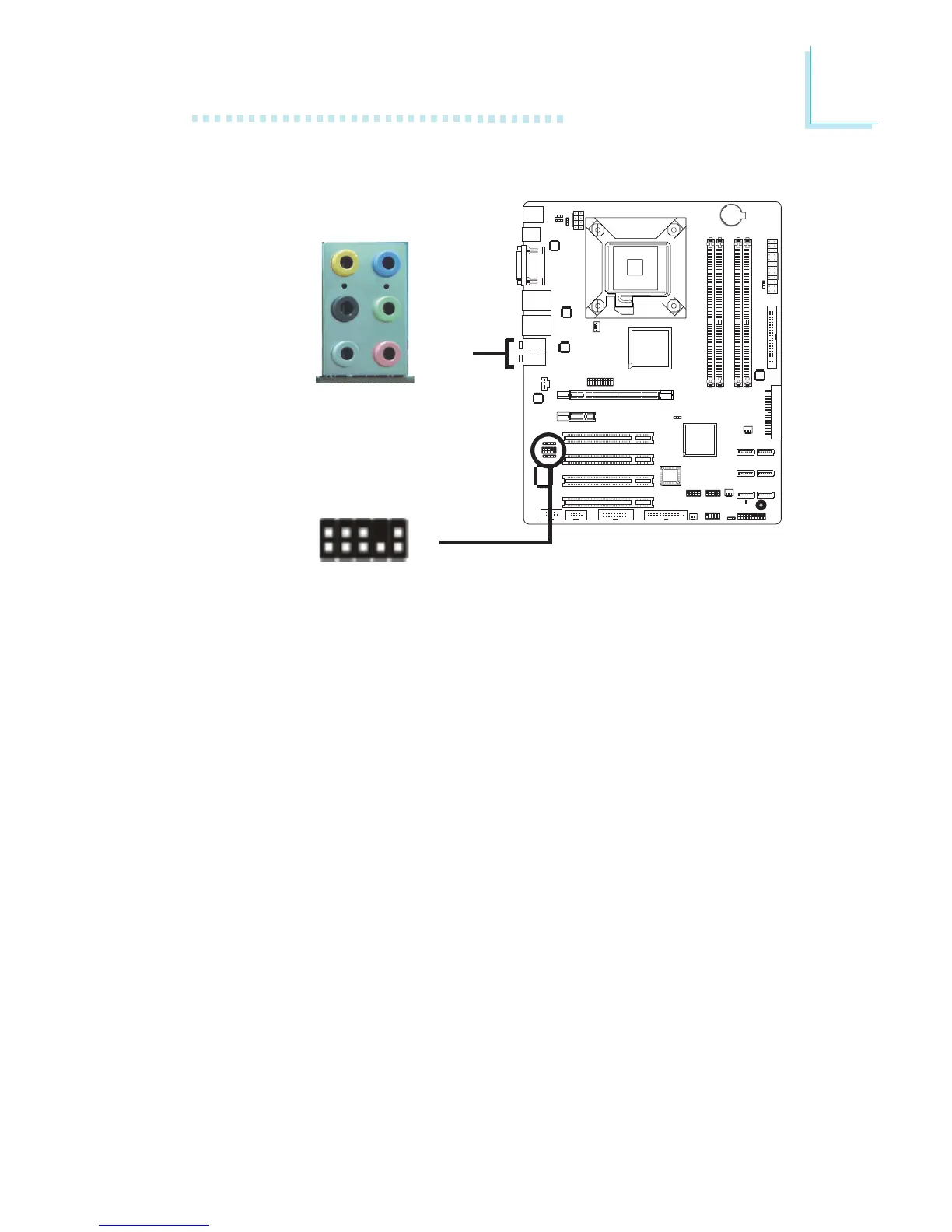

Rear Panel Audio (CN5)
Center/Subwoofer Jack (Orange)
This jack is used to connect to the center and subwoofer speak-
ers of the audio system.
Rear Right/Left Jack (Black)
This jack is used to connect to the rear right and rear left
speakers of the audio system.
Side Right/Left Jack (Gray)
This jack is used to connect to the side left and side right
speakers of the audio system.
Line-in (Light Blue)
This jack is used to connect any audio devices such as Hi-fi set,
CD player, tape player, AM/FM radio tuner, synthesizer, etc.
Line-out - Front Right/Left Jack (Lime)
Rear audio
Front audio
Line-out
Line-in
Mic-in
Rear R/L
Center/
Subwoofer
Side R/L
1
2
10
9
Mic-L
Mic-R
Line-out-R
Front-sense
Line-out-L
GND
Presense-signal
Mic-jack-sense
Key
Line-out-jack-sense
