Hardware Installation
USB Ports
USB allows data exchange between your computer and a wide range of simulta-
neouslyaccessibleexternalPlugandPlayperipherals.

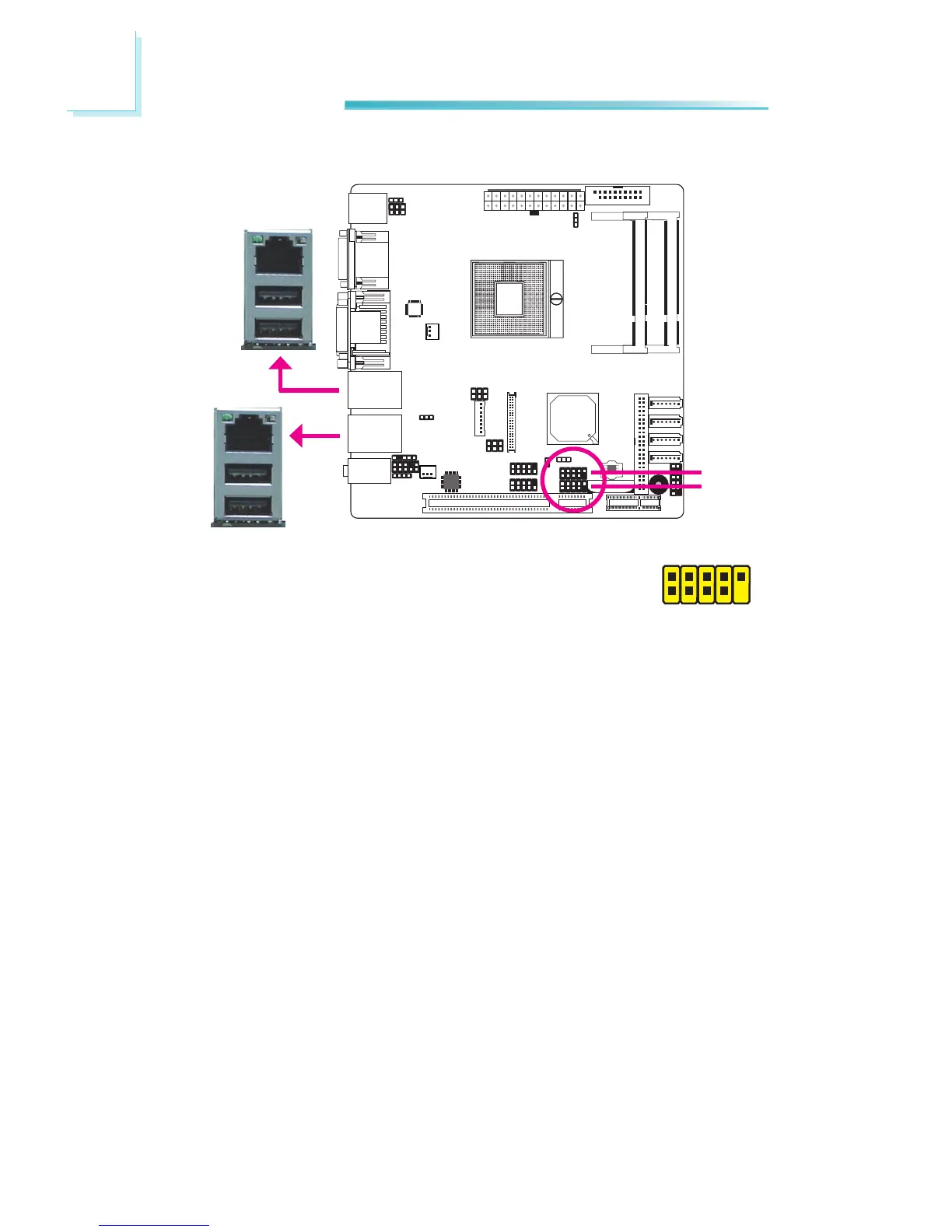

The system board is equipped with four onboard USB 2.0/1.1 ports. The two
10-pin connectors allow you to connect 4 additional USB 2.0/1.1 ports. The USB
ports may be mounted on a card-edge bracket. Install the card-edge bracket
to an available slot at the rear of the system chassis then insert the USB port
cablestoaconnector.
BIOS Setting
ConguretheonboardUSBintheChipsetmenu(“SouthBridge”submenu)ofthe
BIOS.Refertochapter3formoreinformation.
Driver Installation
You may need to install the proper drivers in your operating system to use the
USB device. Referto youroperating system’s manual or documentation for more
information.
USB0
USB1
USB8
USB9
1
VCC
-Data
+Data
GND
Key
VCC -Data +Data GND N.C.
2
10
9
USB2-3
USB4-5
