Hardware Installation

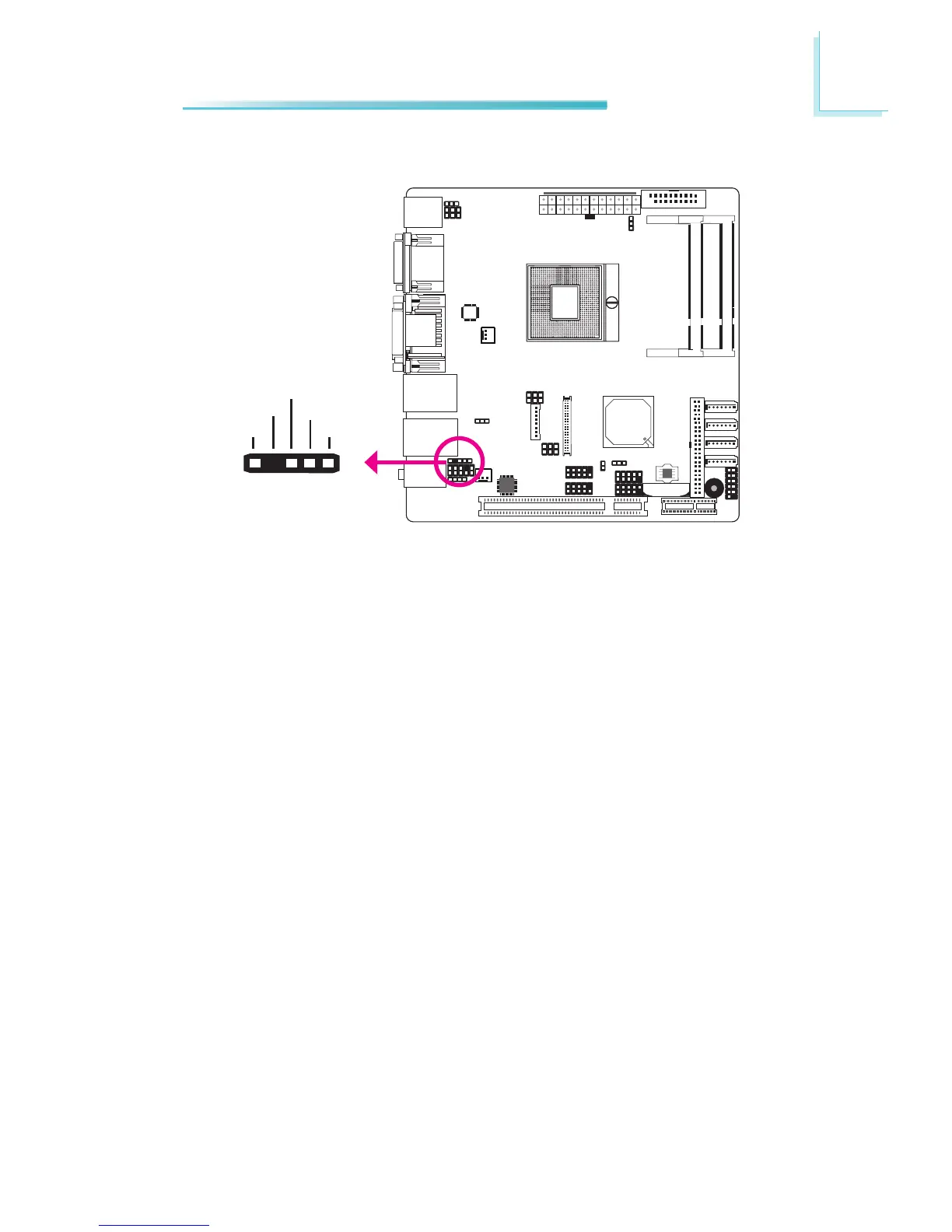

S/PDIF Connector
The S/PDIF connector is used to connect an external S/PDIF port. Your S/PDIF
port may be mounted on a card-edge bracket. Install the card-edge bracket to
an available slot at the rear of the system chassis then connect the audio cable
totheS/PDIFconnector.Makesurepin1oftheaudiocableisalignedwithpin1
oftheS/PDIFconnector.
1 5
+5V
Key
SPDIFout
Ground
SPDIFin
