Hardware Installation

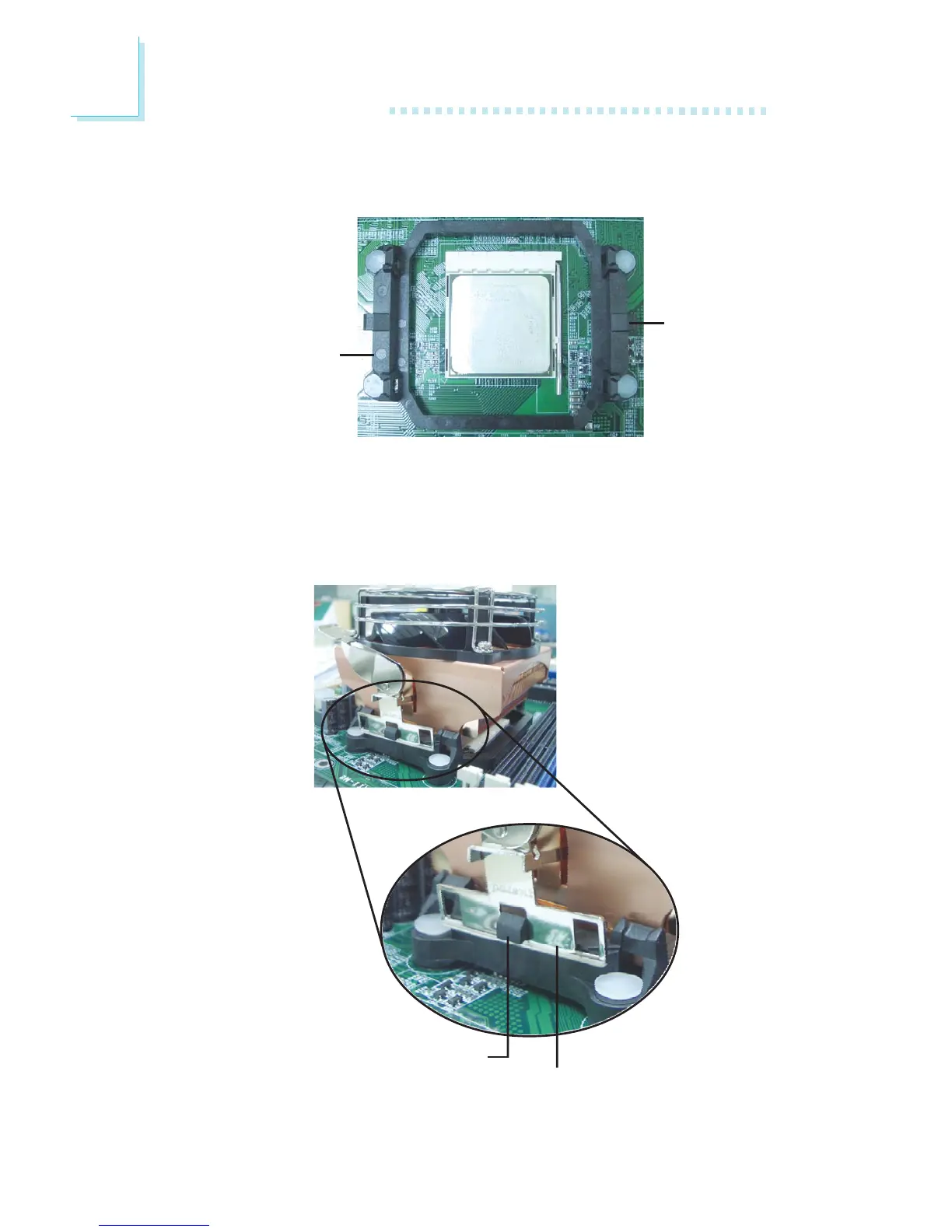

3. Place the heat sink on top of the CPU. Now hook one side of
the retention clip onto the retention module base by fitting the
hole(s) on the retention clip into the retaining tab(s) of the reten-
tion module base.
Retaining tab
Retention
module base
2. The system board comes with the retention module base already
installed.
Retaining
tab
Retention clip
