Hardware Installation
PCI Express Lanes Select
X
1-2 On
2-3 On
PCIE 1
16x
8x
1-2 On
2-3 On
PCIE 3
2x
8x

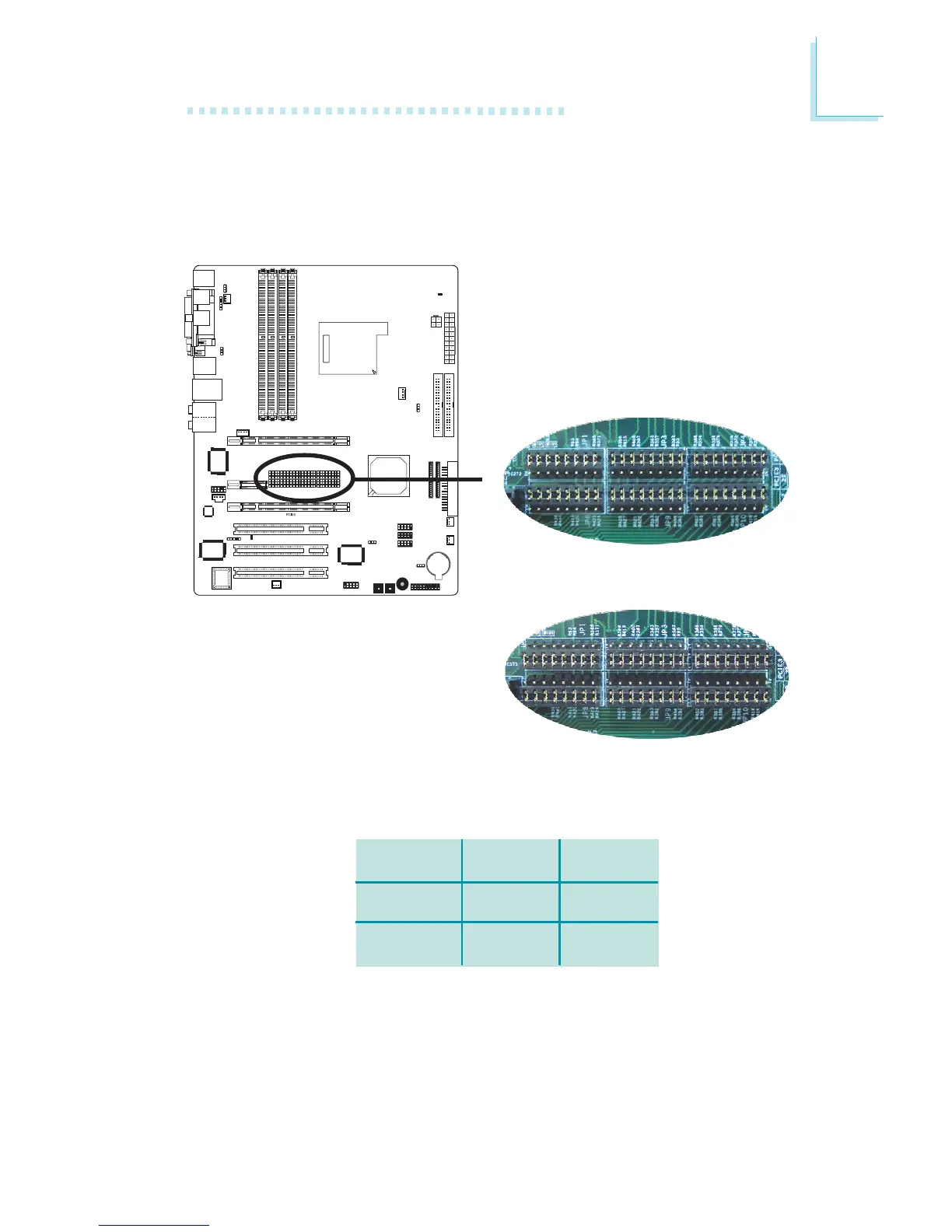

The jumpers below are used to select the bandwidth of the PCI
Express lanes.
PCIE 1
PCIE 3
The settings below is for the INFINITY NF SLI-M2/G system board.
