Quick Setup Guide

Quick Setup
Guide

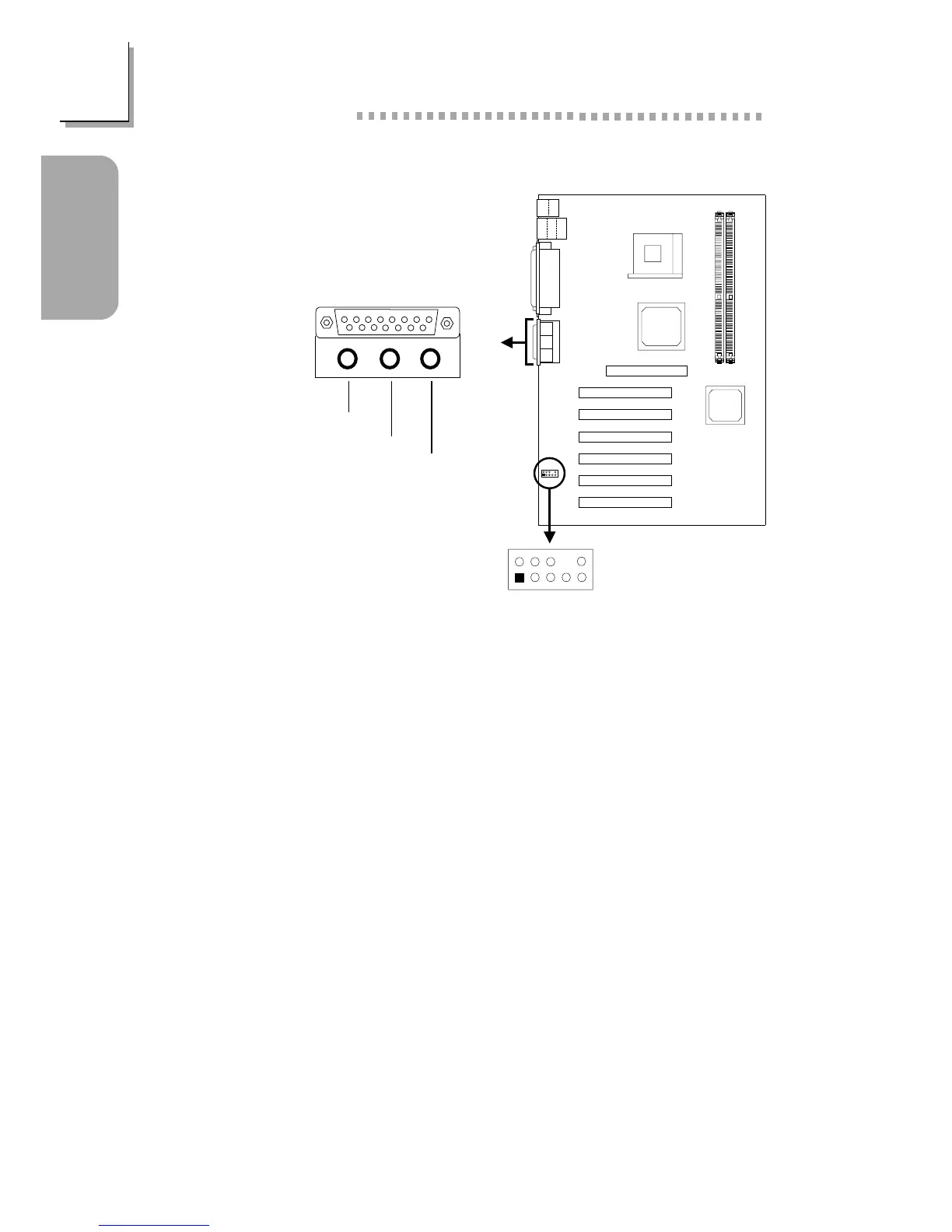

1.3.5 Audio Jacks and Game/MIDI ports
2
1
9
10
Front audio
(J1)
2
1
10
9
CN9
Game Port
Line-out
Line-in
Mic-in
Front Audio (J1)
1 Mic+ 2 Ground
3 Vbias 4 AuD_Vcc (Avcc)
5 AuD_R_Out 6 N. C.
7 N. C. 8 Key
9 AuD_L_Out 10 N. C.
