1.4 I/O Connectors

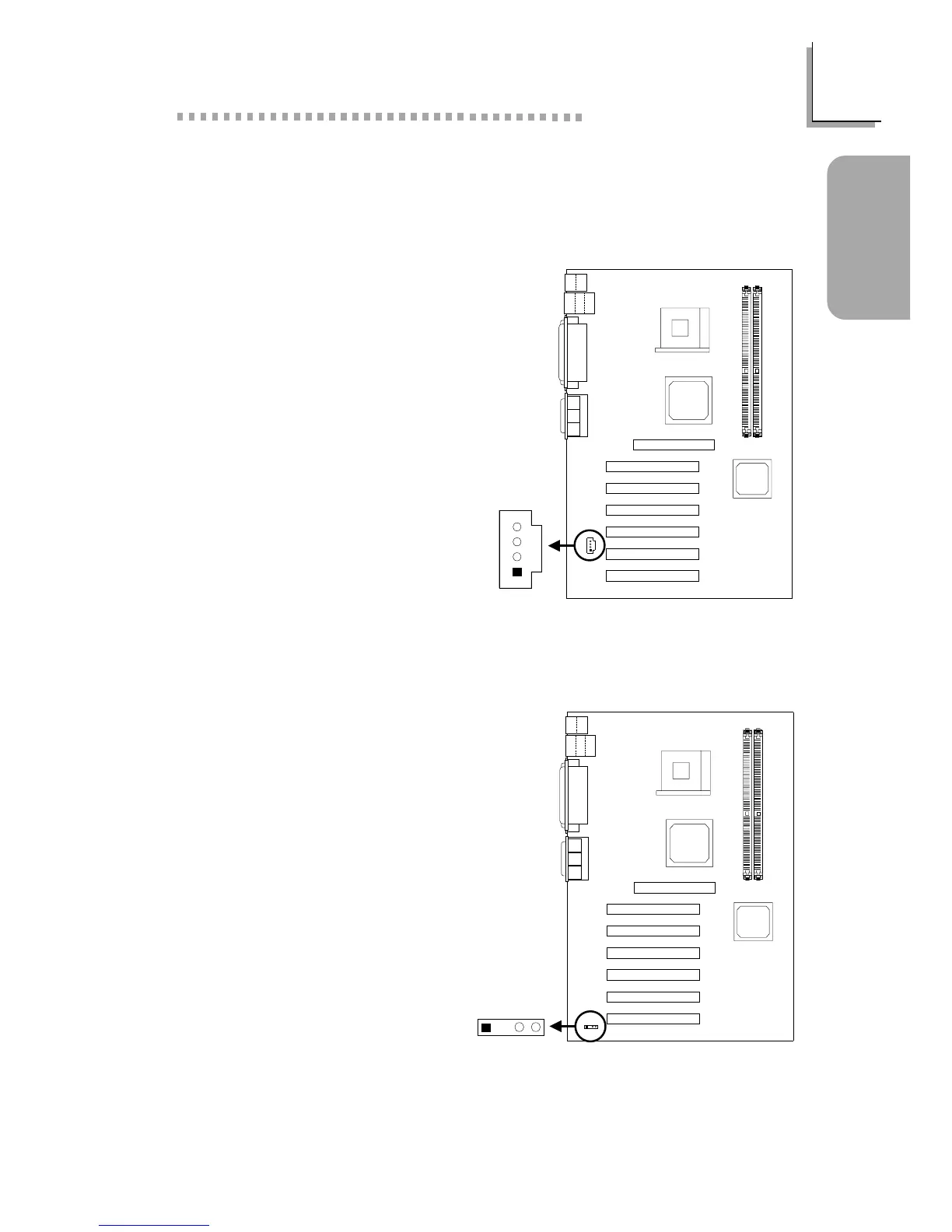

1.4.1 CD-in Internal Audio Connectors
CD-in
1 Left audio channel
2 Ground
3 Ground
4 Right audio channel
1.4.2 S/PDIF-out Connector
1 AVDD5
2 N. C.
3 SPDIF
4 Ground
CD-in
(J5)
4
3
2
1
S/PDIF-out
(J4)
12
3
4
