1.4.7 DIMM Standby Power LED

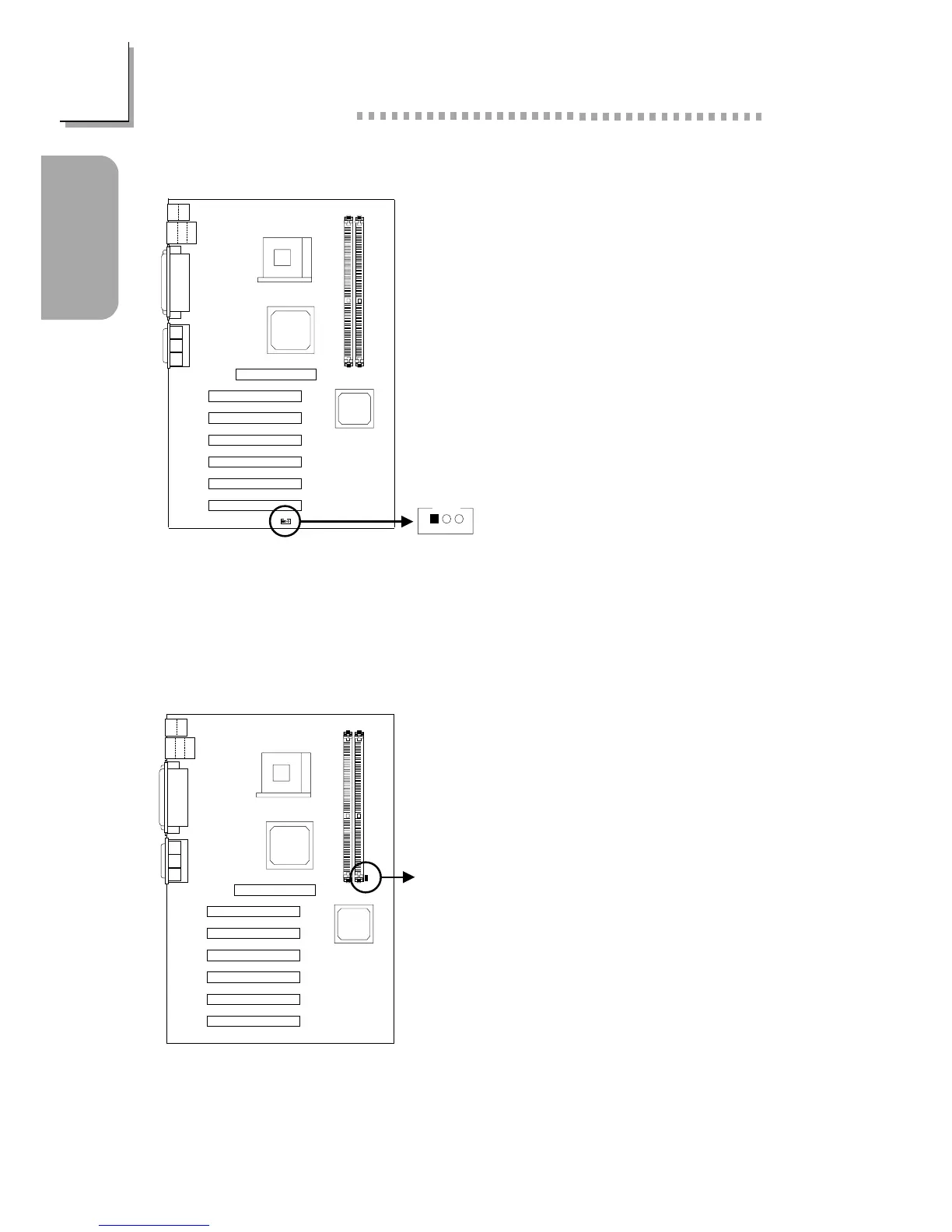

1.4.6 Wake-On-LAN Connector
The 5VSB power source of your power supply must support ≥ 720mA.
Wake-On-LAN
(J9)
3
21
1WOL
2 Ground
3 +5VSB
DIMM Standby
Power LED
If the DIMM Standby Power LED is lighted, you must power-off the system
then turn off the power supplys switch or unplug the power cord prior to
installing any memory modules.
