15
Quick Setup Guide
Quick Setup
Guide

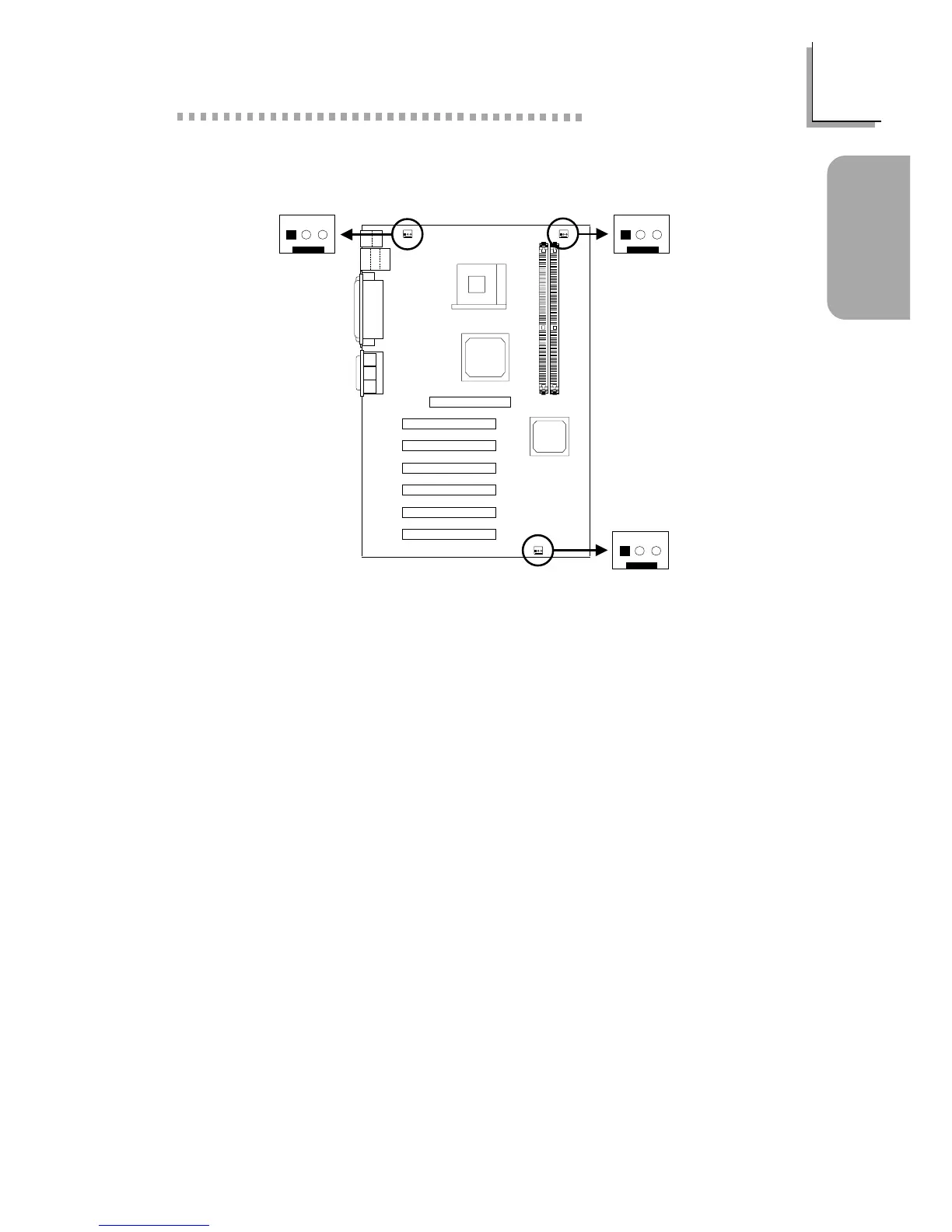

1.4.5 Fan Connector
3
2
1
Second fan
(J15)
Chassis fan
(J14)
3
2
1
3
2
1
CPU fan
(J8)
CPU Fan
1 Ground
2 Power
3N. C.
Chassis Fan
1 Ground
2 Power
3N. C.
Second Fan
1 Ground
2 Power
3N. C.
