Quick Setup Guide
Quick Setup
Guide
Note:
The illustrations on the following pages are based on the system
board that supports onboard LAN.

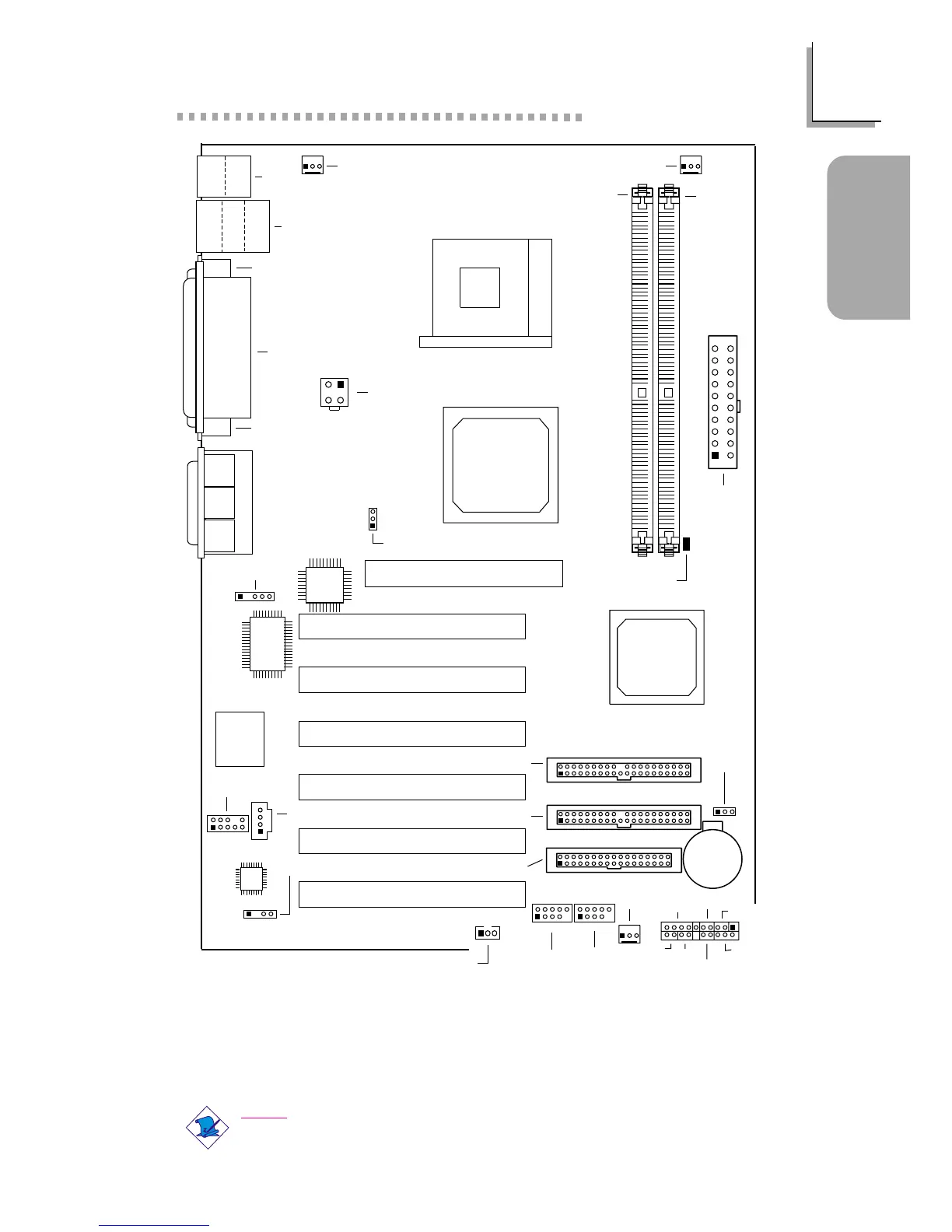

NB78-BL
(Supports onboard LAN)
CN1
KB
Mouse
CN7
LAN
USB 1
USB 2
COM 1 (CN6)
Parallel (CN8)
+12V power
(ATXP1)
4
3
2
1
CPU FSB select (JP1)
Realtek
RTL8100
IrDA (J3)
I/O
chip
BIOS
Game/MIDI (CN9)
Line
out
(CN3)
Line
in
(CN4)
Mic
in
(CN5)
AGP Slot
PCI Slot 1
PCI Slot 2
PCI Slot 3
PCI Slot 4
PCI Slot 5
PCI Slot 6
CD-in (J5)
2
1
9
10
Front
audio (J1)
AC’97
S/PDIF-out (J4)
Wake-On-LAN
(J9)
Chassis fan
(J14)
2
1
9
10
2
1
9
10
USB 3/4
(JUSB1)
Battery
Clear CMOS
(JP2)
RESET
SPEAKER
G-SW
ATX-SW
G-LED
1
2
20
19
HD-LED
PWR-LED
J16
USB 5/6
(JUSB2)
1
FDD (J12)
IDE 2 (J11)
IDE 1 (J10)
Intel
ICH4
Intel
845PE
MCH
Socket 478
ATX
power
(PL1)
1
10
11
20
DIMM Standby
Power LED
DDR 1
DDR 2
Second fan (J15)
CPU fan (J8)
COM 2 (CN2)
