4000 Controllers Section 2: Controller Functions
Controller Operations Manual Rev C 10
On-Screen Keyboards & Numeric Keypads

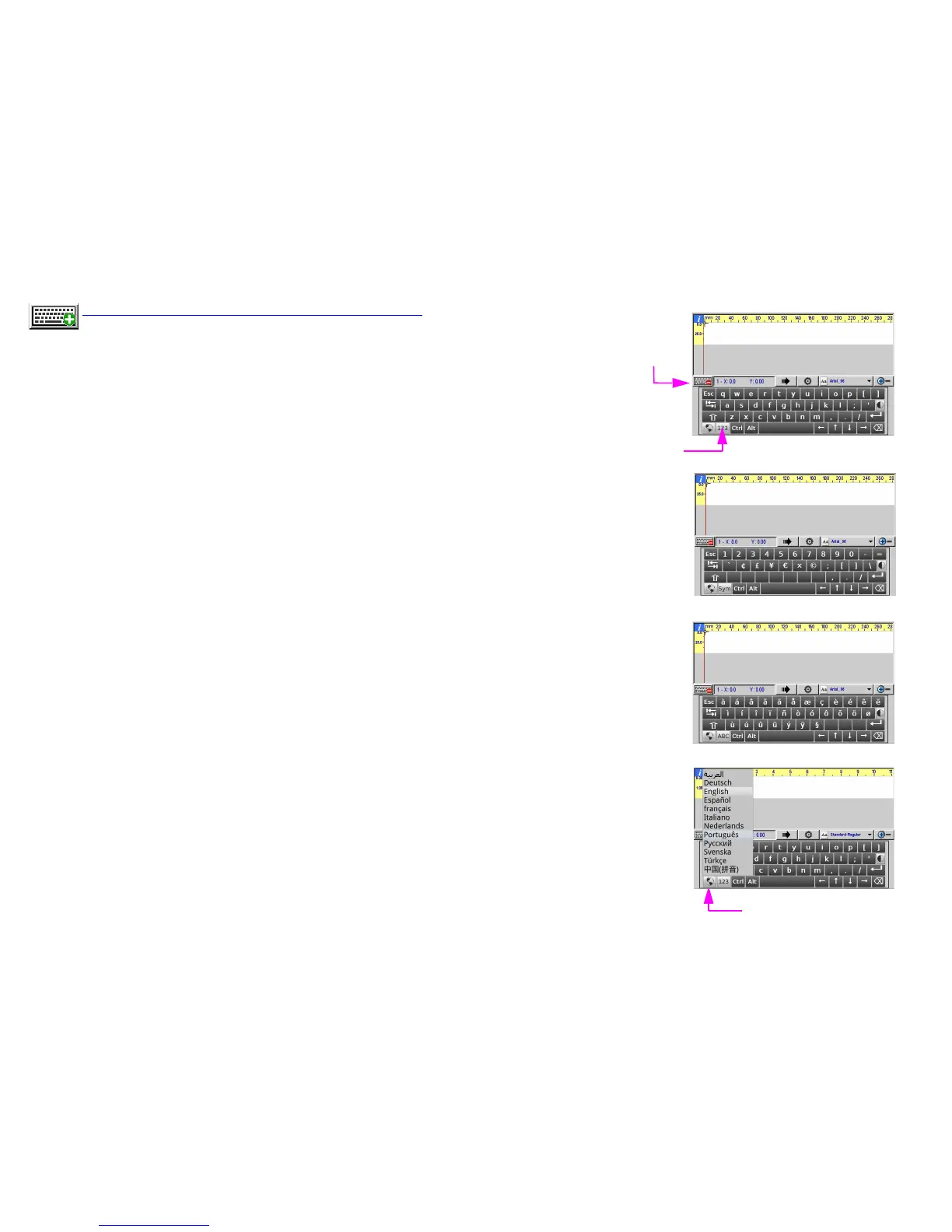

Keyboard Button:
Edit Screen only: Press once to show the keyboard; press again to hide it.
All other screens and dialogs: Keypad or keyboard appears when text or numeric input
box is touched.
Layer Select:
Pressing the Layer Select button cycles through; letters, numbers & symbols, and
extended characters.
Language Select Button:
Changes keyboard layout to that of the language selected. Changes keyboard layout
only; user interface language does not change.
ESC (Escape):
Undoes any changes made to any input entry box. If no changes made, hides the key-
pad or keyboard.
Edit screen full keyboard: always hides the keyboard.
Arrow Keys:
Moves highlighted fields or the cursor around in the Message Editor.
Tab:
Switches focus between highlighted fields in the Message Editor.
Backspace:
Deletes the character to the left of the cursor.
On the edit screen, deletes a highlighted (red) field.
Ctrl (Control) in Message Editor:
Amplifies the movement of the arrow keys.
Press Ctrl-Enter to insert a new line in a text field.
Can use ctrl-c then ctrl-v to copy and paste fields.
Shift:
Press Shift once to make the next character upper case.
Press Shift twice for shift lock. Press Shift again to exit shift lock.
Letters
Numbers & Symbols
Extended Characters
Language Select Button
Layer
Select
Keyboard
Button
