4000 Controllers Section 2: Controller Functions
Controller Operations Manual Rev C 8

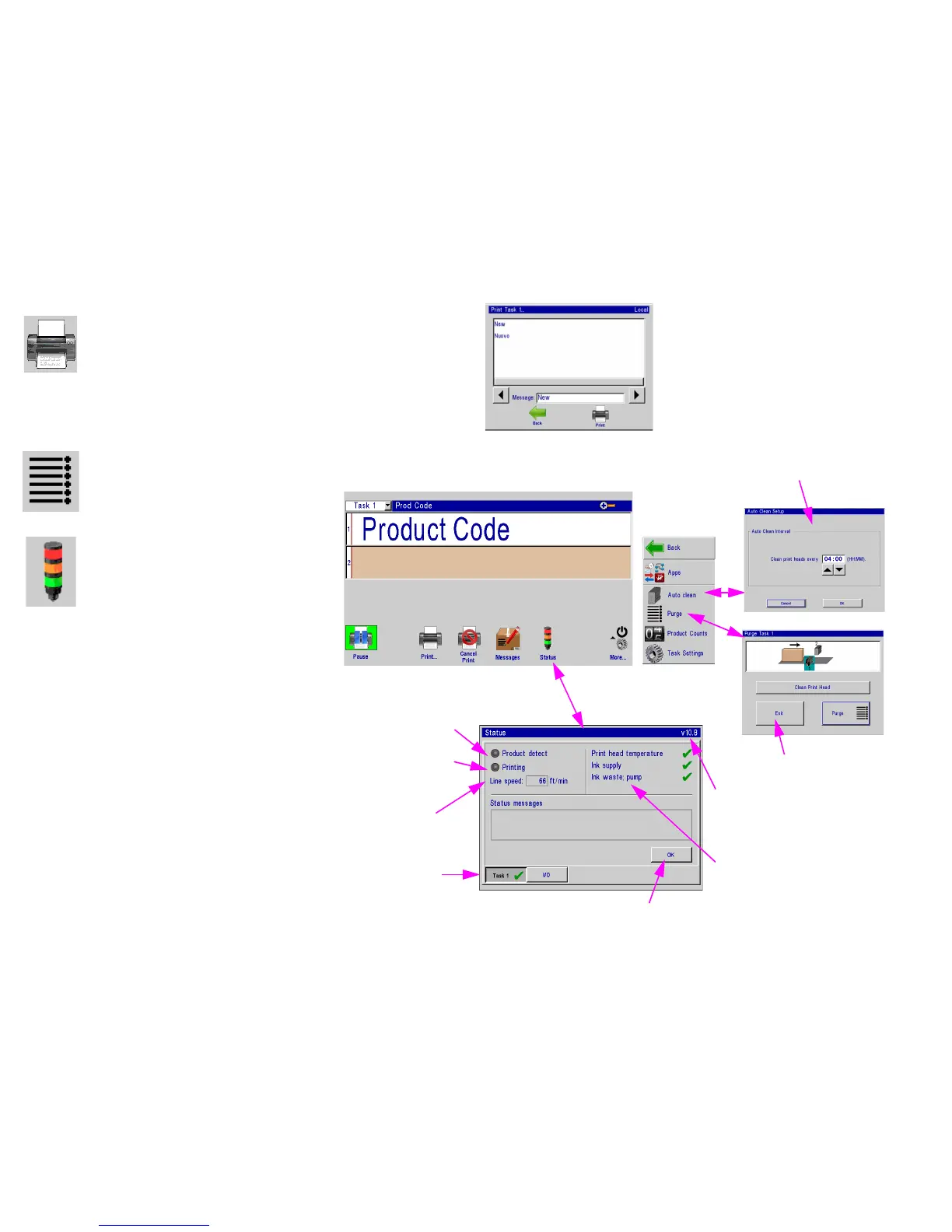

Print Button:
Allows access to the Print dialog box.
Select the desired message and press the Print button.
The message will print at the next photocell trigger.
Purge Button:
Fires all jets for a short period of time on
the selected print head.
Status Button:
Version of controller firmware is located in
the upper right corner.
Displays Product detect.
Displays Printing or Paused status.
Version of controller firmware.
Returns to home screen
Print head status.
Controller Firmware Version.
Press version number to display
detailed version information.
Return to Home Screen
Line speed
Print Status
Product
Detect
Selected Task
Adjusts the amount of
time between Automatic
Cleaning Cycles.
