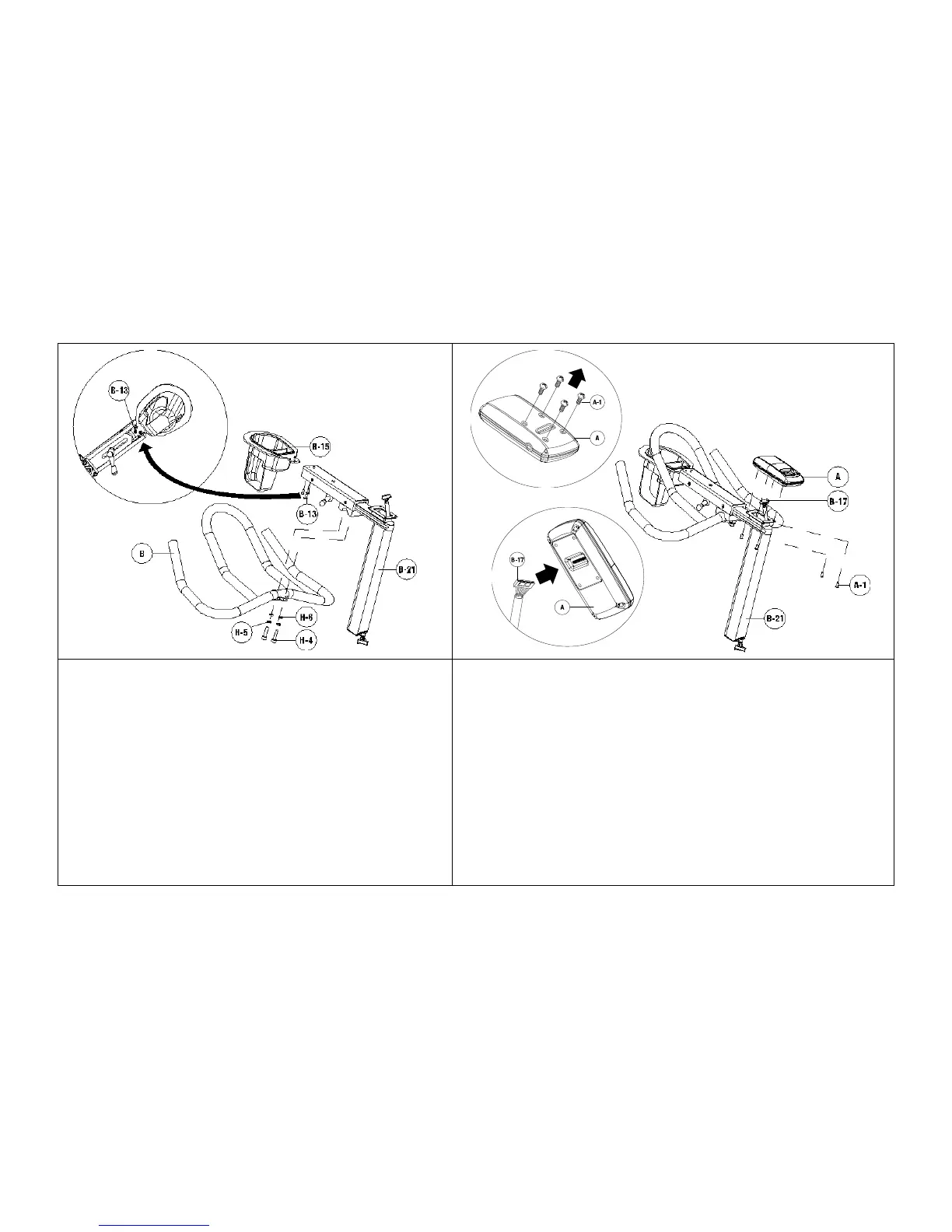

Attach handlebar (B) to the underside of the stem
assembly (B-21) with the two (2) stem fixing bolts
(H-4), two (2) lock washers (H-5) and two (2) flat
washers (H-6). Make the final angle adjustment
before fixing the bolts firmly.
Attach the water bottle cage assembly (B-15) to the
underside of the stem assembly (B-21) with the
three (3) Phillips fixing screws (B-13). Thread all
screws into place loosely before performing final
tightening.
Remove the four console fixing screws (A-1) from the back
of the console (A) and set them aside.
Plug the upper wire harness connector (B-17) into the back
of the console (A). Make sure the connection is complete.
Position the console above the mounting plate located on
the top on the stem assembly (B-21). Reinstall the four (4)
fixing screws (A-1) through the underside of the plate and
into the console. Tighten the four screws only after all four
have been started by hand.
To Next Page
