DieHard 200.71221 - Charger Parts and Wiring; Replacement Parts List; Charger Wiring Diagram

Parts

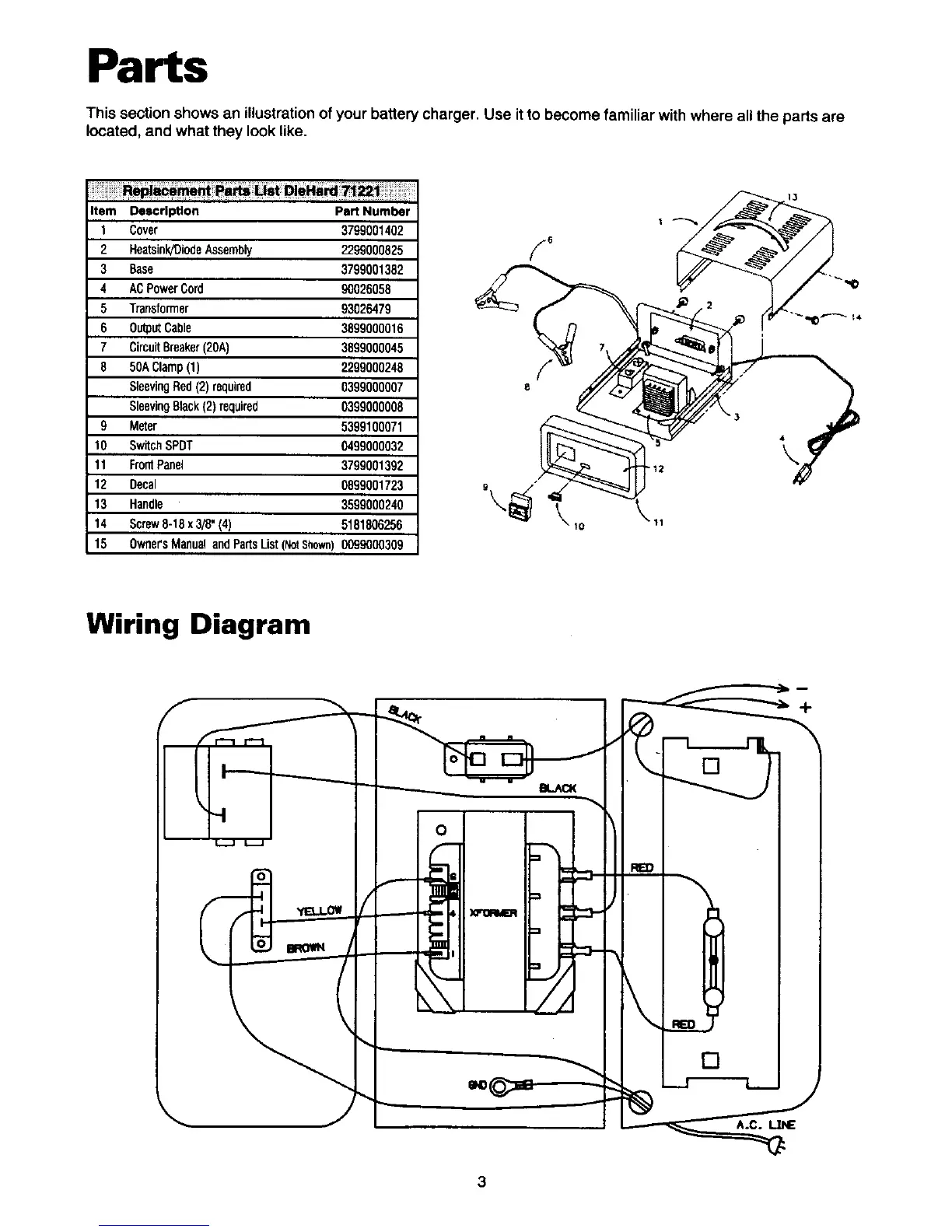

This section shows an illustrationof your battery charger• Use it to become familiar with where all the parts are
located, and what they look like.
Item Description Part Number
1 Cover 3799001402
2 Heatsink/OiodeAssembly 2299000825
3 Base 3799001382
4 ACPowerCord 90026058
5 Transformer 93026479
6 OutputCable 3899000016
7 CircuitBreaker(20A) 3899000045
8 50AClamp(1) 2299000248
SleevingRed(2)required 0399000007
SleevingBlack(2)required 0399000008
9 Meter 5399100071
10 SwitchSPDT 0499000032
11 FmntPanel 3799001392
12 Decal 0899001723
13 Handle 3599000240
14 Screw8-18x3/8"(4) 5181806256
15 0wner'sManualandPartsList(NotS_own)0099000309
Wiring Diagram
i
I '
)OrZZWBq
: ::3-
RED
