DieHard 200.71223 - Parts Identification; Replacement Parts List and Diagram

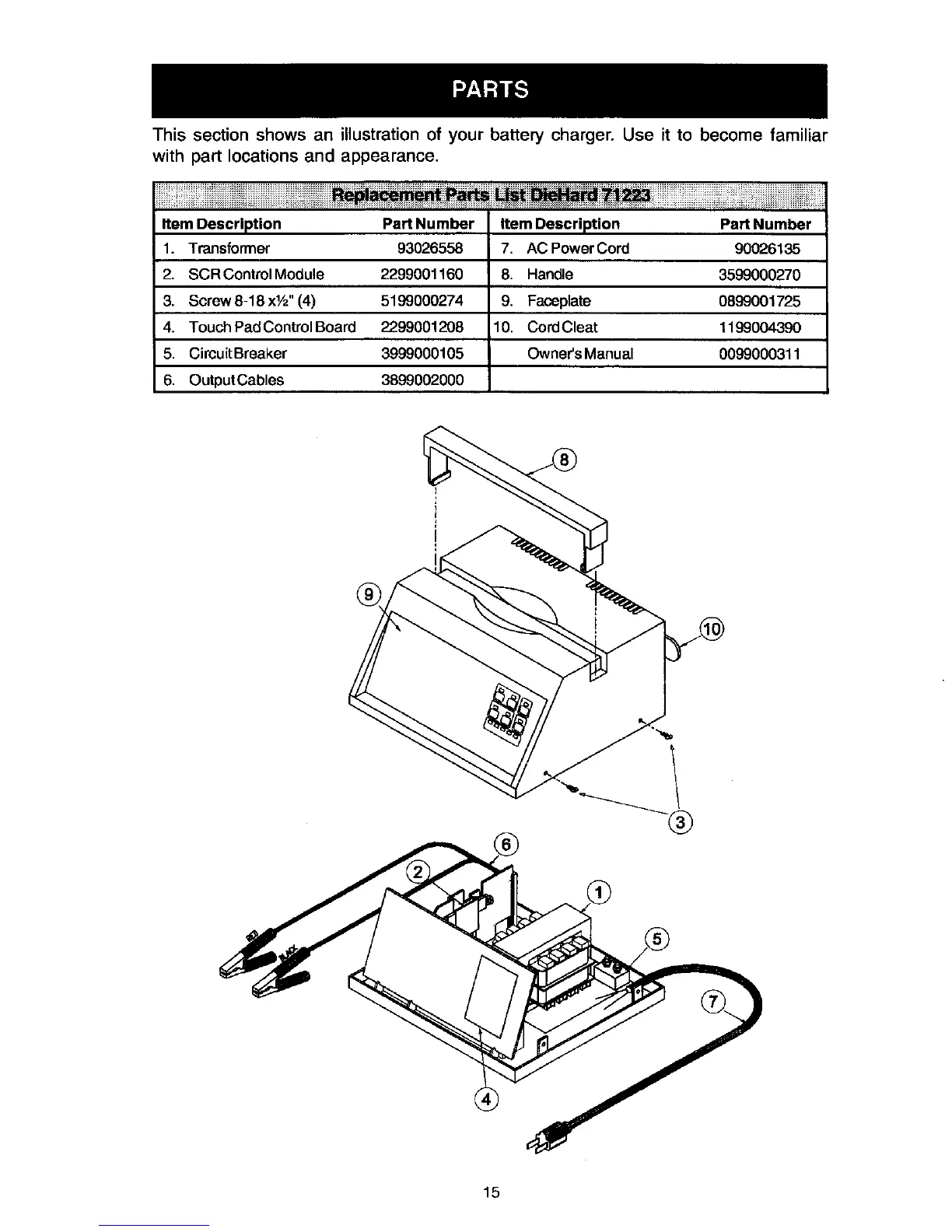

This section shows an illustration of your battery charger. Use it to become familiar
with part locations and appearance.
Item Description Part Number Item Description Part Number
1. Transformer 93026558 7. ACPowerCord 90026135
2. SCRControlModule 2299001160 8. Handle 3599000270
3. Screw 8-18 xY2"(4) 5199000274 9. Faceplate 0899001725
4. Touch Pad Control Board 2299001208 10. CordCleat 1199004390
5. Circuit Breaker 3999000105 Owner's Manual 0099000311
6. OutputCables 3899002000
15
