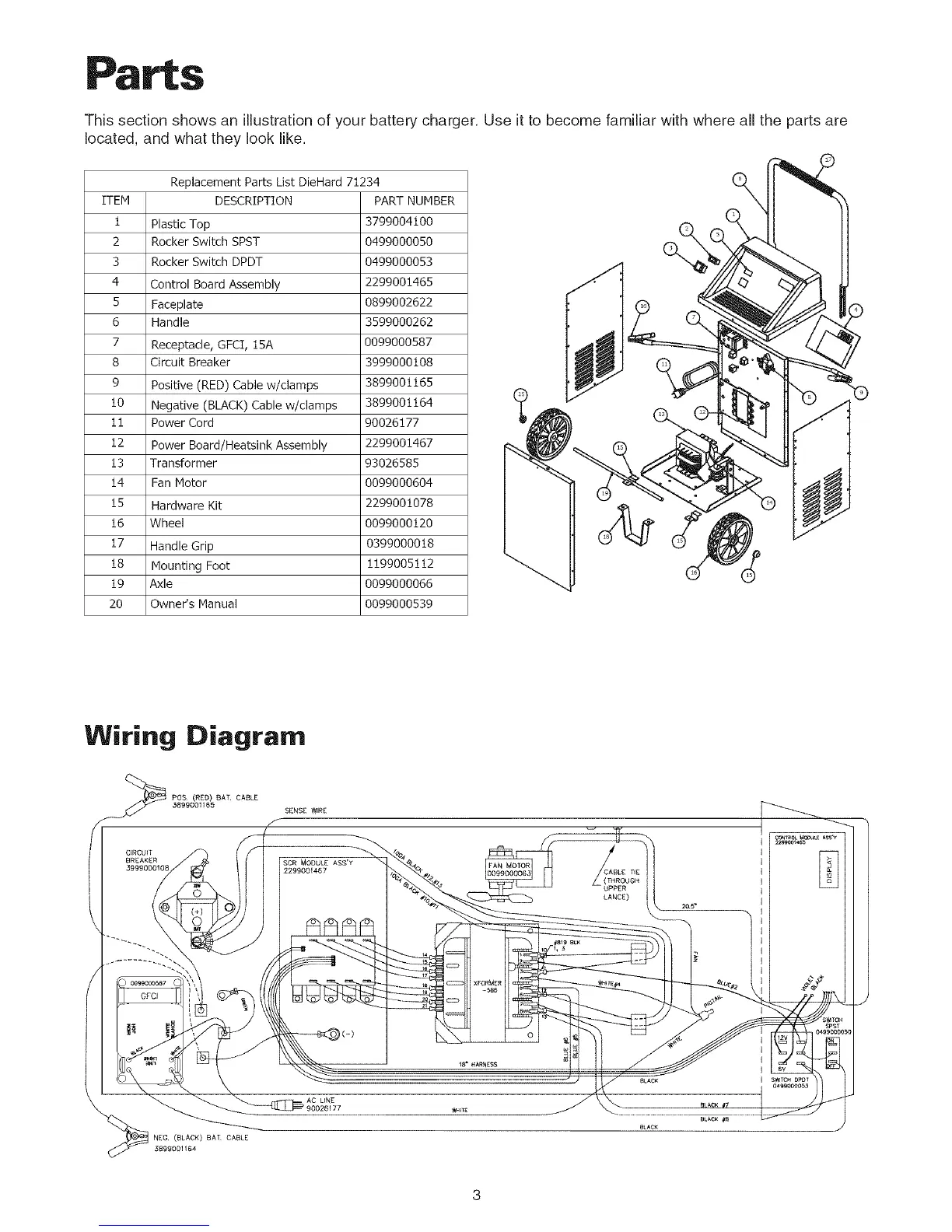

Parts
This section shows an illustration of your battery charger. Use it to become familiar with where all the parts are
located, and what they look like.
Replacement Parts List DieHard 71234
ITEM DESCRIPTION PART NUMBER
1 Plastic Top 3799004100
2 Rocker Switch SPST 0499000050
3 Rocker Switch DPDT 0499000053
4 Control Board Assembly 2299001465
5 Faceplate 0899002622
6 Handle 3599000262
7 Receptacle, GFCI, 15A 0099000587
8 Circuit Breaker 3999000108
9 Positive (RED) Cable w/clamps 3899001165
10 Negative (BLACK) Cable w/clamps 3899001164
1! Power Cord 90026177
12 Power Board/Heatsink Assembly 2299001467
13 Transformer 93026585
14 Fan Motor 0099000604
15 Hardware Kit 2299001078
16 Wheel 0099000120
17 Handle Grip 0399000018
18 Mounting Foot 1199005112
19 Axle 0099000066
20 Owner's Manual 0099000539
Wiring Diagram
POS, (RED) 8AT, CABLE
3899001165
CIRCUIT
BREAKER
3999000108
SENSE WERE
SCR MODULE ASS'Y
229900_467
I NEG, (BLACK) BAT CABLE
3899001164
