11. OPERATING INSTRUCTIONS
WARNING: A SPARK NEAR
THE BATTERY MAY CAUSE AN
EXPLOSION.
CHARGING A BATTERY
IN THE VEHICLE
1. Turn off all the vehicle’s
accessories.
2. Keep the hood open.
3. Clean the battery terminals.
4. Place the charger on a dry,
non-ammable surface.
5. Lay the AC/DC cables away
from any fan blades, belts,
pulleys and other moving parts.
6. Connect the battery, following
the precautions listed in
sections 6 and 7.
7. Connect the charger to a live,
grounded 120V AC outlet.
8. Select the charge rate.
9. Press the START button to
begin charging immediately. If
START button is not pressed
within thirty seconds after unit
was rst powered up, and
the charger detects a battery
that is properly connected,
the charging process will
automatically begin and nish.
Unit will automatically use the
BOOST rate for the rst 10
minutes and then change to
the Charge rate, if selected.
10. When charging is complete,
indicated by Charged/
Maintaining LED lit, or if you
are done, press STOP button,
disconnect the charger from
the AC power, disconnect the
clamp attached to vehicle’s
chassis, and nally remove the
clamp from battery terminal.
CHARGING A BATTERY
OUTSIDE OF THE VEHICLE
1. Place battery in a well-
ventilated area.
2. Clean the battery terminals.
3. Connect the battery, following
the precautions listed in
sections 6 and 7.
4. Connect the charger to a live
grounded 120V AC outlet.
5. Select the charge rate.
6. Press the START button to
begin charging immediately. If
START button is not pressed
within thirty seconds after unit
was rst powered up, and
the charger detects a battery
that is properly connected,
the charging process will
automatically begin and nish.
Unit will automatically use the
BOOST rate for the rst 10
minutes and then change to
the Charge rate, if selected.
7. When charging is complete,
indicated by Charged/
Maintaining LED lit, or if you
are done, press STOP button,
disconnect the charger from
the AC power, disconnect the
negative clamp, and nally the
positive clamp.
8. A marine (boat) battery must
be removed and charged on
shore.

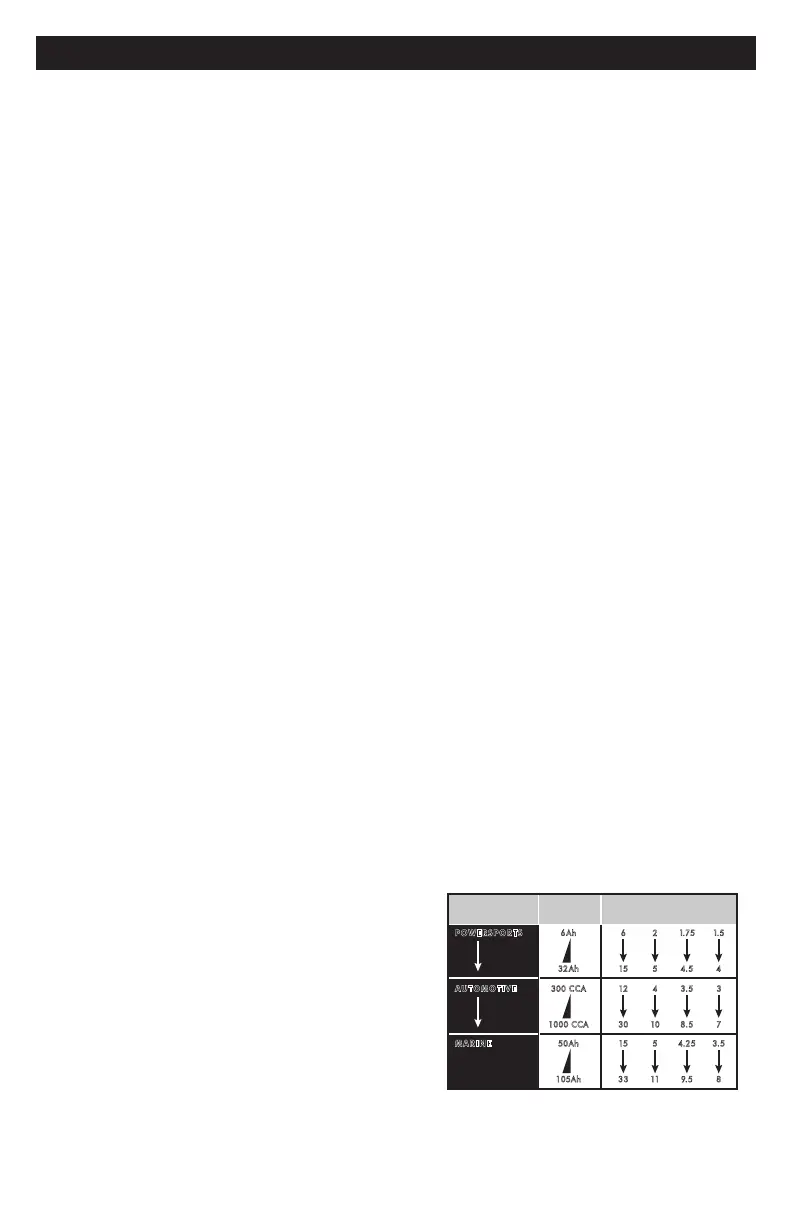

CHARGE TIME
Charge time will depend on battery
size, as depicted in the chart below.
APPLICATION
BATTERY
SIZE
CHARGING TIME (Hours)
2A 6A 8A 10A
POWERSPORTS 6Ah 6
32 Ah 15
AUTOMOTIVE 300 CCA 12
1000 CCA 30
MARINE 50 Ah 15
105Ah 33
2
5
4
10
5
11
1.75
4.5
3.5
8.5
4.25
9.5
1.5
4
3
7
3.5
8
Times are based on a 50% discharged
battery and may change, depending
on age and condition of battery.
