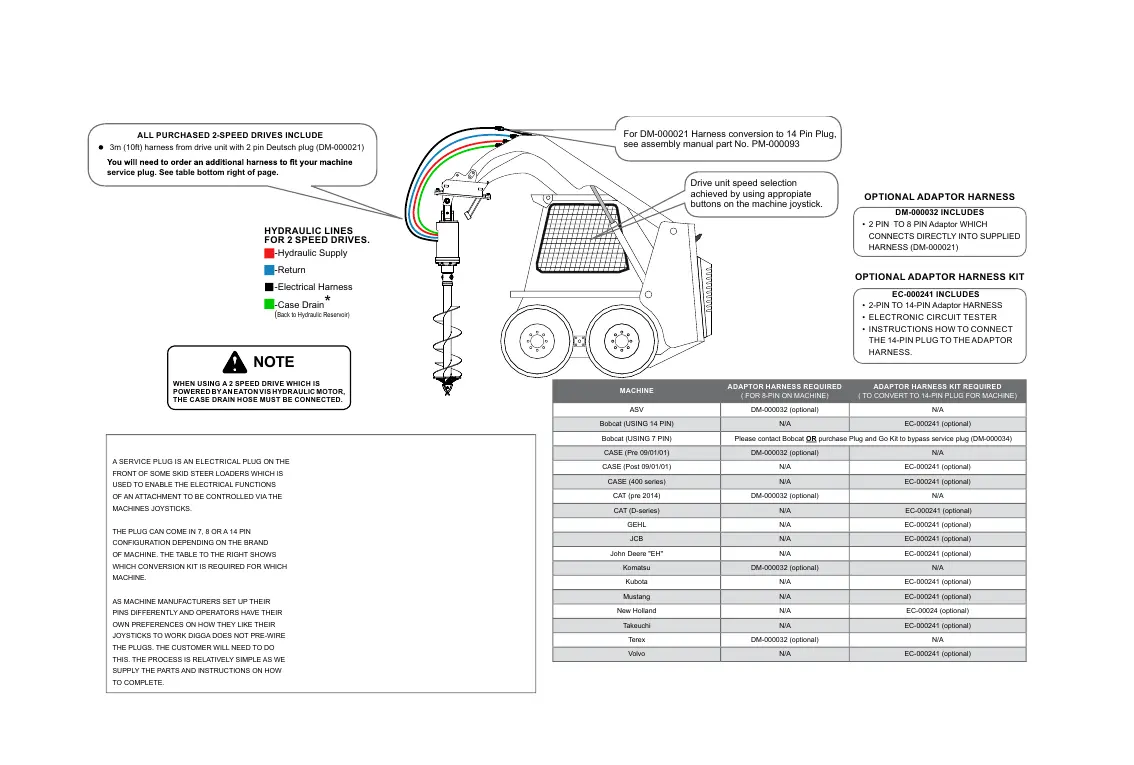

ELECTRICAL LAYOUT FOR 2 SPEED DRIVES
USED ON SKID STEER LOADERS
FITTED
WITH SERVICE PLUG
TUOYAL LACIRTCELE DEEPS 2
FOR PD DRIVE UNITS
REVISION DATE: OCTOBER 2017
Drive unit speed selection
achieved by using appropiate
buttons on the machine joystick.
For DM-000021 Harness conversion to 14 Pin Plug,
see assembly manual part No. PM-000093
MACHINE
ADAPTOR HARNESS REQUIRED
( FOR 8-PIN ON MACHINE)
ADAPTOR HARNESS KIT REQUIRED
( TO CONVERT TO 14-PIN PLUG FOR MACHINE)
ASV DM-000032 (optional) N/A
Bobcat (USING 14 PIN) N/A EC-000241 (optional)
Bobcat (USING 7 PIN)
Please contact Bobcat OR purchase Plug and Go Kit to bypass service plug (DM-000034)
CASE (Pre 09/01/01) DM-000032 (optional) N/A
CASE (Post 09/01/01) N/A EC-000241 (optional)
CASE (400 series) N/A EC-000241 (optional)
CAT (pre 2014) DM-000032 (optional) N/A
CAT (D-series) N/A EC-000241 (optional)
GEHL N/A EC-000241 (optional)
JCB N/A EC-000241 (optional)
John Deere "EH" N/A EC-000241 (optional)
Komatsu DM-000032 (optional) N/A
Kubota N/A EC-000241 (optional)
Mustang N/A EC-000241 (optional)
New Holland N/A EC-00024 (optional)
Takeuchi N/A EC-000241 (optional)
Terex DM-000032 (optional) N/A
Volvo N/A EC-000241 (optional)
HYDRAULIC LINES
FOR 2 SPEED DRIVES.
-Hydraulic Supply
-Return
-Electrical Harness
-Case Drain
*
(Back to Hydraulic Reservoir)
WHEN USING A 2 SPEED DRIVE WHICH IS
POWERED BY AN EATON VIS HYDRAULIC MOTOR,
THE CASE DRAIN HOSE MUST BE CONNECTED.
NOTE
ALL PURCHASED 2-SPEED DRIVES INCLUDE
• 3m (10ft) harness from drive unit with 2 pin Deutsch plug (DM-000021)
DM-000032 INCLUDES
• 2 PIN TO 8 PIN Adaptor WHICH
CONNECTS DIRECTLY INTO SUPPLIED
HARNESS (DM-000021)
EC-000241 INCLUDES
• 2-PIN TO 14-PIN Adaptor HARNESS
• ELECTRONIC CIRCUIT TESTER
• INSTRUCTIONS HOW TO CONNECT
THE 14-PIN PLUG TO THE ADAPTOR
HARNESS.
service plug. See table bottom right of page.
OPTIONAL ADAPTOR HARNESS
OPTIONAL ADAPTOR HARNESS KIT
SERVICE PLUG INFORMATION
A SERVICE PLUG IS AN ELECTRICAL PLUG ON THE
FRONT OF SOME SKID STEER LOADERS WHICH IS
USED TO ENABLE THE ELECTRICAL FUNCTIONS
OF AN ATTACHMENT TO BE CONTROLLED VIA THE
MACHINES JOYSTICKS.
THE PLUG CAN COME IN 7, 8 OR A 14 PIN
CONFIGURATION DEPENDING ON THE BRAND
OF MACHINE. THE TABLE TO THE RIGHT SHOWS
WHICH CONVERSION KIT IS REQUIRED FOR WHICH
MACHINE.
AS MACHINE MANUFACTURERS SET UP THEIR
PINS DIFFERENTLY AND OPERATORS HAVE THEIR
OWN PREFERENCES ON HOW THEY LIKE THEIR
JOYSTICKS TO WORK DIGGA DOES NOT PRE-WIRE
THE PLUGS. THE CUSTOMER WILL NEED TO DO
THIS. THE PROCESS IS RELATIVELY SIMPLE AS WE
SUPPLY THE PARTS AND INSTRUCTIONS ON HOW
TO COMPLETE.
