ALL 2-SPEED DRIVES
• 3m (10ft) harness with 2 pin male Deutsch plug
factory installed in drive unit at time of order
• Re-order Part Number (DM-000021)
HYDRAULIC LINES
FOR 2 SPEED DRIVES.

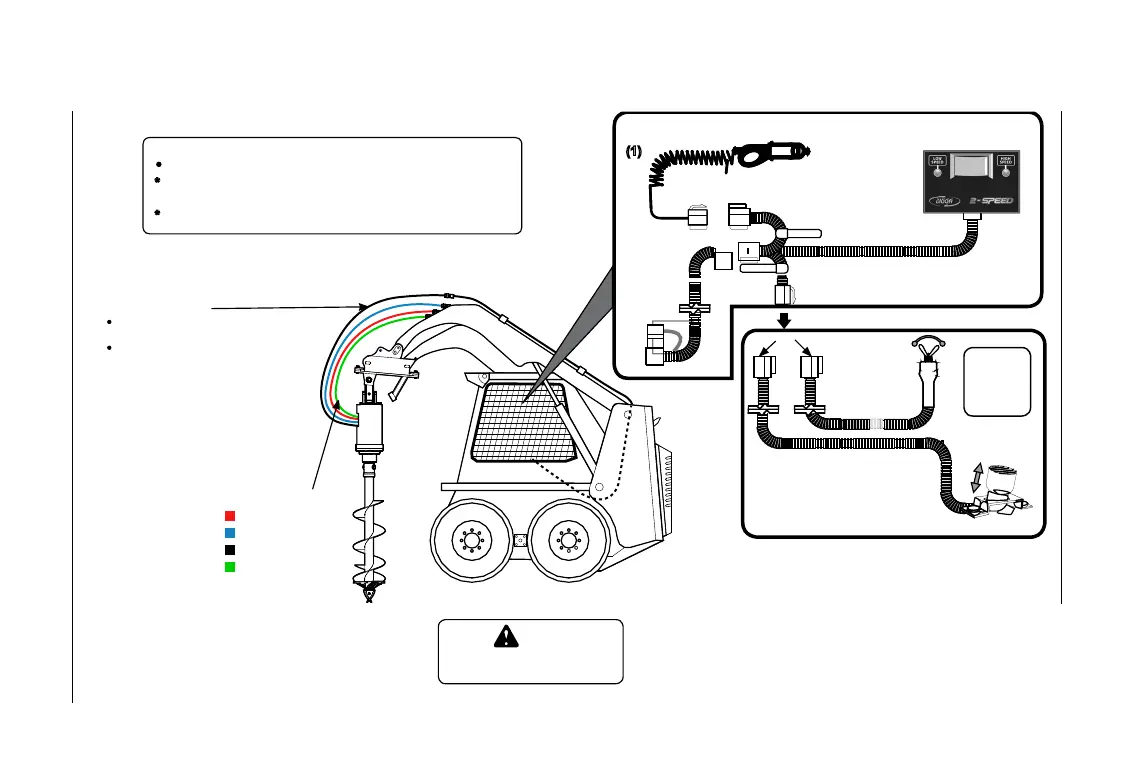

2 SPEED ELECTRICAL LAYOUT FOR PD DRIVES
USED ON SKID STEER LOADERS
NOT
FITTED WITH SERVICE PLUG
ALL PURCHASED 2-SPEED DRIVES INCLUDE
• 3m (10ft) harness from drive unit with 2 pin Deutsch plug
*Optional in cab controller with cigarette lighter, power supply and 6m (20ft)
extension harness sold separately
(1)
*Optional Joystick controls and foot controls sold separately (2)
2 SPEED ELECTRICAL LAYOUT
FOR PD DRIVE UNITS
-Hydraulic Supply
-Return
-Electrical Harness
-Case Drain
*
(Back to Hydraulic Reservoir)
RELEASE DATE: AUGUST 2014
* NOTE:
speed drives (2k motor series)
WHEN USING A 2 SPEED DRIVE WHICH IS
POWERED BY AN EATON VIS HYDRAULIC MOTOR,
THE CASE DRAIN HOSE MUST BE CONNECTED.
NOTE
OPTIONAL
EXTRAS
TO MAKE
OPERATION
EASIER
(2)
(1)
PLUG AND GO KIT ELECTRICAL
(PART NO. DM-000034)
DIGGA 2-SPEED
CONTROLLER
(Part No. DM-000013)
6m Boom
Harness
DM-000024
REMOTE
SUPPLY
OVERALL HARNESS-1500MM
REMOTE
LEAD
500MM
SUPPLY
LEAD
500MM
Cigarette Power Lead 12V/24V
(TC-000012)
OPTIONAL
2 Position
Toggle Switch
Joy Stick mount
(DM-000026)
OR
OPTIONAL
Floor mounted switch
(DM-000030)
Case drain not required on STD flow 2
High flow 2 speed drives (VIS motor series)
require a case drain to be connected
High flow 2 speed drives (VIS motor series)
require a case drain to be connected
