42 PM-000251 - Operator’s Manual - PDD-PD50 - June 2022
Electrical and Hydraulic Schematic Drawings

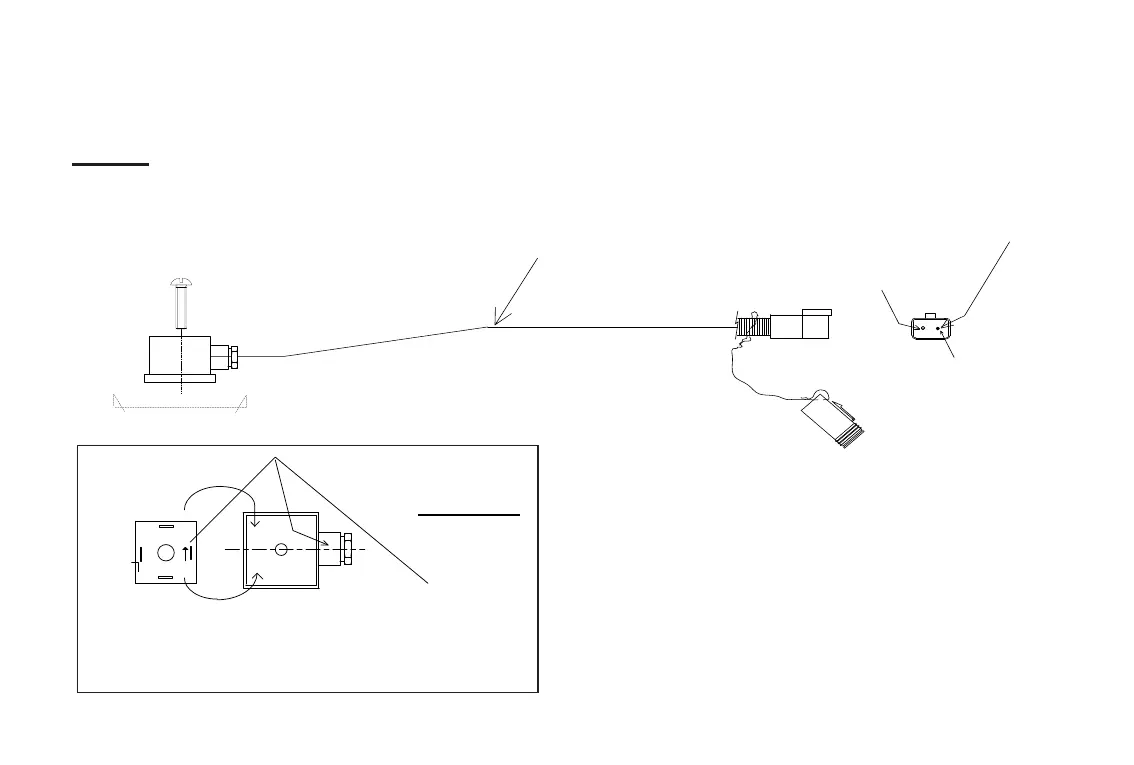

Below is a copy of the motor harness part number DM-000021 used on 2 Speed drive units.





















   
 


      
   
  
 
 


































    






12 2 Speed Installations-Electrics
No electrical harnesses or speed controllers are used on single speed Planetary drive units.
NOTE










Note:
On the Hirschmann plug, the two points 1 and 2 are terminated.
Terminal 1 is red and is positive(+). Terminal 2 is to be black and
is negative(-). Note the orientation of the terminal block.
Hirschmann plug with clear polycarbonate
housing (with 12V/24V DC LED) which
connects to the solenoid valve (located
within the hood of the drive unit).
DM-000021 Harness
New Hirscmann plug in use, from April 2022.
The clear plug contains an LED to visually indicate, power is on.
