M o d e l S M - 5 3 00 O p e r a t i o n M a n u a l | 36

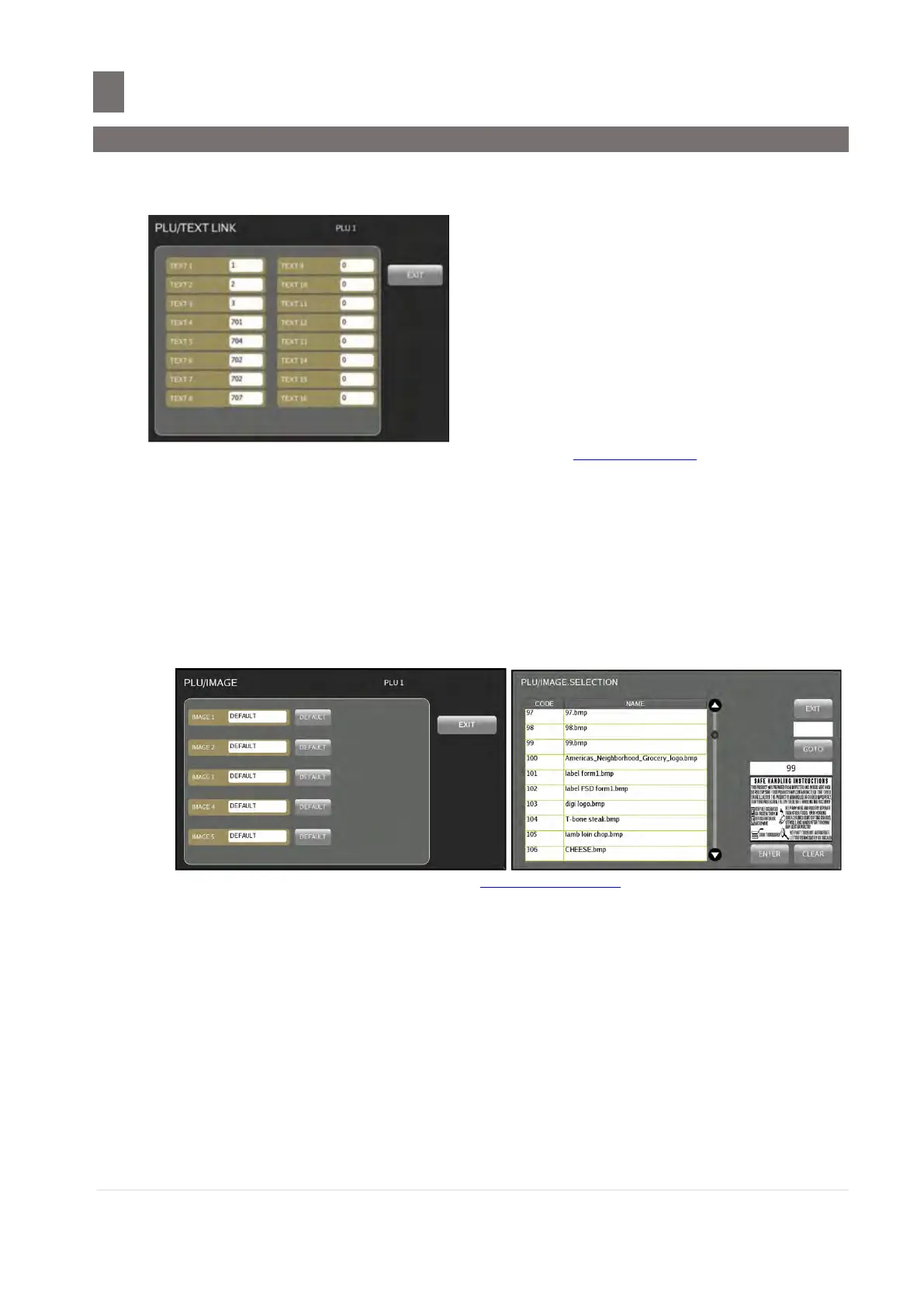

53) Text Link
Text is used for printing the fixed data on label such as ‘Unit Price’, ‘Packed Date’ etc and can
printed on a Free Format with Text print area
Note: Touch text area to select text that had programmed in text programming
54) IMAGE
Image Printing on Label Entry
Image can be printed on a Free Format with the image print area. Maximum 5 images can
be printed on one label. Image Number can be selected from Master Image’s data
programmed in advance.
a. Touch [IMAGE] key.
b. Touch desired image area to image selection (e. g. IMAGE 1)
c. Touch desired Image and touch [ENTER] key to select. To Clear Touch [CLEAR] key.
d. Enter Image Number by keypad and Press [GO TO] key to go to other image.
Note 1: To Program Image for selection, check Image Programming
Note 2: Touch [ARROW DOWN] key to go to the next page to program Image 6 to 10
Note 3: Touch [DEFAULT] key to return image to default.
55) Storage Temp 1 & 2
Storage Temperature, where the item storing environment data
a. Touch [STORAGE TEMP.1 (+)] or [STORAGE TEMP.2 (+)] key.
b. Enter the Storage Temperature value by using keypad.
Note: after touched the (+) will change to (-) and reversed.
