XBee-PRO 900HP Mechanical Drawings

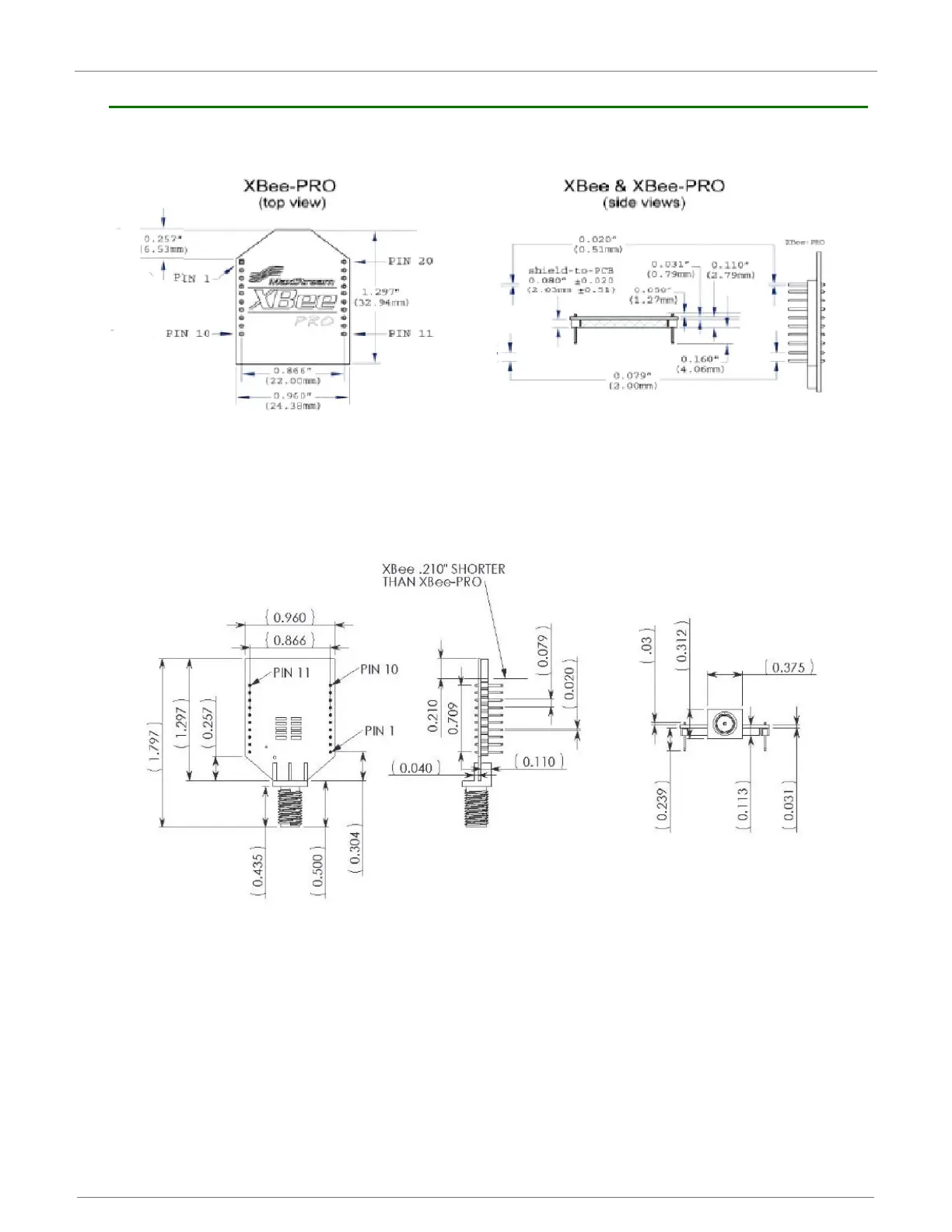

MechanicaldrawingsoftheXBee‐PRO900HPRFModules(antennaoptionsnotshown).Alldimensionsareininches.

.
