96 I/O Guide 14
Configuring Hardware Setup
(Audio Interfaces)
The Main tab of the Hardware Setup dialog is
where you define what physical ports are routed
to Pro Tools input and output channels. Think
of this window as a patchbay that allows you to
route any of the physical inputs or outputs to
Pro Tools mixer inputs and outputs.
The Main tab also provides controls for session
Sample Rate, synchronization settings, and to
define whether Expansion port or Legacy port
peripherals are active. Sample Rate can only be
changed when there is no session open.
Additional tabs are available to configure other
parameters on each audio interface (such as set-
ting operating levels).
You must select an HD I/O from the Peripherals
column in order to change settings on a specific
interface in expanded I/O system.

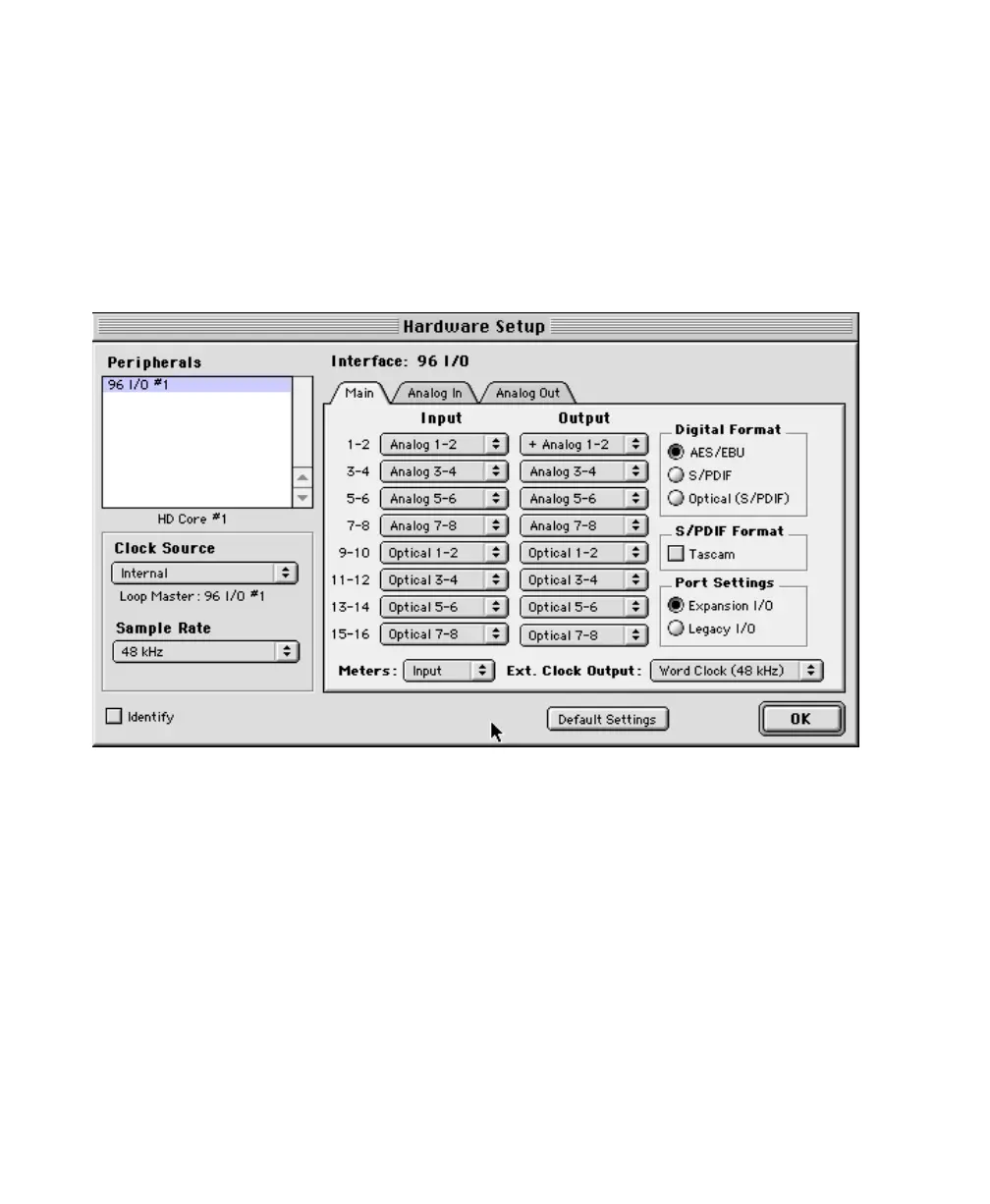

Hardware Setup dialog with Main tab selected
