Chapter 5: Mbox 2 Mini Hardware Overview 29
chapter 5
Mbox 2 Mini Hardware Overview
Mbox 2 Mini Front Panel Features
The Mbox 2 Mini front panel has the following features:
Headphone Output
Use the Headphone Output to connect a stereo
headphone with a 1/4-inch stereo connector.
Headphone/Monitor Output Level
The Headphone/Monitor Output knob adjusts
the output level of the Headphone Output and
Mon Out (Monitor Output). In Pro Tools, this is
the signal that is routed to Outputs 1–2.
Mon (Monitor) Mute Switch
This switch mutes the Monitor Outputs, with-
out muting the Headphone Output. This switch
does not affect recording.

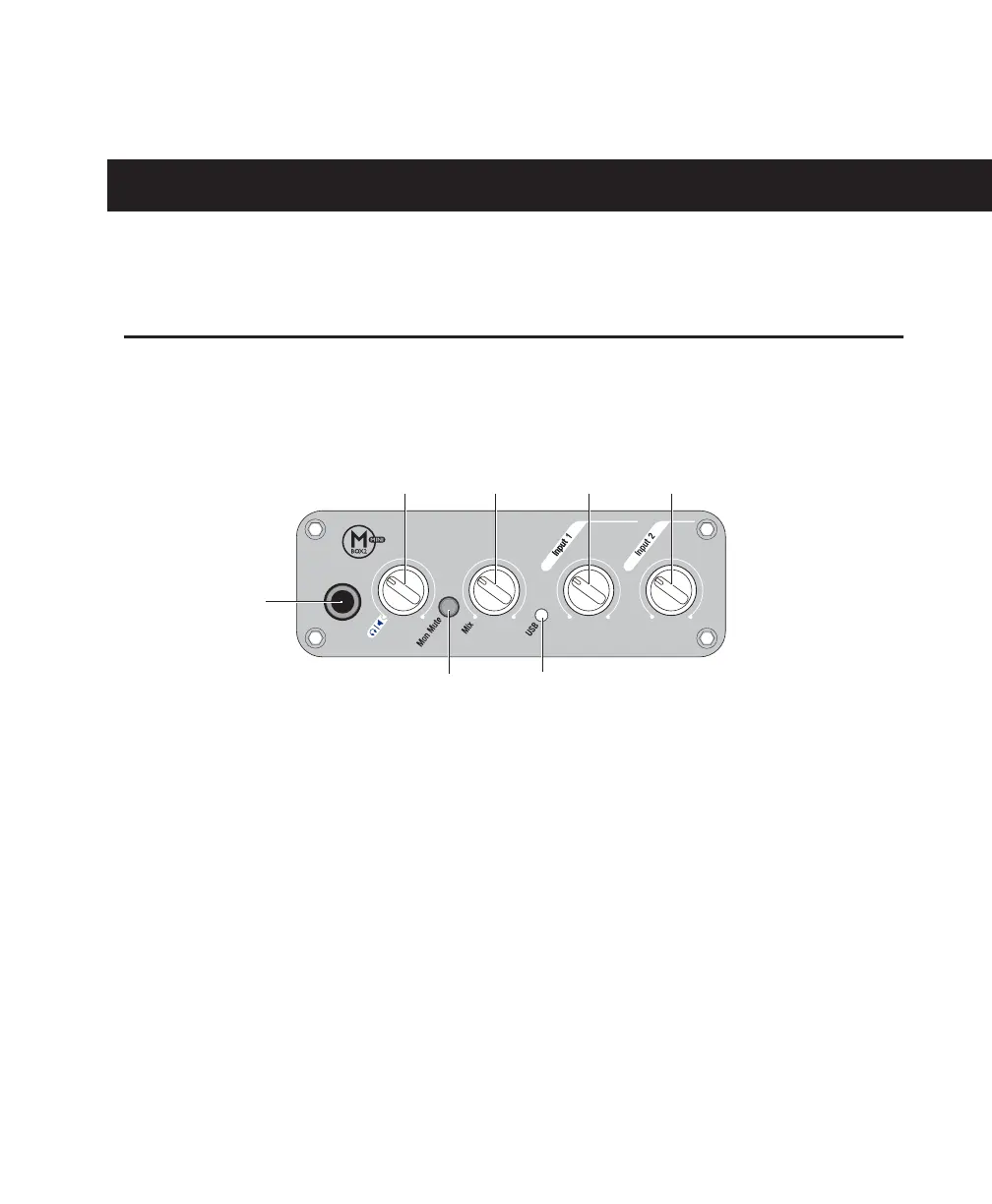

Figure 1. Mbox 2 Mini front panel
USB
Headphone/Monitor
Headphone
LED
Output Level
Output
Input 1
Gain
Input 2
Gain
Monitor Mute
Mix (Ratio)
