Digilock Curve Keypad Basic - Screw Post - Pin Connector Installation; For Door Thickness Measuring between 0�01 - 0�16 [0�2 Mm - 4 Mm]; Required Components; QR Code Sticker Placement

INSTALL GUIDE
Keypad & RFID
|
Basic & Advanced
10
For door thickness measuring between 0�01” - 0�16” [0�2mm - 4mm]
2 - Locking Nuts 1*- Deep Socket Nut Driver [3/8”]
* Not Included
For illustration, a keypad front unit with a bolt rear unit is shown�
Note: Mounting hardware requires a torque level of: 21.4 kgf/cm² ±20% for hand or powered tools to insure proper lock functionality.

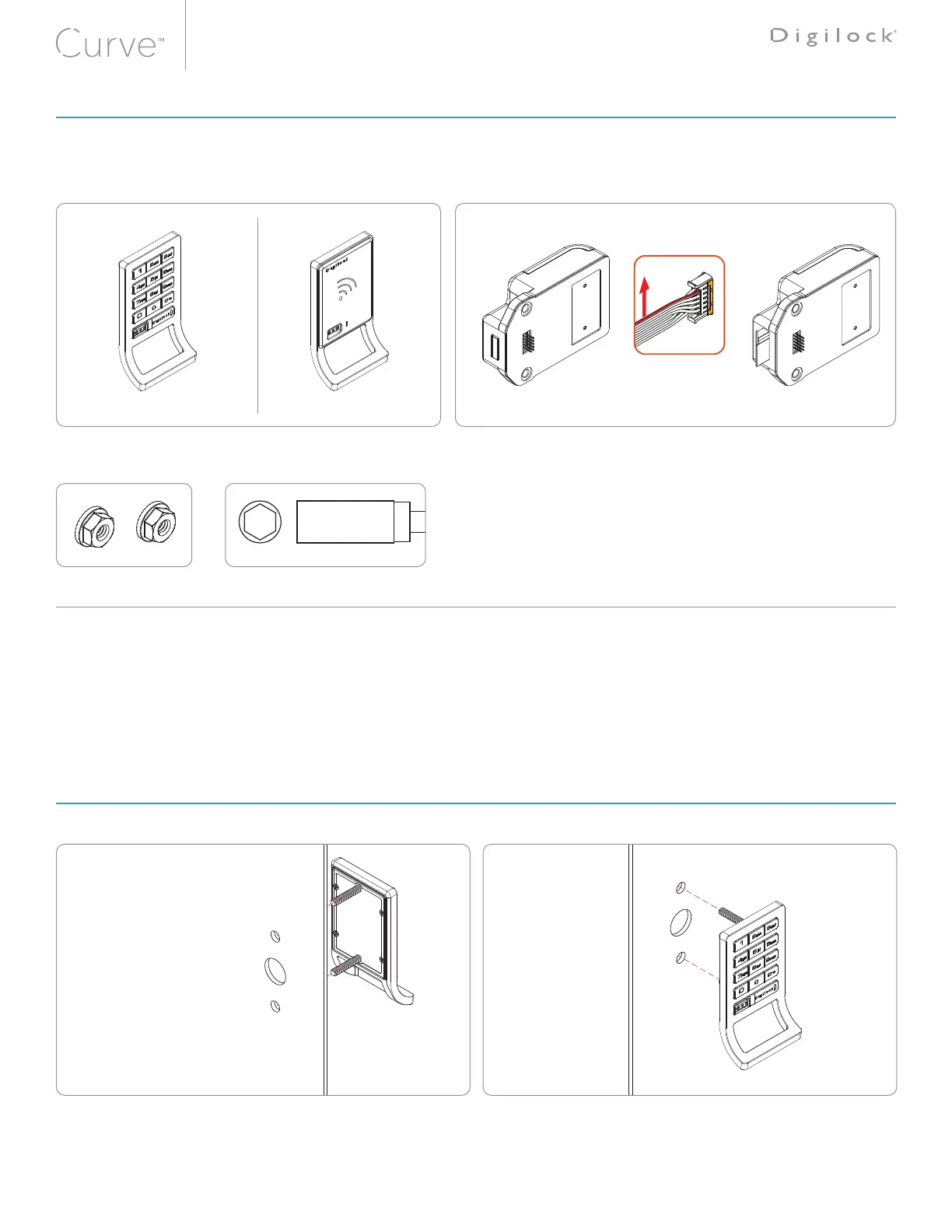

Required Components
Front Unit
RFID Standard BodyKeypad Standard Body
Rear Unit
Deadbolt - Pin Deadlatch - Pin
Rear View Front View
1
Insert the front unit screw posts through the doors mounting holes.
Cable Connector
Orientation
SCREW POST - PIN CONNECTOR INSTALLATION
LOCK INSTALLATION STEPS (1-4)
