Digilock Curve Keypad Basic - Strike Installation Steps

INSTALL GUIDE
Keypad & RFID
|
Basic & Advanced
4
Door Frame
0.32 in
[8mm]
Mark Here
Door Frame
Drill Pilot
Holes Here
Door Frame
0.32 in
(8 mm)
Door Frame
0.32 in
[8mm]
Mark Here
Door Frame
Door Frame

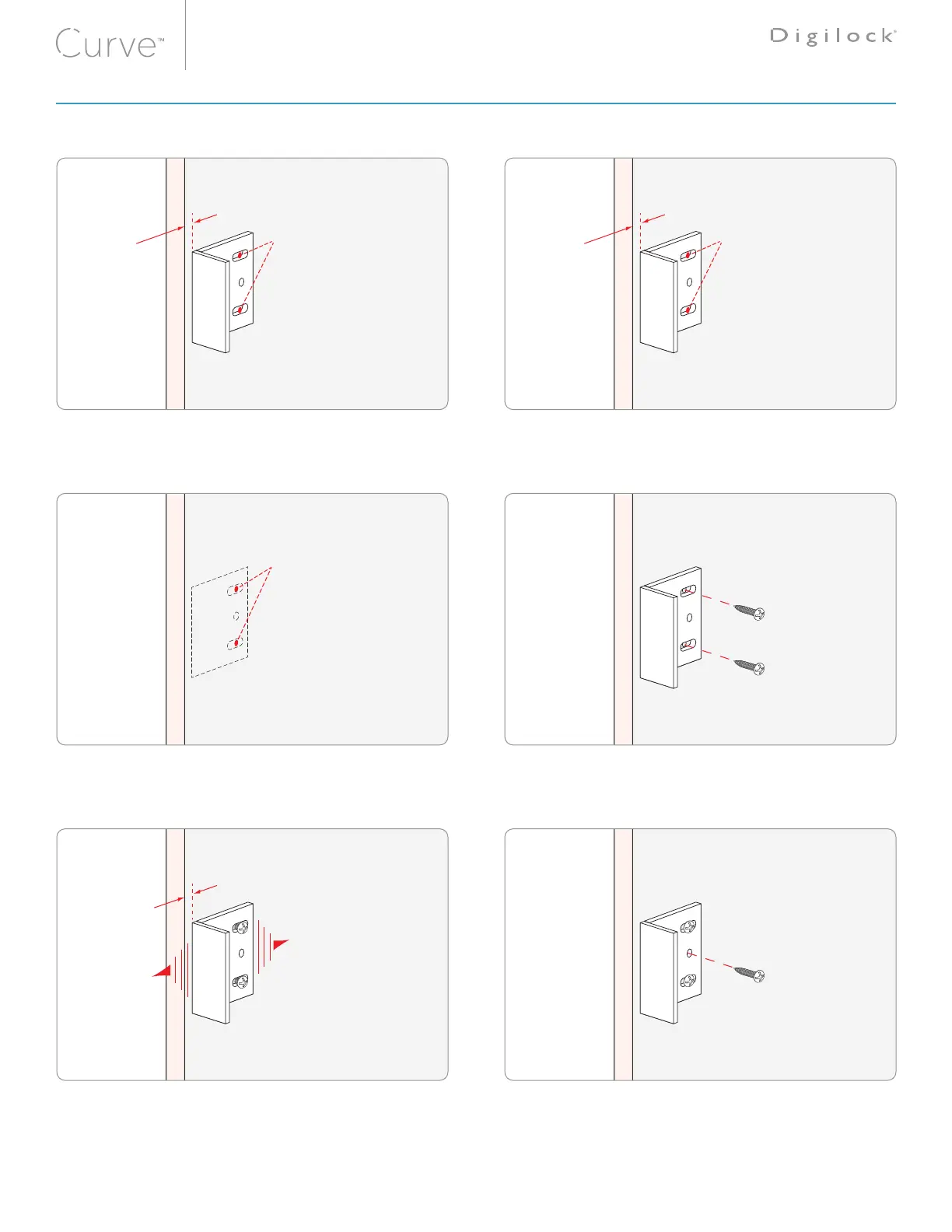

Shown below Angled Strike Plate
Position the strike plate on the door frame aligning it with the
center of the lock’s mounting holes.
" drill bit.
Adjust the strike plate to the proper position 0.32" [8 mm]
from the door edge then tighten the self tapping screws.
Insert and tighten the remaining self tapping screw into the
center opening to secure strike position.
Allow 0.32" [8 mm] from door edge and mark the position of
the adjustment slot holes.
Position the strike plate and the self tapping screws into the
adjustment slot holes. Do not tighten the screws.
1
3
5
2
4
6
STRIKE INSTALLATION STEPS
