26
All measurements in thousandths
of an inch and millimeters
.300
7.62 (mm)
use 5/16" bit
.905
23 (mm)
.905
23 (mm)
.300
7.62 (mm)
.750
19.05 (mm)
use 3/4" bit
001.1
)mm( 9.72
001.1
)mm( 9.72
001.1
)mm( 9.72
001.1
)mm(9.72
ALIGN EDGE OF
STRIKE PLATE HERE
FOR LEFT
CLOSING DOOR
ALIGN EDGE OF
STRIKE PLATE HERE
FOR RIGHT
CLOSING DOOR
ALIGN EDGE OF
STRIKE PLATE HERE
FOR LEFT
CLOSING DOOR
ALIGN EDGE OF
STRIKE PLATE HERE
FOR RIGHT
CLOSING DOOR
CENTER LINE
CENTER LINE
2.01 in
(
51 mm
)
1.98 in
(
50
mm
)
2.19 in
(
56
mm
)
.300
(
8
mm
)
2x
0.400/0.425 in DEEP
(
10/11
mm
)
.75
(
19
mm
)
R 0.125
(
3
mm
)
4x
2.72 in
(
69 mm
)
2.68 in
(
68
mm
)
NOTE: Templates may not print to scale. Double check all measurements before drilling door.
If printing this page, turn off any auto scaling in printer setup and print at 100%.
Note: Use the corresponding side of the template for mounting the lock.

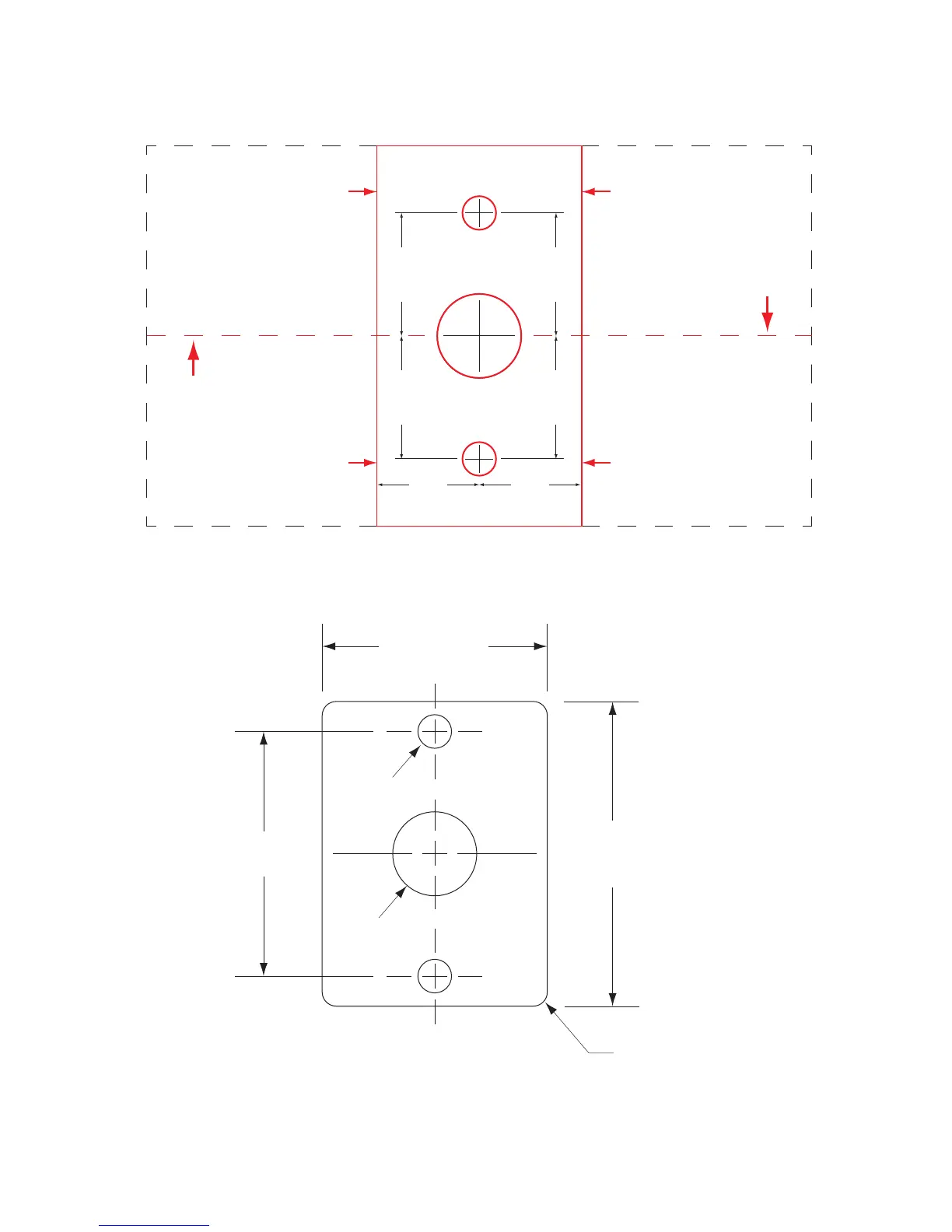

Lock Mounting Drill Template
Door Mortise Template: Standard Body
