DigiPos Retail Active 8000 - Front Side Components; With Cover Fitted; With Cover Removed

DigiPoS Retail Active 8000
2

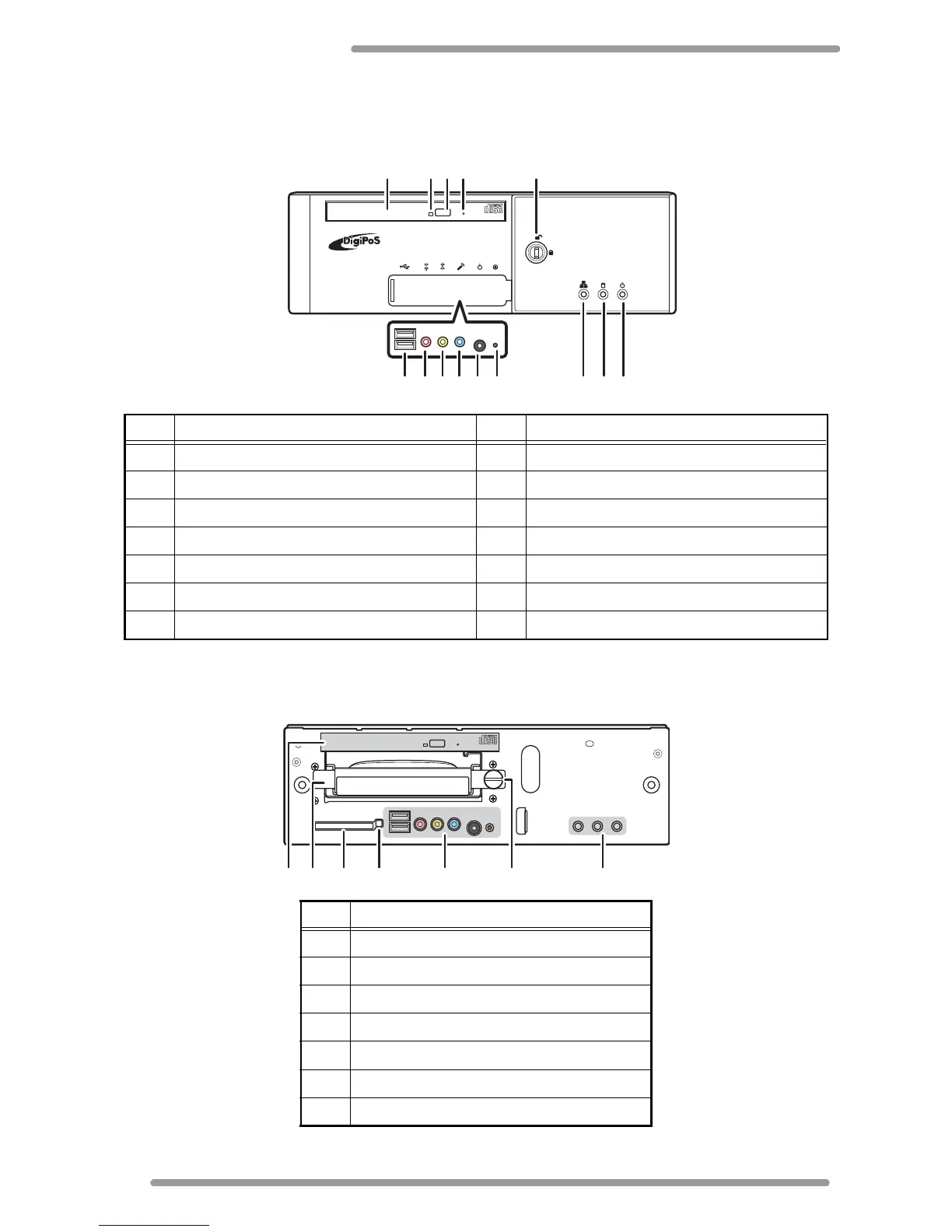

Front Side Components
With Cover Fitted
With Cover Removed
No. Name No. Name
1 CD-ROM drive 8 Line-out port
2 CD-ROM LED 9 Microphone port
3 CD-ROM drawer open button 10 Power button
4 CD-ROM drawer manual open catch 11 Reset button
5 Keylock 12 LAN status LED
6 Two USB ports 13 HDD status LED
7 Line-in port 14 Power LED
No. Name
1 CD-ROM
2 HDD tray
3 Flash card bay
4 Flash card eject button
5 See previous diagram
6 HDD tray screw
7 See previous diagram
RETAIL ACTIVE
6 7 8 9 10 11 12 13 14
2 3 4 51
3 4 5 71 2 6
