Making Connections
By using the ports on the rear side of your DigiPoS Retail Active 8000, you can connect it
to various devices. Refer to the procedures described in this section to make connections
to these ports.
Connecting the Power
Before powering on the DigiPoS Retail Active 8000, you need to follow the steps below to
connect the power cord and the power adapter.
1.Connect the end of the power adapter to the rear side of the DigiPoS Retail Active
8000.
Note: To avoid danger, always ensure that the power cord is NOT connected to
the mains supply before connecting the power adapter to the DigiPoS Retail
Active 8000.

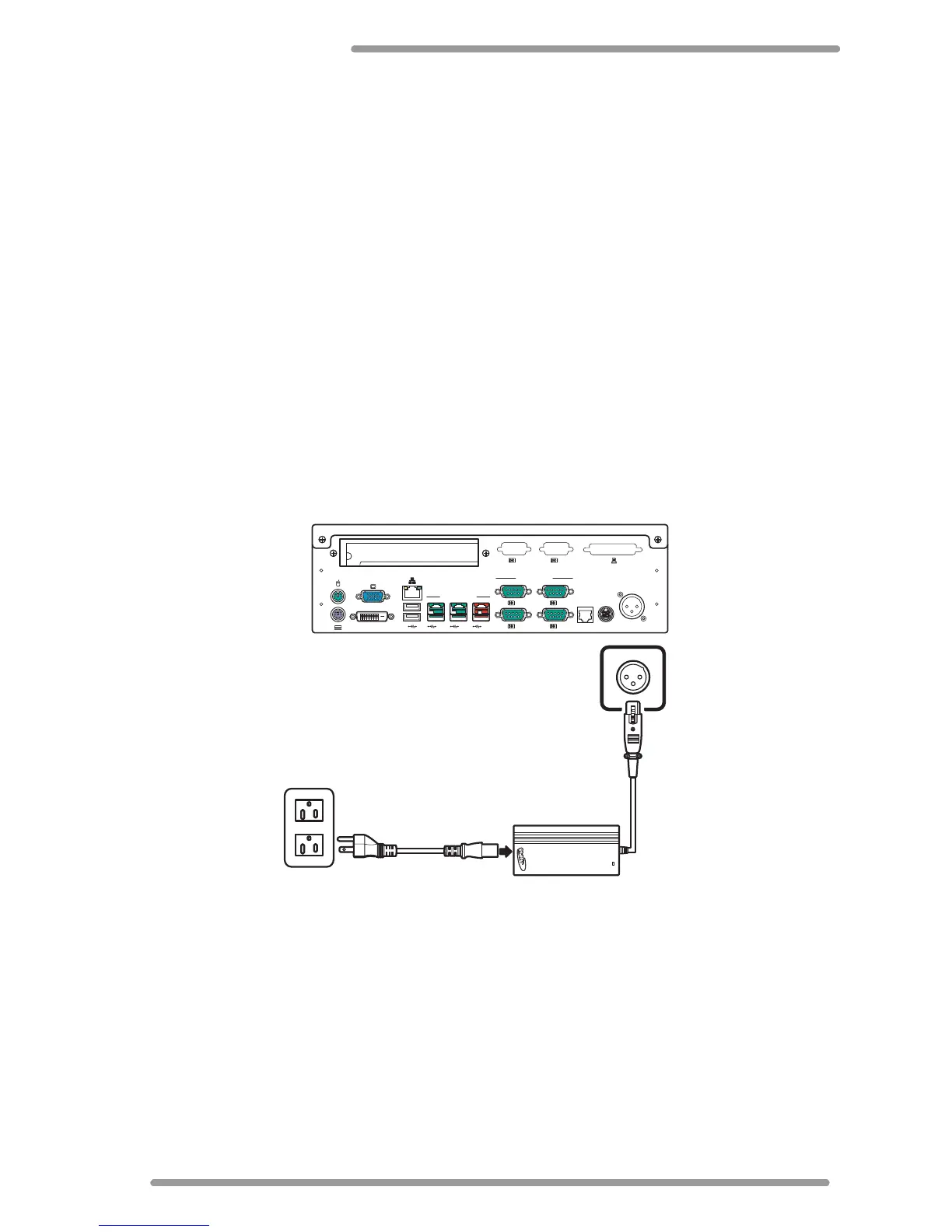

2.Connect the power cord to the power adapter as shown.
3.Connect the end of the power cord to an available wall outlet.
Connecting a Monitor
You can connect the DigiPoS Retail Active 8000 to a monitor using either one of the
following ports:
• VGA port
•DVI-D port
• 12V Powered USB port (see “Using the 12V Powered USB port” on page 6)
Note: You can only connect one monitor to the DigiPos Retail Active 8000 at a time.
3 1
4 2
6 5
12V12V 24V
CASH DRAWER
POWERED RS232
PCI
DVI
EXTERNAL
POWERED INPUT
24VDC
OUTPUT
POWERED USB
