DigiPos Retail Active 8000 User Manual

Making Connections
5

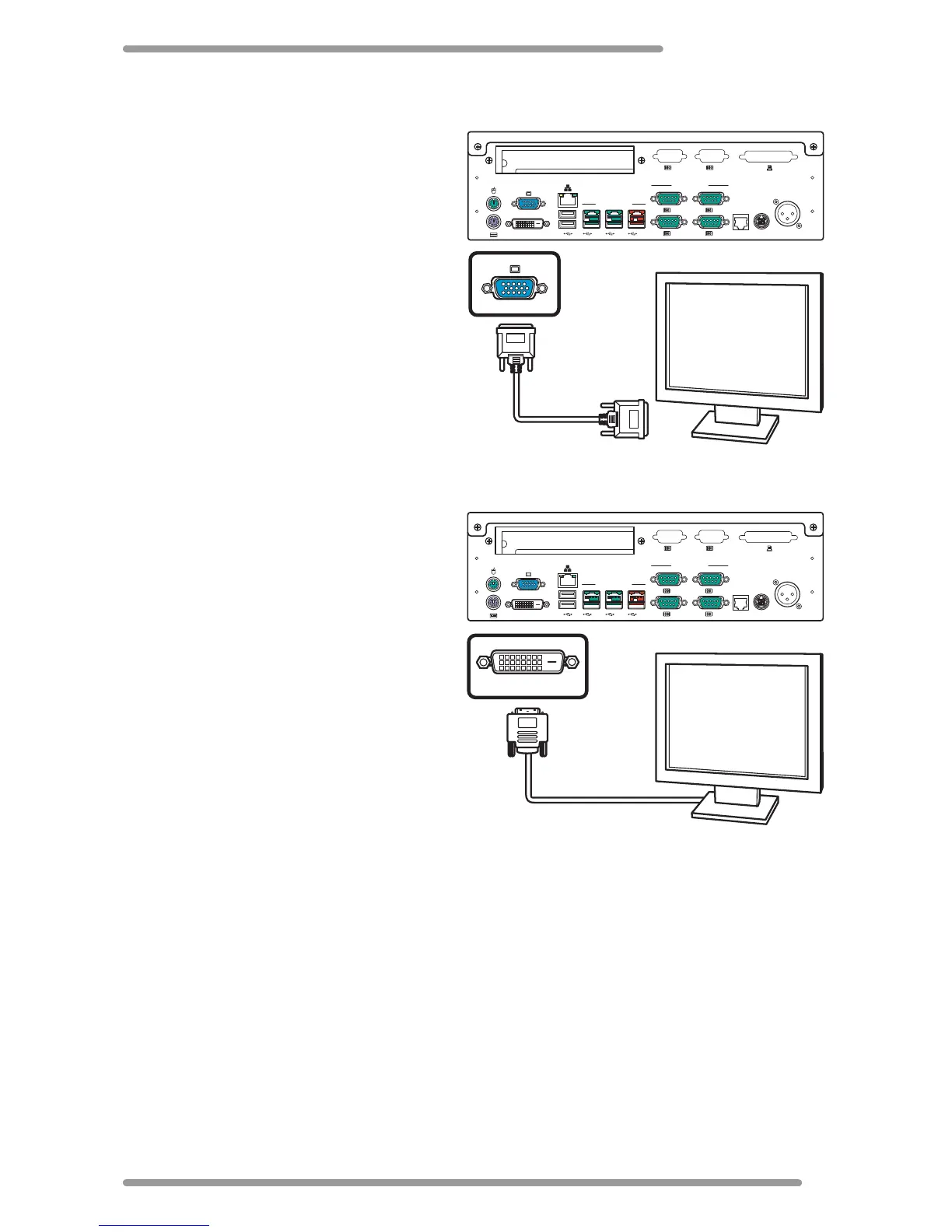

 Using the VGA port
You can connect the DigiPoS Retail Active
8000 to a monitor with a VGA (D-SUB 15
pin) cable. Connect one end of a VGA
cable to the VGA port on the rear side of
the DigiPoS Retail Active 8000. Connect
the other end to the VGA port on the
monitor.
 Using the DVI-D port
You can connect the DigiPoS Retail Active
8000 to a monitor with a DVI-D cable.
Connect one end of a DVI-D cable to the
DVI-D port on the rear side of the DigiPoS
Retail Active 8000. Connect the other
end to the DVI-D port on the monitor.
Connecting USB Powered Devices
The DigiPoS Retail Active 8000 provides a wide range of output voltages from its Powered
USB ports: 12V and 24V. These ports allow the connected devices to be powered directly
from your DigiPoS Retail Active 8000. You can also use these ports for standard USB data
transmission.
Note: To find out the required voltage of the USB peripheral device to be connected,
please refer to the device’s manual or contact your peripheral device dealer.
3 1
4 2
6 5
12V12V 24V
CASH DRAWER
POWERED RS232
PCI
DVI
EXTERNAL
POWERED INPUT
24VDC
OUTPUT
POWERED USB
3 1
4 2
6 5
12V12V 24V
CASH DRAWER
POWERED RS232
PCI
DVI
EXTERNAL
POWERED INPUT
24VDC
OUTPUT
POWERED USB
DVI
